ELECTRIC TILTING BRATT PAN
Download the image
BRATT PANS - MACROS 700

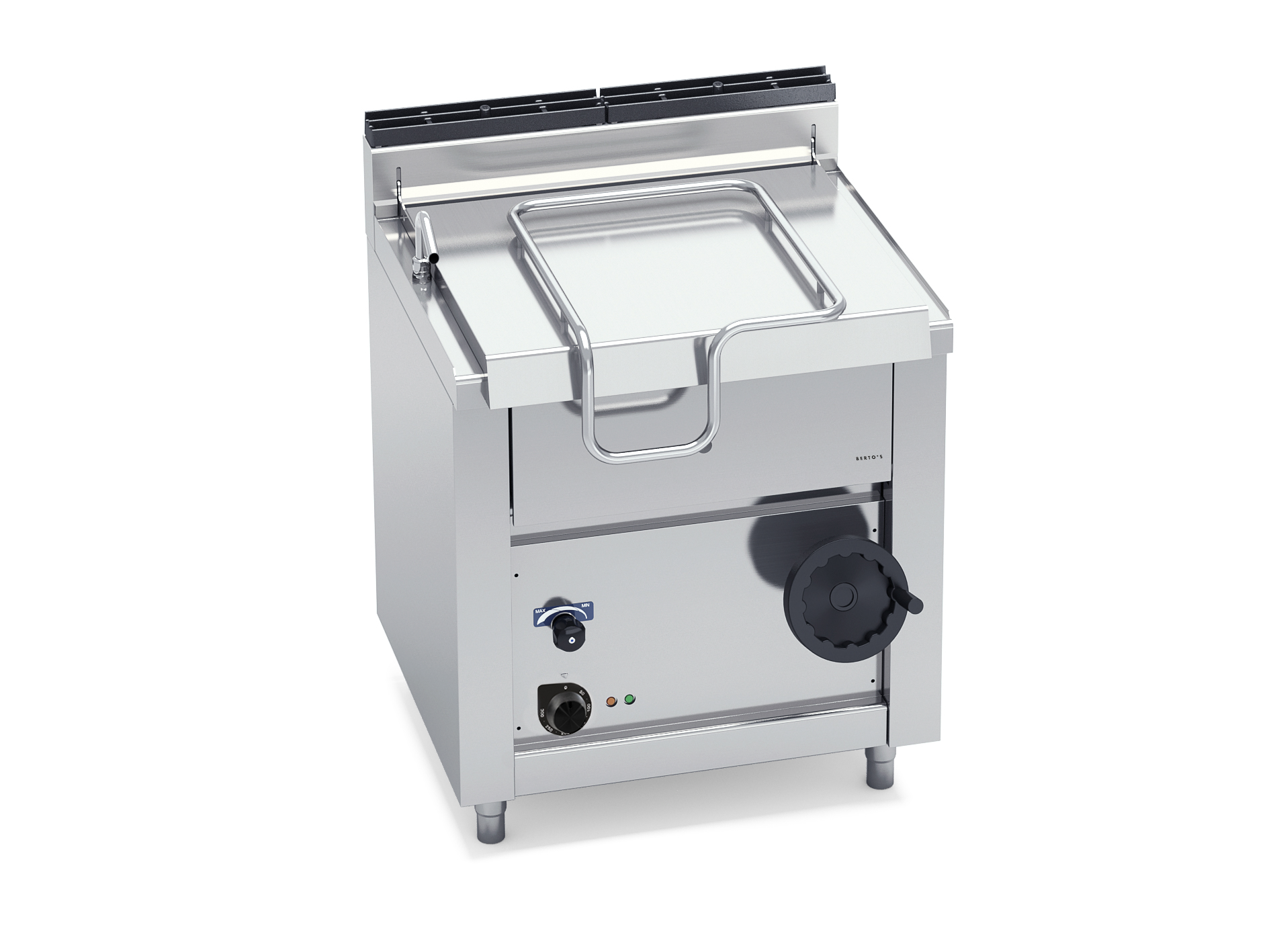

ELECTRIC TILTING BRATT PAN

Model E7BR8/I
Code 18822800
Cover with a condensation collection system fixed on a self-balanced hinge. Cooking tank with bottom and walls from AISI 304 stainless steel, manual tilt to 80°, with non-stick ceramic micro-sphere finishing and rounded edges. Steel tank bottom of 10 mm thickness, externally welded to provide better thermal conductivity. Uniform heat as a result of the heating elements being in direct contact with the base.
Power supply controlled by switch and thermostat (100° C - 300° C). Safety thermostat with manual restart. Tension and operation lights. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 60
Details
total electric kW 9
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 900
Weight 112
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 122
Package volume 0.84

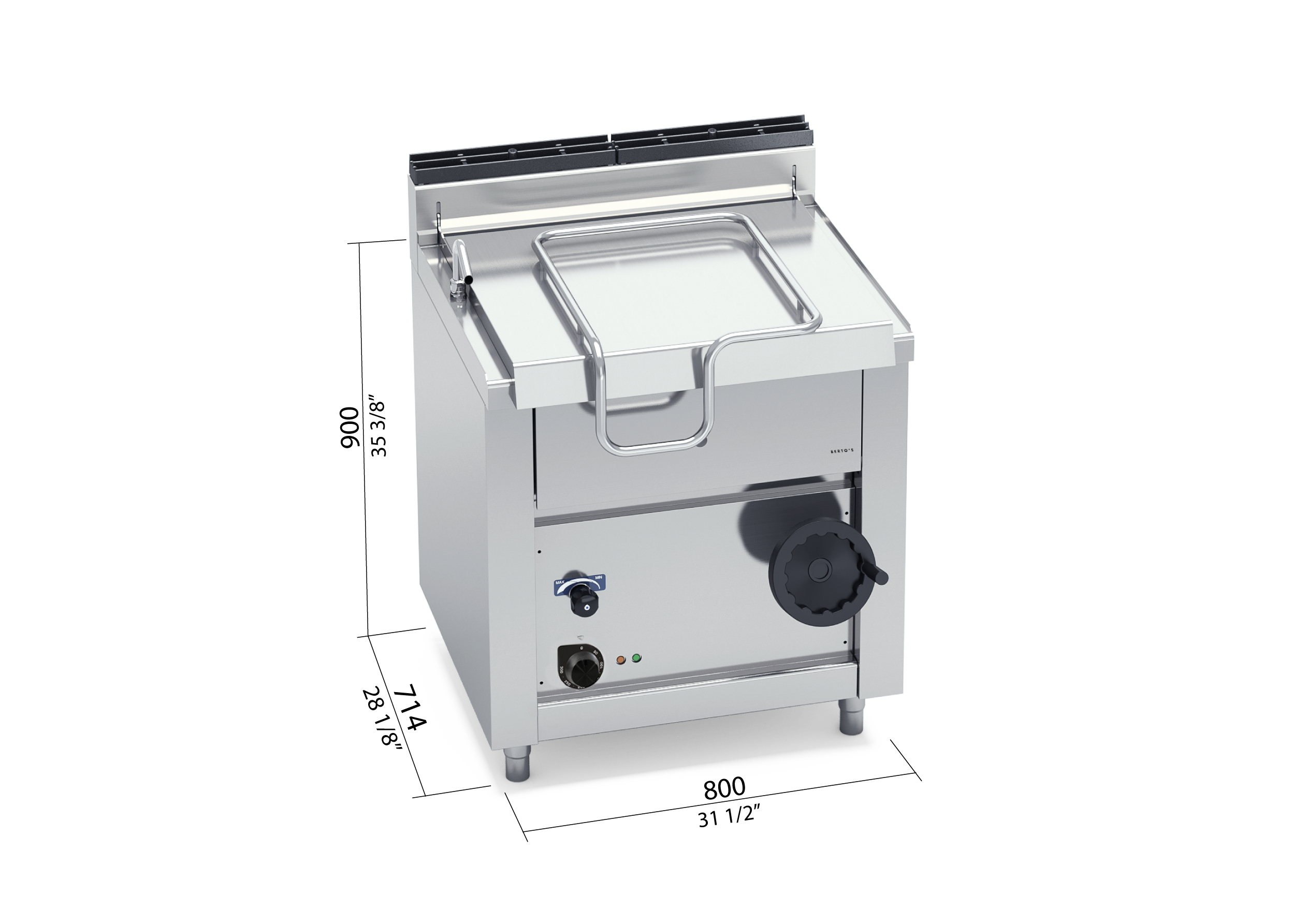

Dimensions

Dimensions
