80 L GAS TILTING BRATT PANS MOTORIZED TILTING
Download the image
BRATT PANS - MAXIMA 900

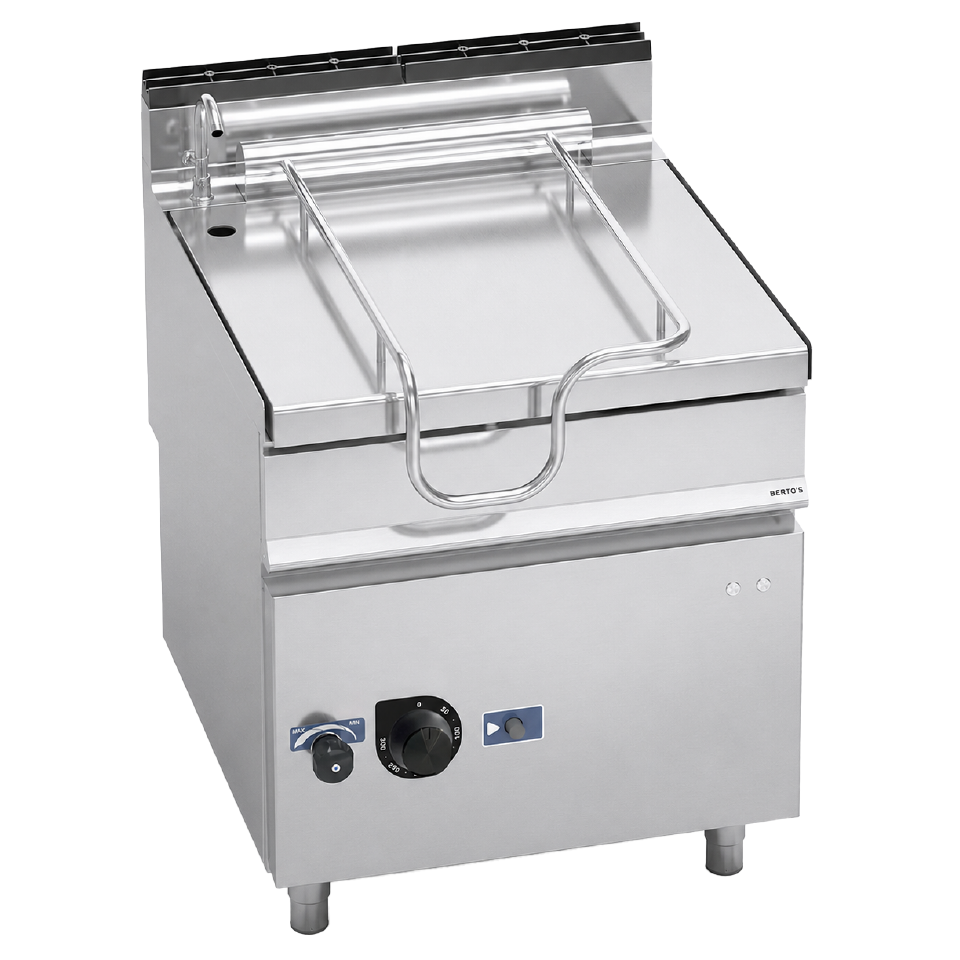

80 L GAS TILTING BRATT PANS MOTORIZED TILTING

Model G9BR8/I+RM
Code 20821700
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. Radiating steel tank bottom with 10 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Control with a large precision thermostatic valve with temperature regulation from 100°C to 300°C.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 20
total electric kW 0.0006
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 900
Weight 164
Volume 0.65
Package
Package width 860
Package depth 1080
Package height 1160
Package weight 184
Package volume 1.08

Dimensions

Dimensions
