4 SQUARE PLATE ELECTRIC STOVE WITH 2/1 ELECTRIC OVEN
Download the image
ELECTRIC COOKERS - MACROS 700

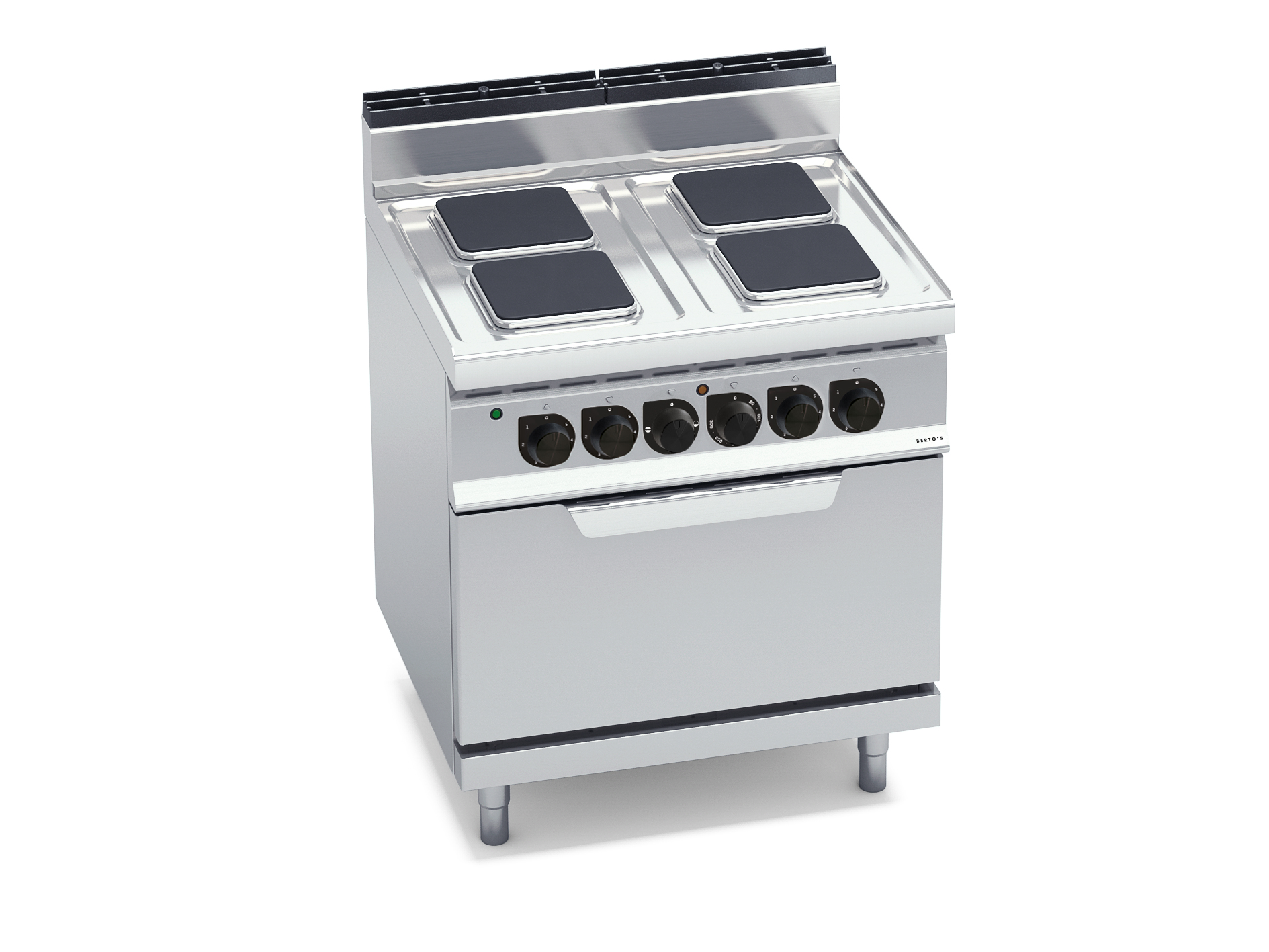

4 SQUARE PLATE ELECTRIC STOVE WITH 2/1 ELECTRIC OVEN

Model E7PQ4+FE
Code 18724500
Worktop and front panels of AISI 304 stainless steel. Pressed top in a unique watertight piece. Cast iron plates with safety thermostat and 6-position selector that activates 6 different concentric power zones. Voltage light and power light. Electric static oven completely made of STAINLESS STEEL with 4 levels for grids/pans. Grill with salamander function on the upper side and a thermostat for the correct regulation of temperature from 50° a 270° C. Pilot light and temperature indicator light. Pressed door and counter door made of AISI 304 steel. High resistance door handle of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: no. 1 anti-tilting oven grid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 7.5
Details
total electric kW 17.9
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 900
Weight 106
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 116
Package volume 0.84

Dimensions

Dimensions
