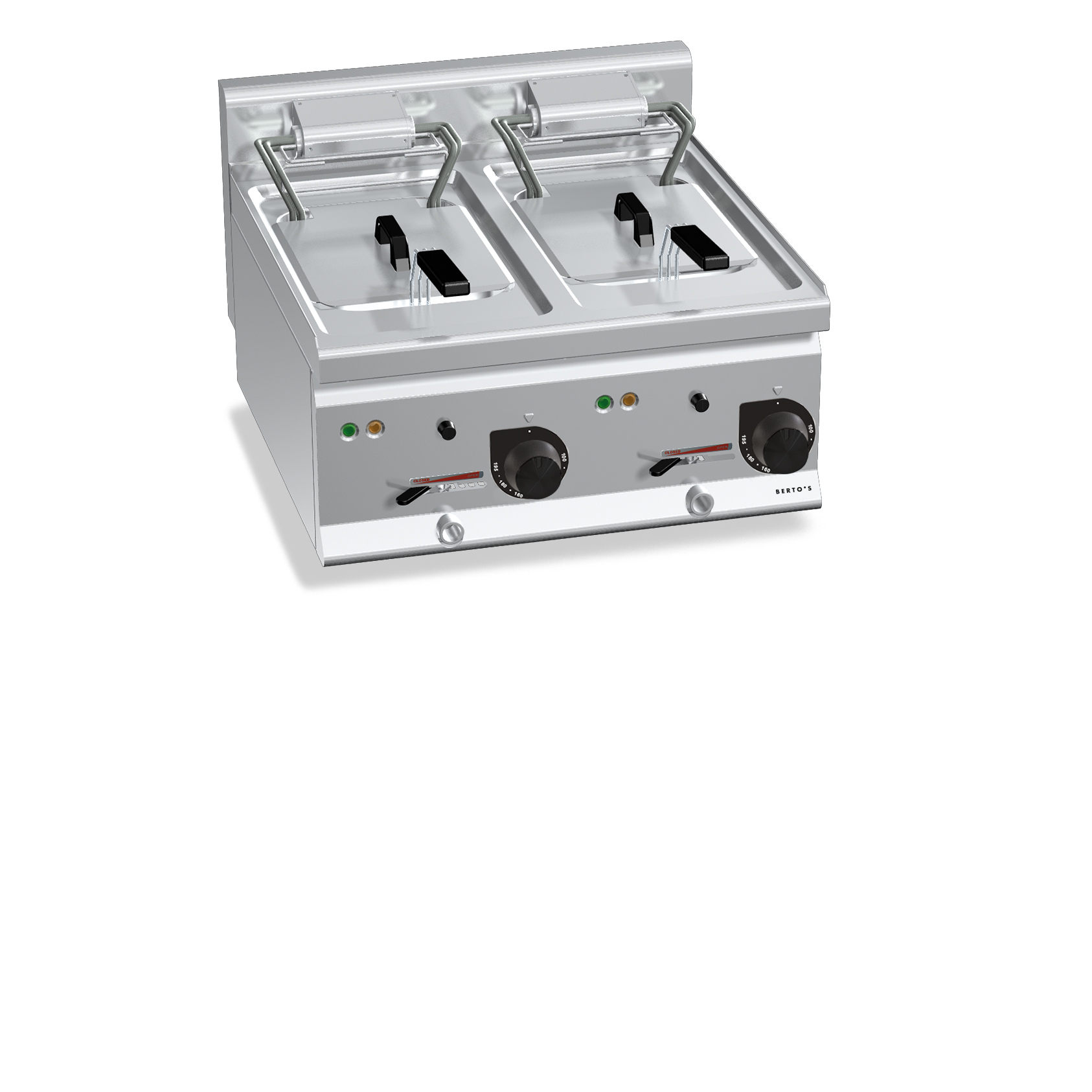

ELECTRIC FRYER (COUNTER TOP) - SINGLE TANK 10 + 10 L

Model E6F10-6B
Code 21502000
Basin bottom made in AISI 304 STAINLESS STEEL. Two pressed and rounded basins equipped with independent controls and long-lasting special rotating heating elements made in Incoloy stainless steel; they can reach the operational temperature in a very short time, increasing oil savings up to 60%. The frying system maintains the organoleptic characteristics of the oil, which allows for a healthier production and, furthermore, limits the required oil changes giving further savings. System to rotate the heating elements to make clearing operation easier. Control of set temperature up to 190°C by thermostat and safety thermostat with manual restart. Average frying time is 5 minutes. Pre-heating time is 6 minutes (from 20 to 190°C). Maximum output 50 kg/h (E6F10-6B, E6F10-6M), 60 kg/h (E6F10-6BS, E6F10-6MS). Adjustable feet (model with cabinet).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 10+10
Details
total electric kW 12
Electrical voltage 380-415 V3
Measurements
Width 600
Depth 600
Height 290
Weight 28
Volume 0.1
Package
Package width 710
Package depth 680
Package height 680
Package weight 41
Package volume 0.33

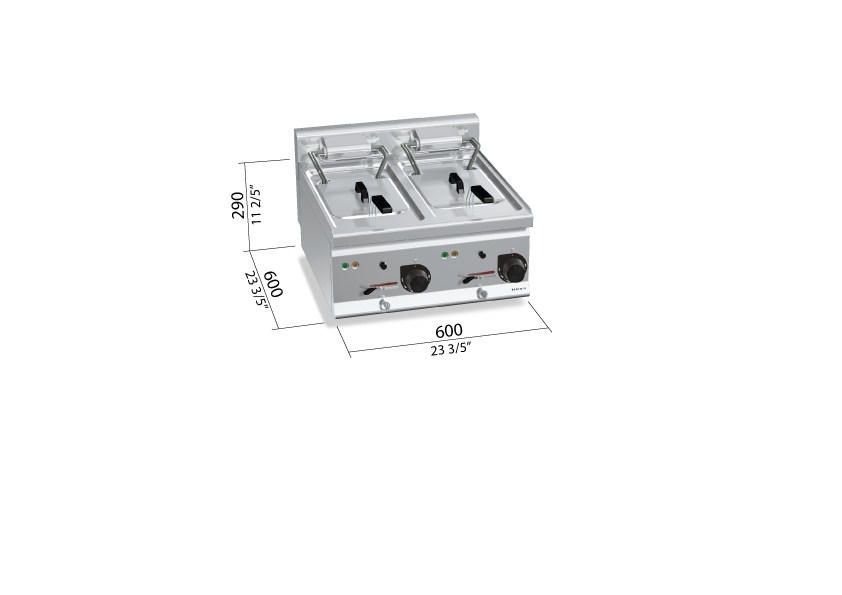

Dimensions

Dimensions

All products of the line PLUS 600

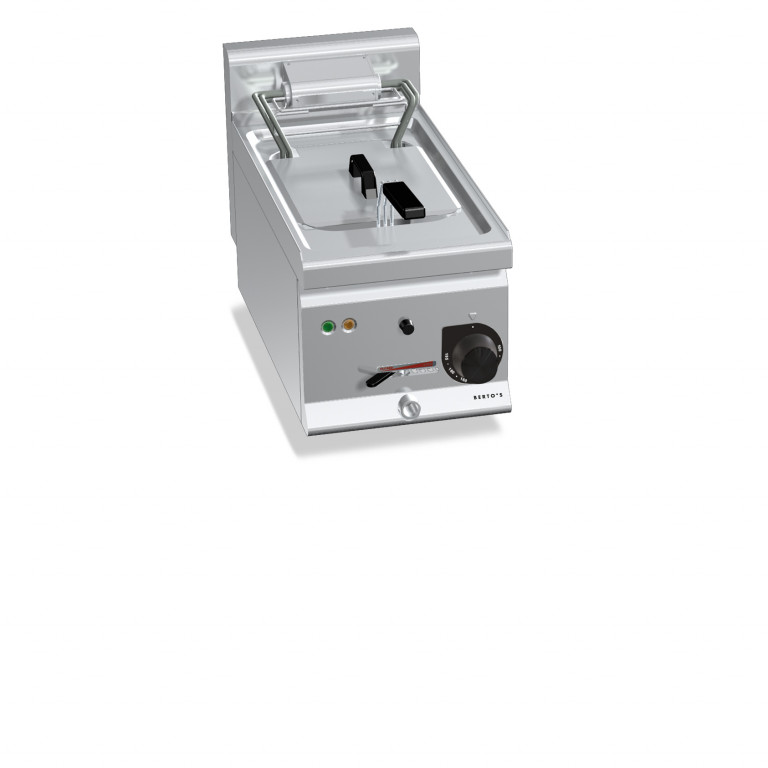

ELECTRIC FRYER (COUNTER TOP) - SINGLE TANK 10 L
