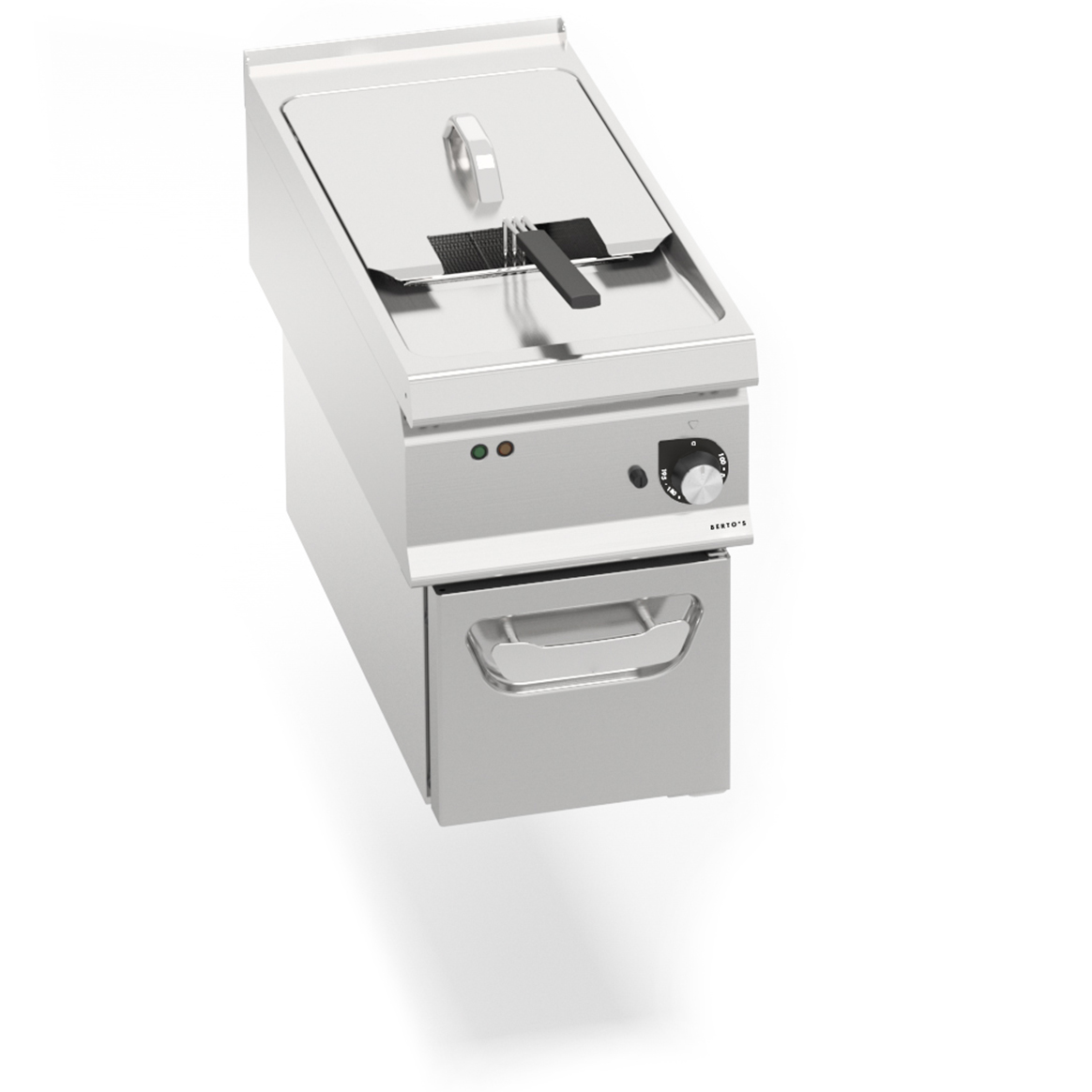

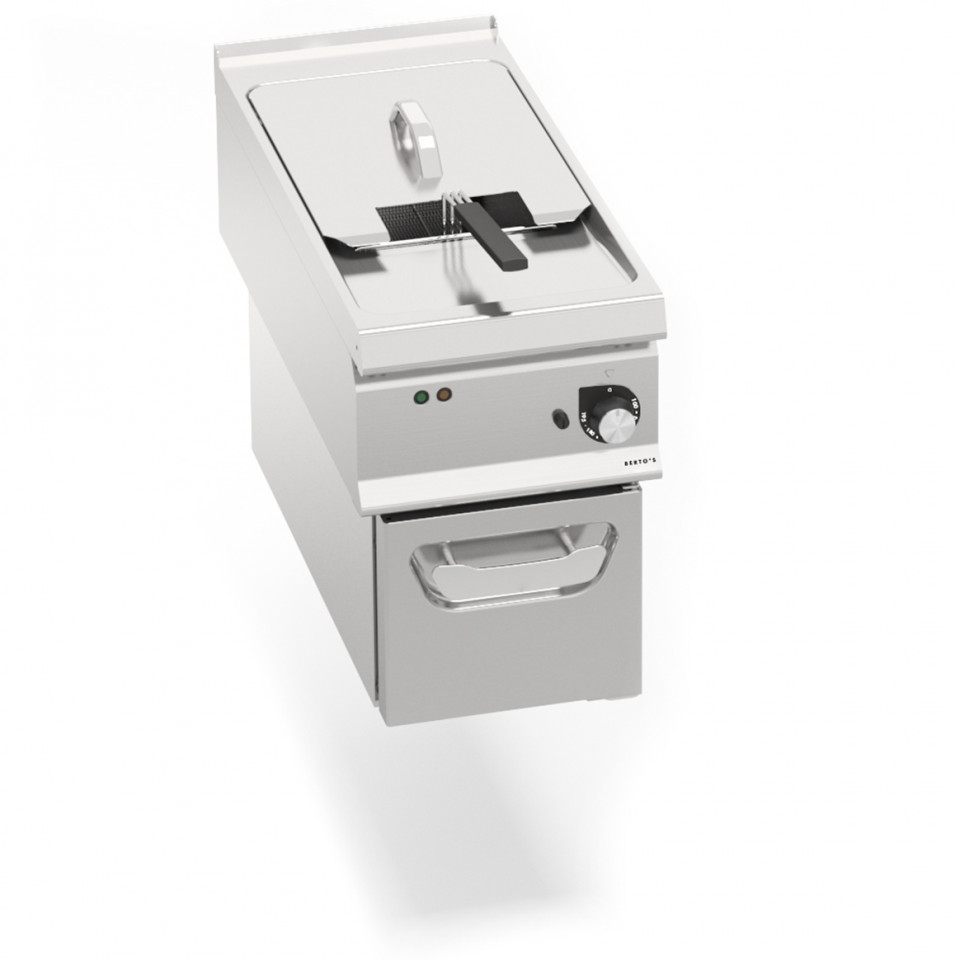

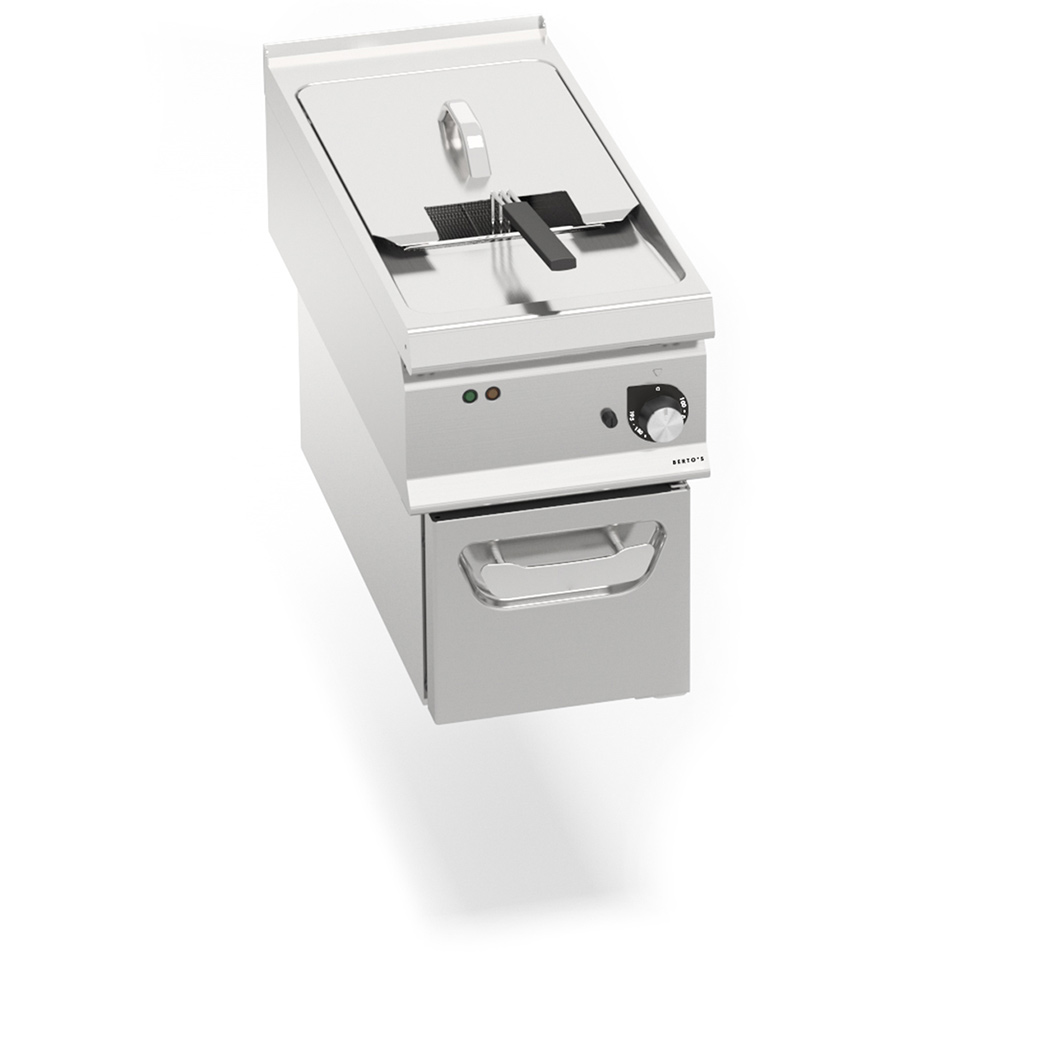

ELECTRIC FRYER 22 L
Download the image
ELECTRIC FRYERS - S900

ELECTRIC FRYER 22 L

Model LXE9F22-4S
Code 13505400
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Incoloy stainless steel resistances positioned directly in the tank that can be tilted vertically to make cleaning operations easier. Safety device to cut power supply with resistances in vertical position. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the resistances to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Adjustable thermostat up to 190° C with control facility, safety thermostat and manual restart. Spherical draining tap positioned in the compartment controlled by an athermic handle.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 22
Details
total electric kW 22
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 900
Height 580
Weight 50
Volume 0.21
Package
Package width 480
Package depth 1080
Package height 1250
Package weight 62
Package volume 0.65

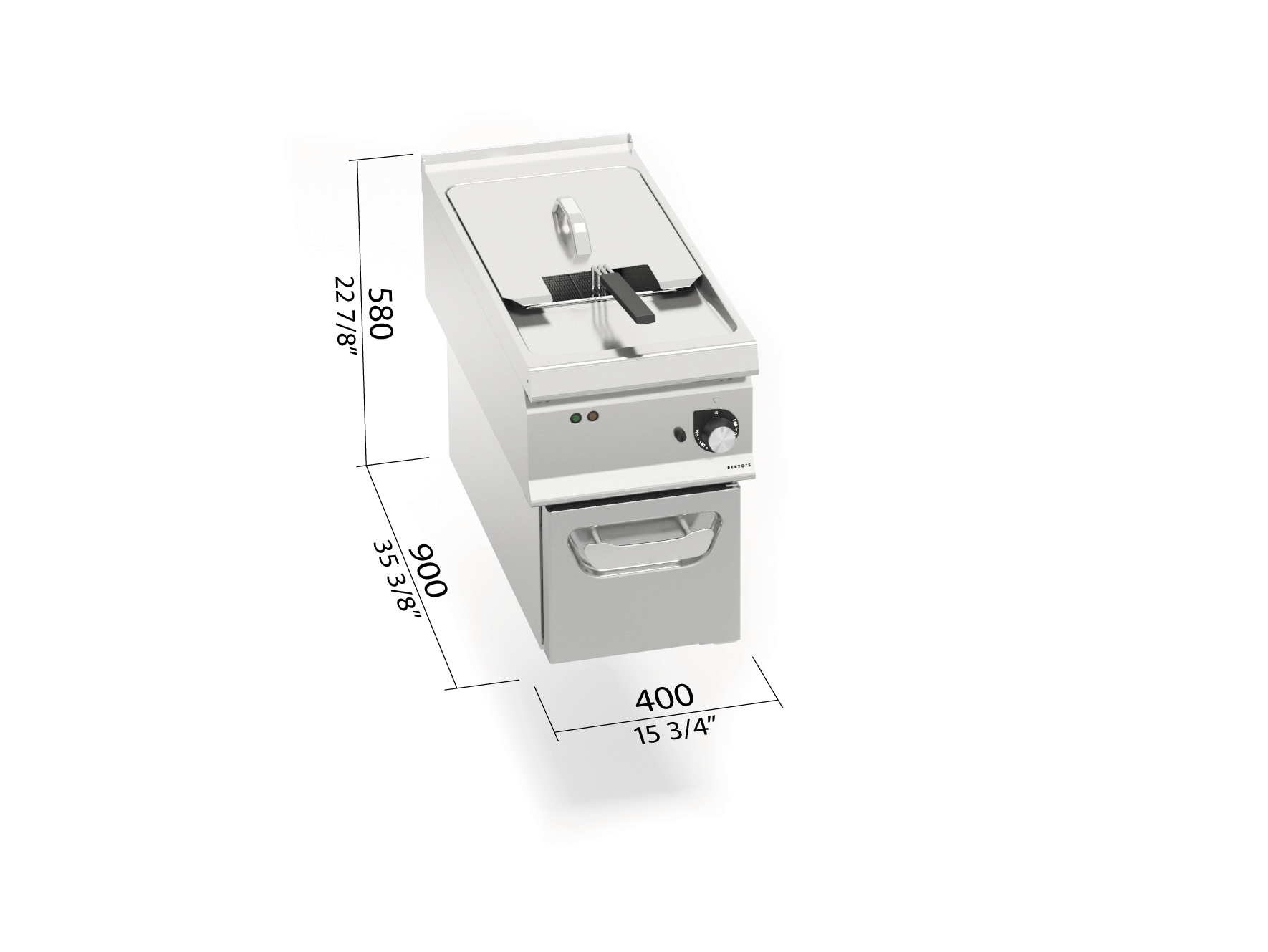

Dimensions

Dimensions
