8 BURNER GAS COOKER ON 2 2/1 GAS OVEN
Download the image
GAS COOKERS - MAXIMA 900

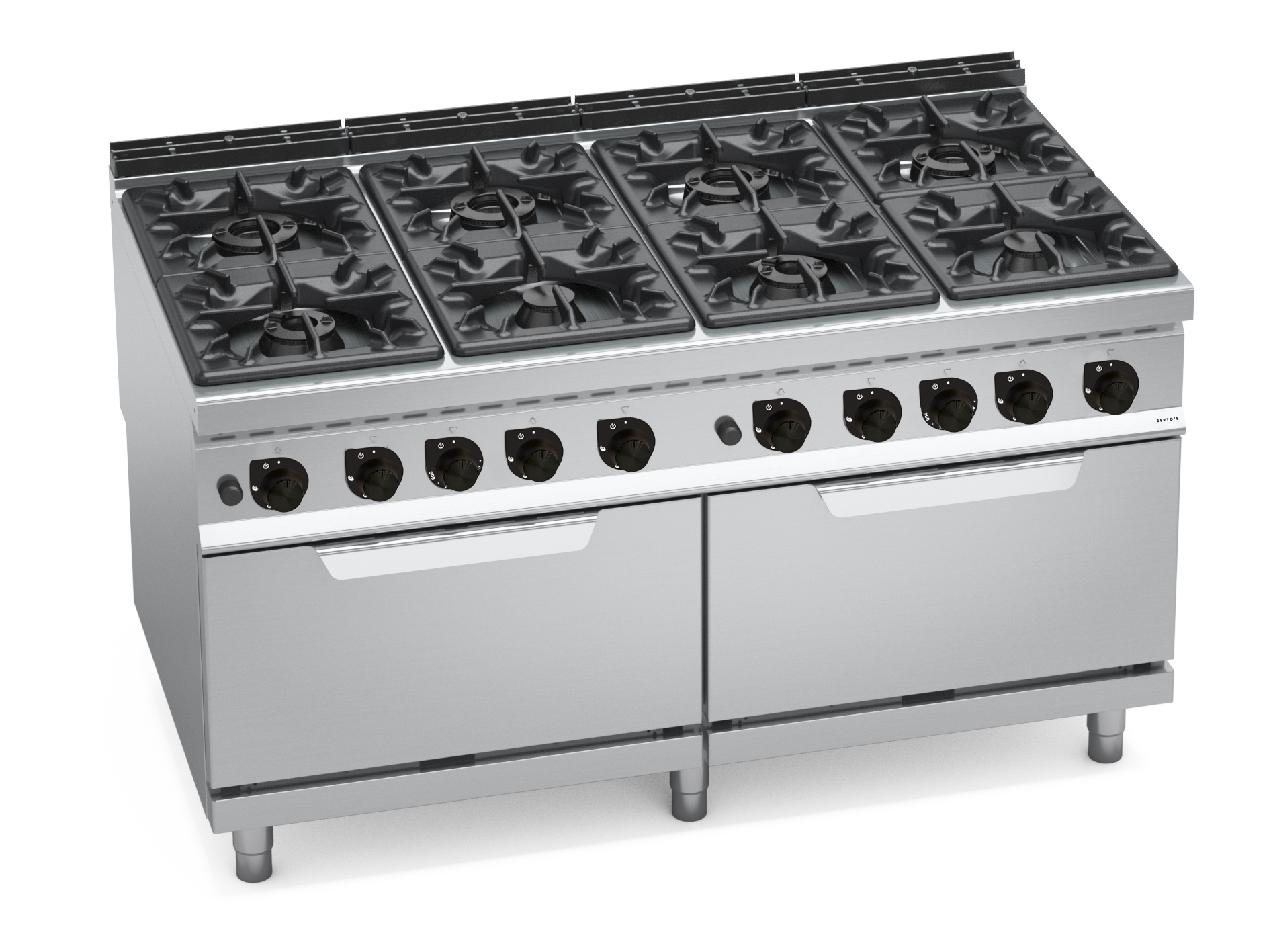

8 BURNER GAS COOKER ON 2 2/1 GAS OVEN

Model G9F8+2FG
Code 20716000
Worktop and front panels made of AISI 304 stainless steel. Inside AISI 430. Cast iron burners with thermocouple safety valve and protected pilot flame with regulation up to 3,5 kW on the 80 mm version, regulation up to 7 kW on the 108 mm version and regulation up to 12 kW on the 130 mm version.
Gas oven with flame burner positioned under the enamelled steel base and adjustable thermostat from 160 to 280 °C. Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Internal chimney from stainless steel and burners support from AISI 430 stainless steel. High resistance handle from AISI 304 stainless steel of 20/10 thickness. Pressed trays from AISI 304 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 7.8 X 2
Details
total gas kW 84.6

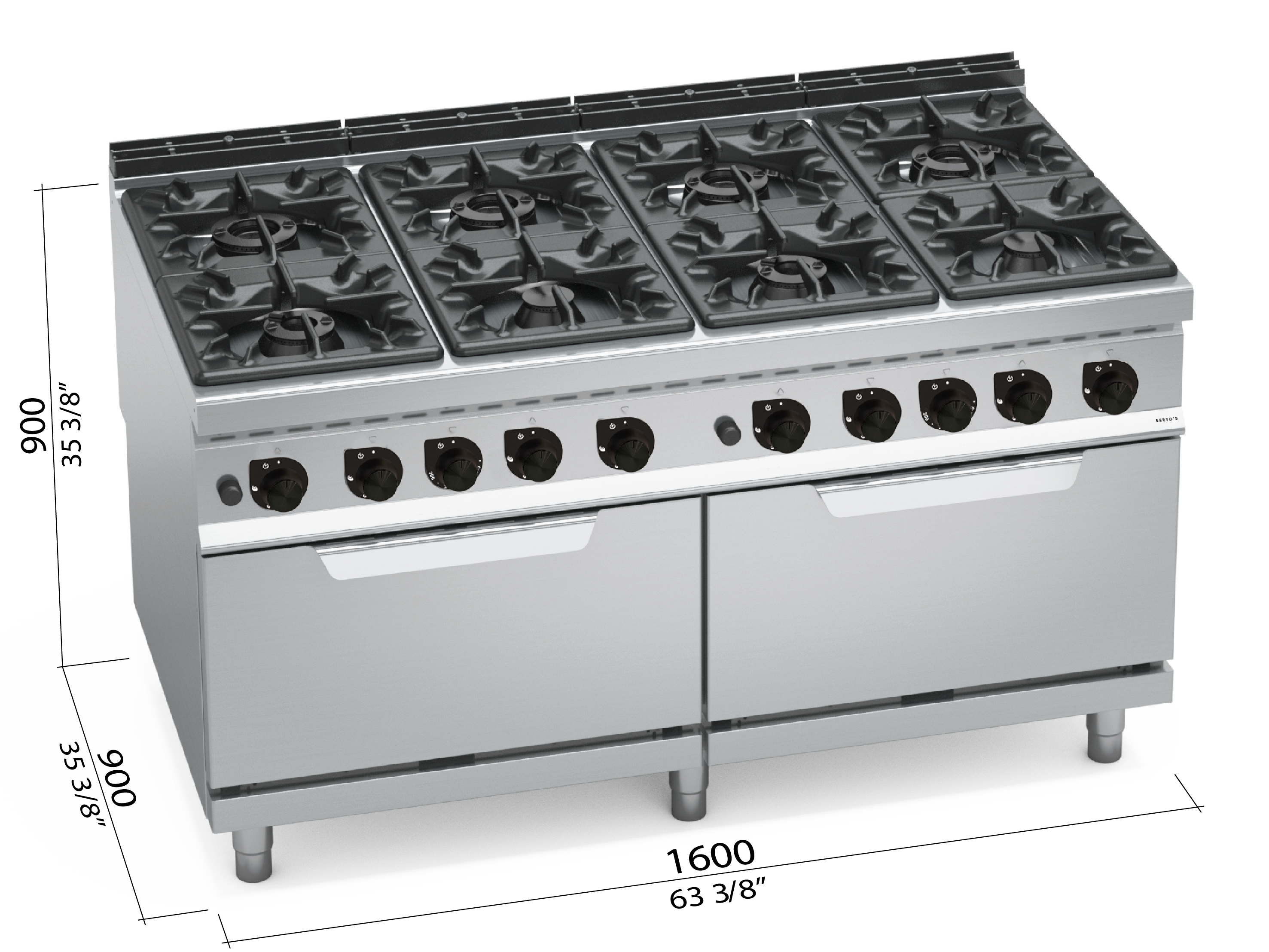

Measurements
Width 1600
Depth 900
Height 900
Weight 260
Volume 1.3
Package
Package width 1690
Package depth 1070
Package height 1160
Package weight 293
Package volume 2.1

Dimensions

Dimensions
