4-BURNER STOVE WITH 2/1 GN GAS OVEN
Download the image
GAS COOKERS - S700

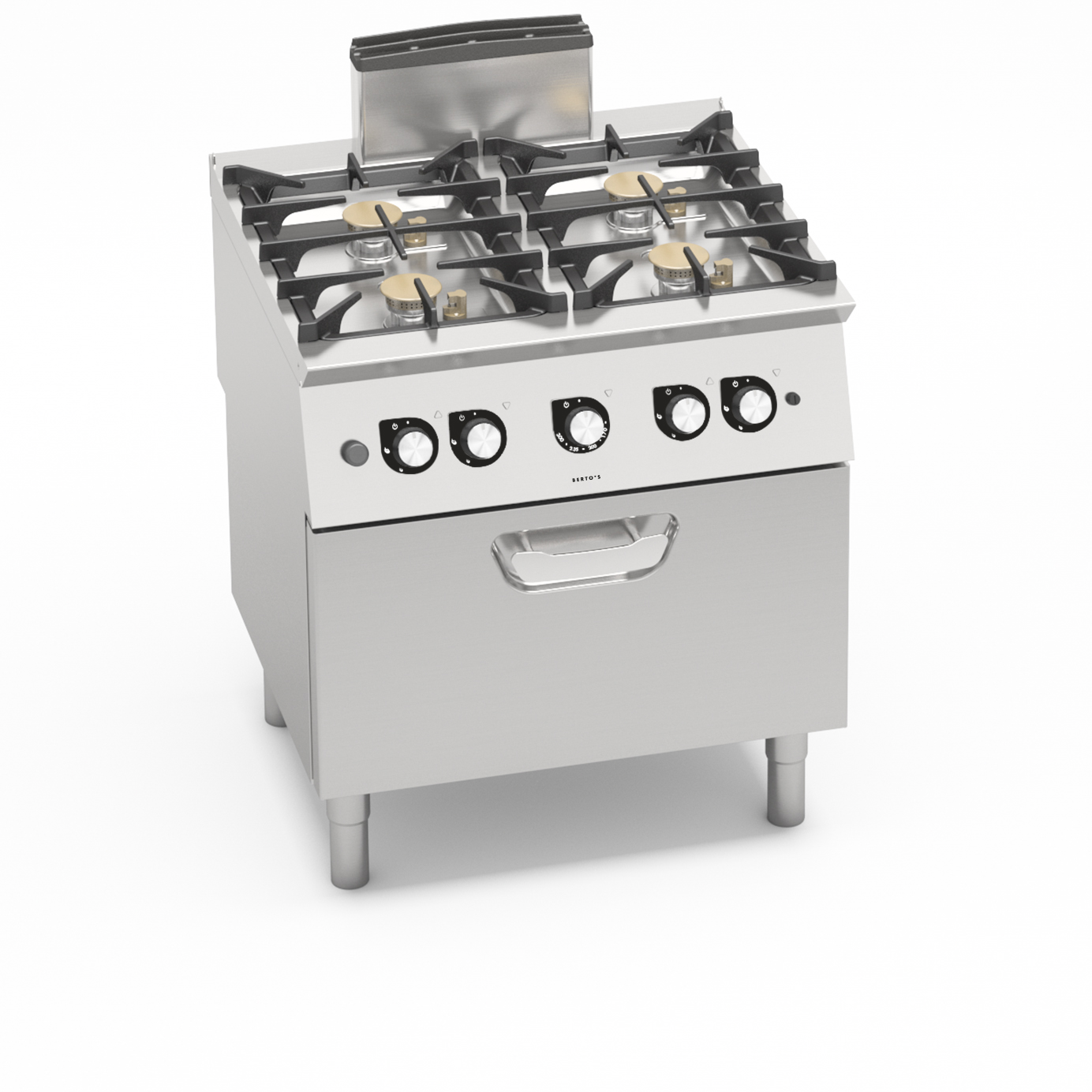

4-BURNER STOVE WITH 2/1 GN GAS OVEN

Model SG7F4+FG
Code 07704000
Worktop in AISI 304 stainless steel with a 20/10 thickness, front and side panels in AISI 304 stainless steel, Scotch Brite finishing.
Cast iron burners and brass burner cap, attached with a waterproof seal to the deep drawn  worktop in AISI 304. Guaranteed for life, activated by a valve cock. Models equipped with safety thermocouple and burner pilot flame protected by a steel cap designed for easy cleaning and maintenance.
Gas oven with self-stabilized flame burner positioned under the steel ribbed base and adjustable thermostat from 160° to 280°.
Oven chamber from AISI 430 with 4-level supports and internal, pressed and ribbed door from stainless steel. Stainless steel internal chimney and burner from AISI 304 stainless steel. AISI 304, 20/10 thick stainless steel strong door handles. Adjustable feet. Standard version: 1 anti-tilt oven shelf.
Optional accessories: two thermostats to independently adjust the two shelves’ temperature.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type G
Oven power in kW 7.8
Details
total gas kW 31.8
Measurements
Width 800
Depth 730
Height 900
Weight 104
Volume 0.53
Package
Package width 880
Package depth 800
Package height 1210
Package weight 120
Package volume 0.85

Dimensions

Dimensions
