SOLID TOP + 4 OPEN BURNERS WITH CABINET
Download the image
GAS SOLID TOP - MACROS 700

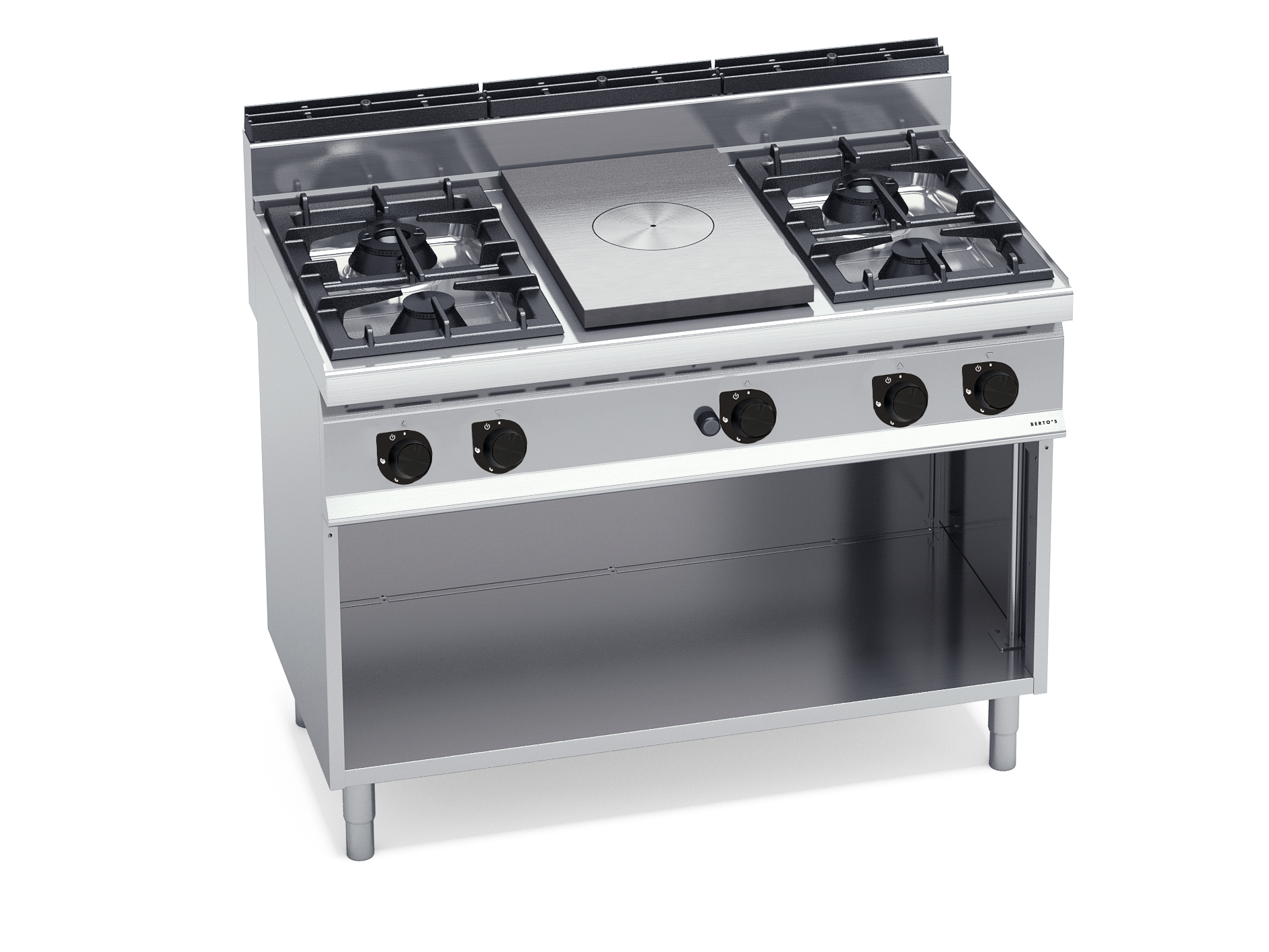

SOLID TOP + 4 OPEN BURNERS WITH CABINET

Model G7T4P4FM
Code 18876000
Worktop and front panels made of AISI 304 stainless steel. Solid steel gas top of high resistance and heat distribution in differentiated thermal areas: maximum temperature at the centre, decreasing towards the edges. 7 kW central burner with optimized combustion activated by a valve tap with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with silicone protection. Life-guaranteed nickelplated cast iron high power burners with single or double crown activated by a valve tap with safety thermocouple and pilot light. Cast iron grills. The trays and the burner body are completely removable to enable maintenance and cleaning to be carried out easily and efficiently. Adjustable feet (cabinet version).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total gas kW 28
Measurements
Width 1200
Depth 714
Height 900
Weight 110
Volume 0.77
Package
Package width 1290
Package depth 800
Package height 1220
Package weight 125
Package volume 1.23

Dimensions

Dimensions
