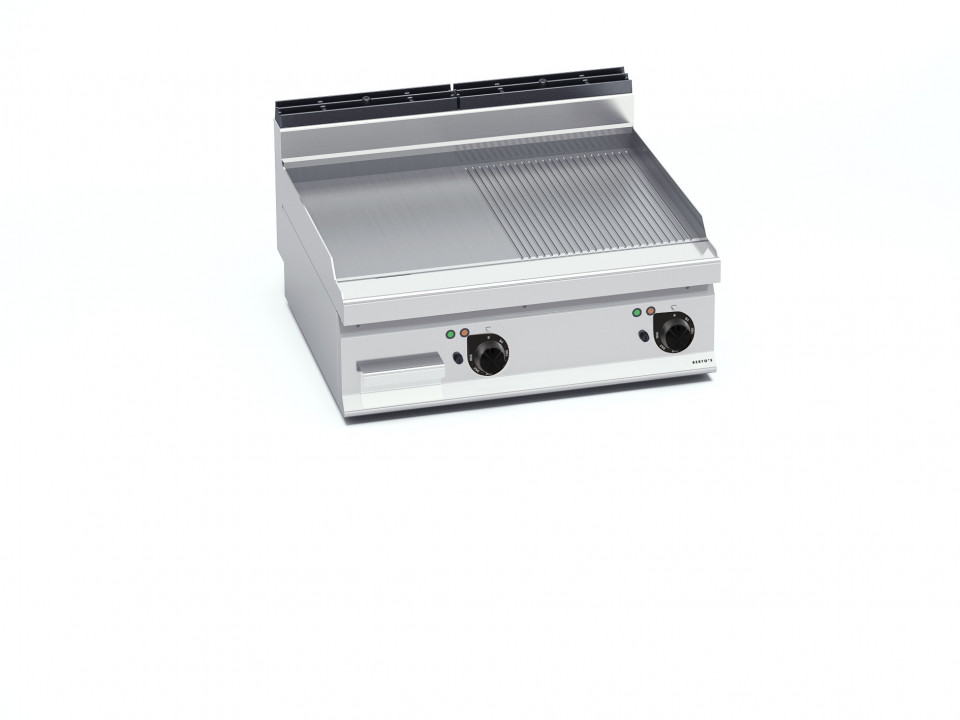

SMOOTH/GROOVED ELECTRIC GRIDDLE (COUNTER TOP)
Download the image
GRIDDLES - MACROS 700

SMOOTH/GROOVED ELECTRIC GRIDDLE (COUNTER TOP)

Model E7FM8BP-2
Code 18405100
Worktop and front panels from AISI 304 stainless steel. Incoloy steel heating elements placed under the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50° C to 270°C. Pilot light and temperature indicator light. Half grooved and half smooth satin finish steel plate occupying the entire worktop surface with flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Slightly inclined cooking surface with a large hole to allow drainage of liquid into an appropriate waste container. Adjustable feet (cabinet version).
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 9.6
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 290
Weight 71
Volume 0.17
Package
Package width 880
Package depth 0.79
Package height 620
Package weight 77
Package volume 0.43

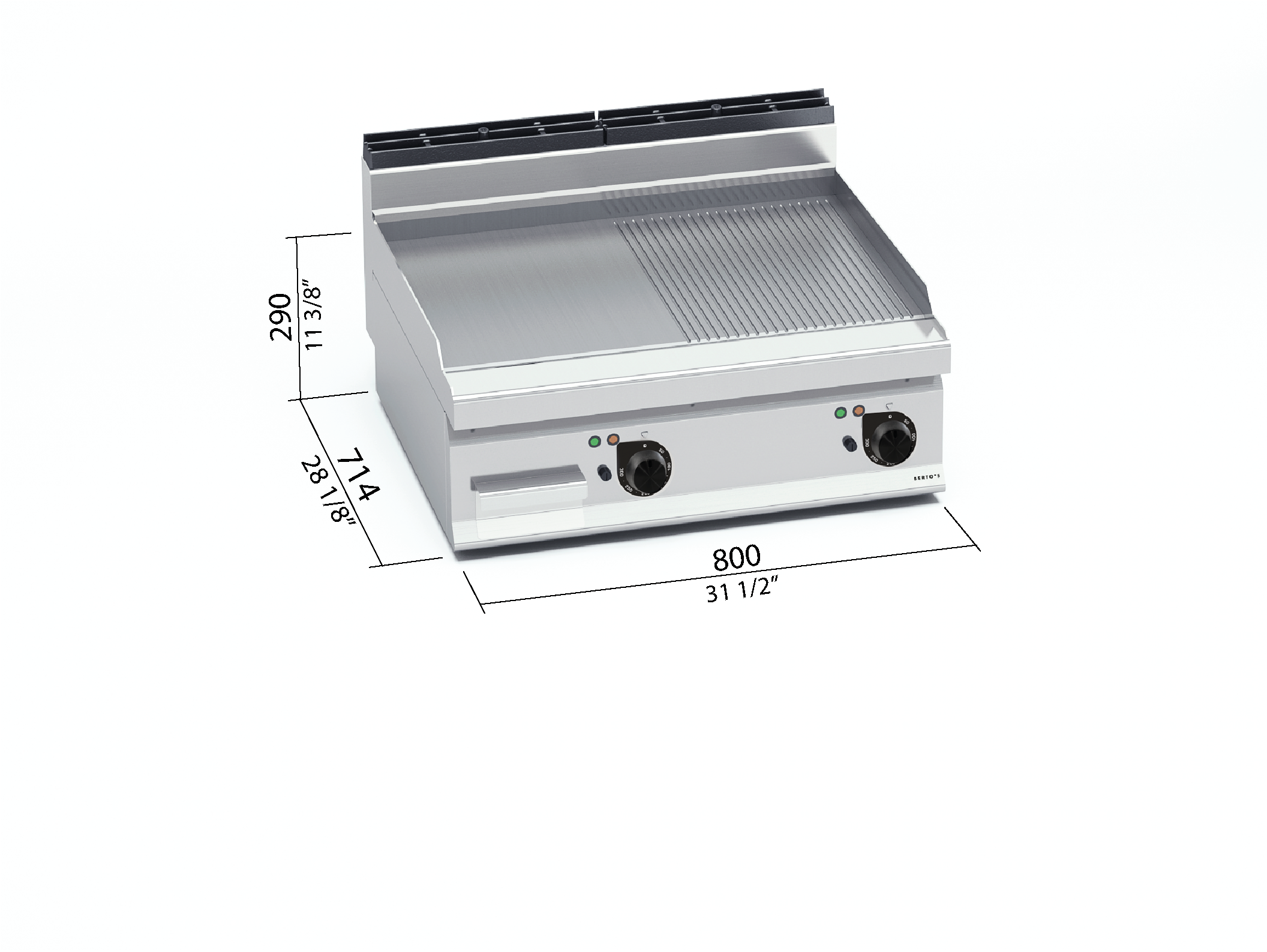

Dimensions

Dimensions
