4-ZONE INFRARED TOP WITH 2/1 ELECTRIC OVEN
Download the image
INFRARED AND INDUCTION COOKERS - MACROS 700

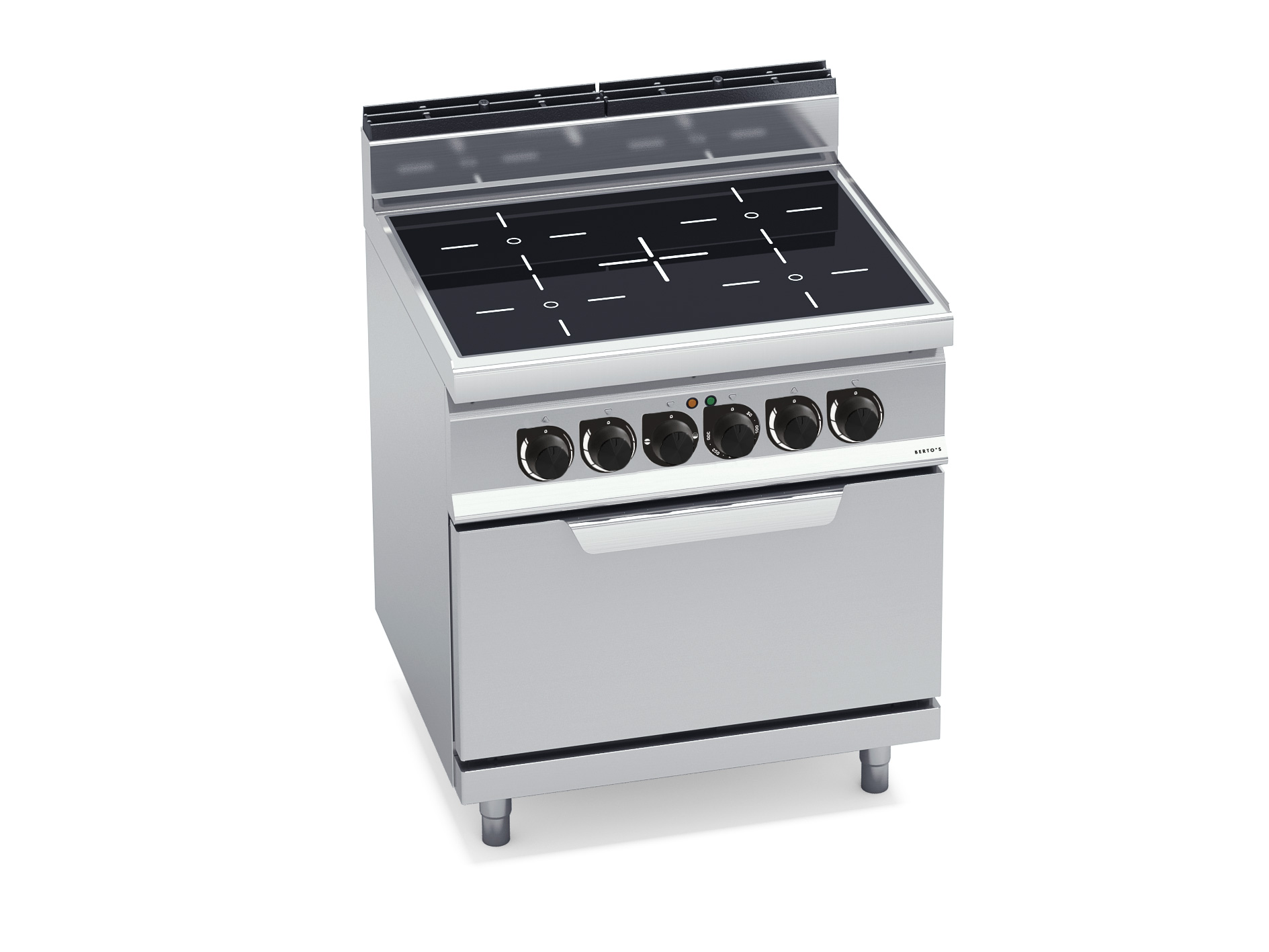

4-ZONE INFRARED TOP WITH 2/1 ELECTRIC OVEN

Model E7P4/VTR+FE
Code 18734000
Worktop and front panels made of AISI 304 stainless steel. Pyroceram top with 6 mm thickness. Electrical resistances able to reach a high temperature (500° C) heating the cooking top by irradiation. The zones are marked by proper serigraphy that allow the proper positioning of the pans. After switching off each zone, a light signals residual heat up to 60° C to safe-guard the operator. Electric static oven made completely of STAINLESS STEEL with 4 levels for 2/1 GN grids/pans. Grill with salamander function on the upper side and a thermostat for correct temperature regulation from 50° to 270° C. Pilot light and temperature indicator light. Pressed door and counter door made of AISI 304 stainless steel of 20/10 thickness. High resistance door handle of AISI 304 steel of 20/10 thickness. Adjustable feet. Standard: no. 1 anti-tilting oven grid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Oven
Oven type E
Oven power in kW 7.5
Details
total electric kW 20.3
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 714
Height 900
Weight 100
Volume 0.51
Package
Package width 880
Package depth 790
Package height 1210
Package weight 110
Package volume 0.84

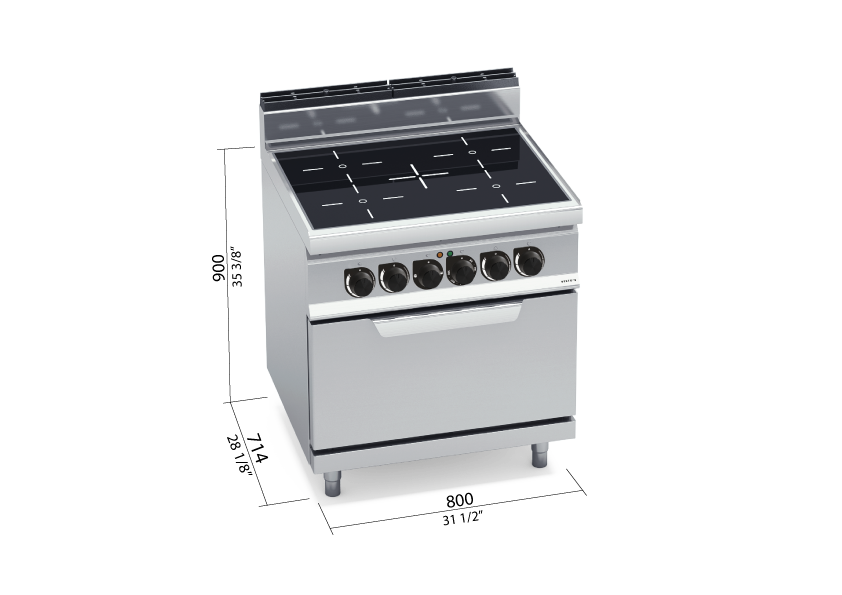

Dimensions

Dimensions
