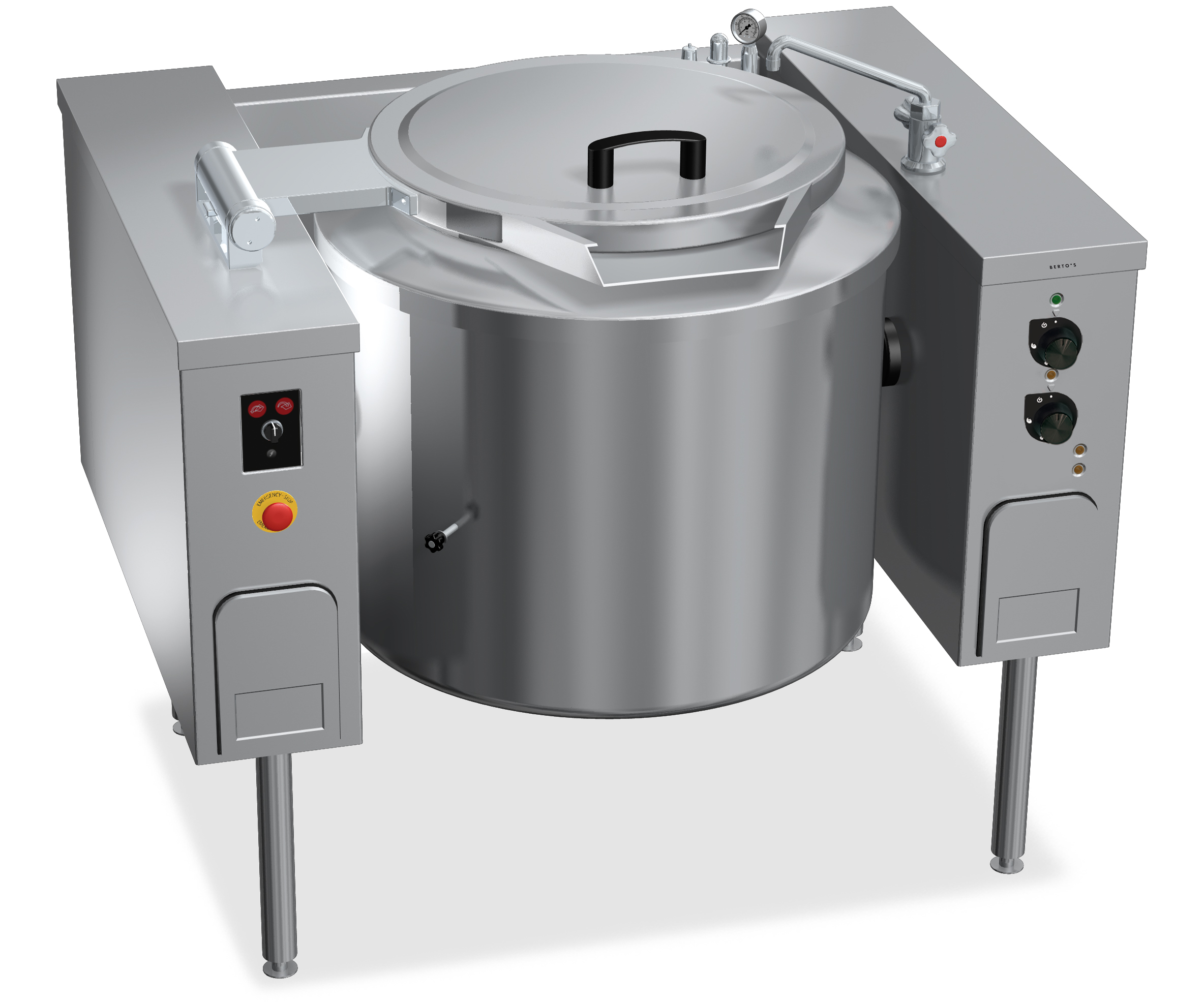

100 L EL. TILTING BOILING PAN WITH INDIRECT HEATING
Download the image
TILTING BOILING PANS - MAXIMA 900

100 L EL. TILTING BOILING PAN WITH INDIRECT HEATING

Model E9P10IR
Code 20814000
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Cooking interior in 20 to 40/10 AISI 316 stainless steel, with excellent resistance to acidy products. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (1.5 bar) generated inside the jacket through armored resistance from Incoloy-800 alloy equipped with a safety thermostat. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and jacket. Mechanical gauge with a jacket pressure indicator. Power supply regulated by a 3-position switch. Separate control for temperature regulation. Pilot light and temperature indicator light. Motorised tilting around the front axis. The structure is in 30/10 stainless steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 100
Details
total electric kW 16
Electrical voltage 380-415 V3
Measurements
Width 1200
Depth 1085
Height 1090
Weight 237
Volume 1.42
Package
Package width 1750
Package depth 1450
Package height 1450
Package weight 303
Package volume 3.68

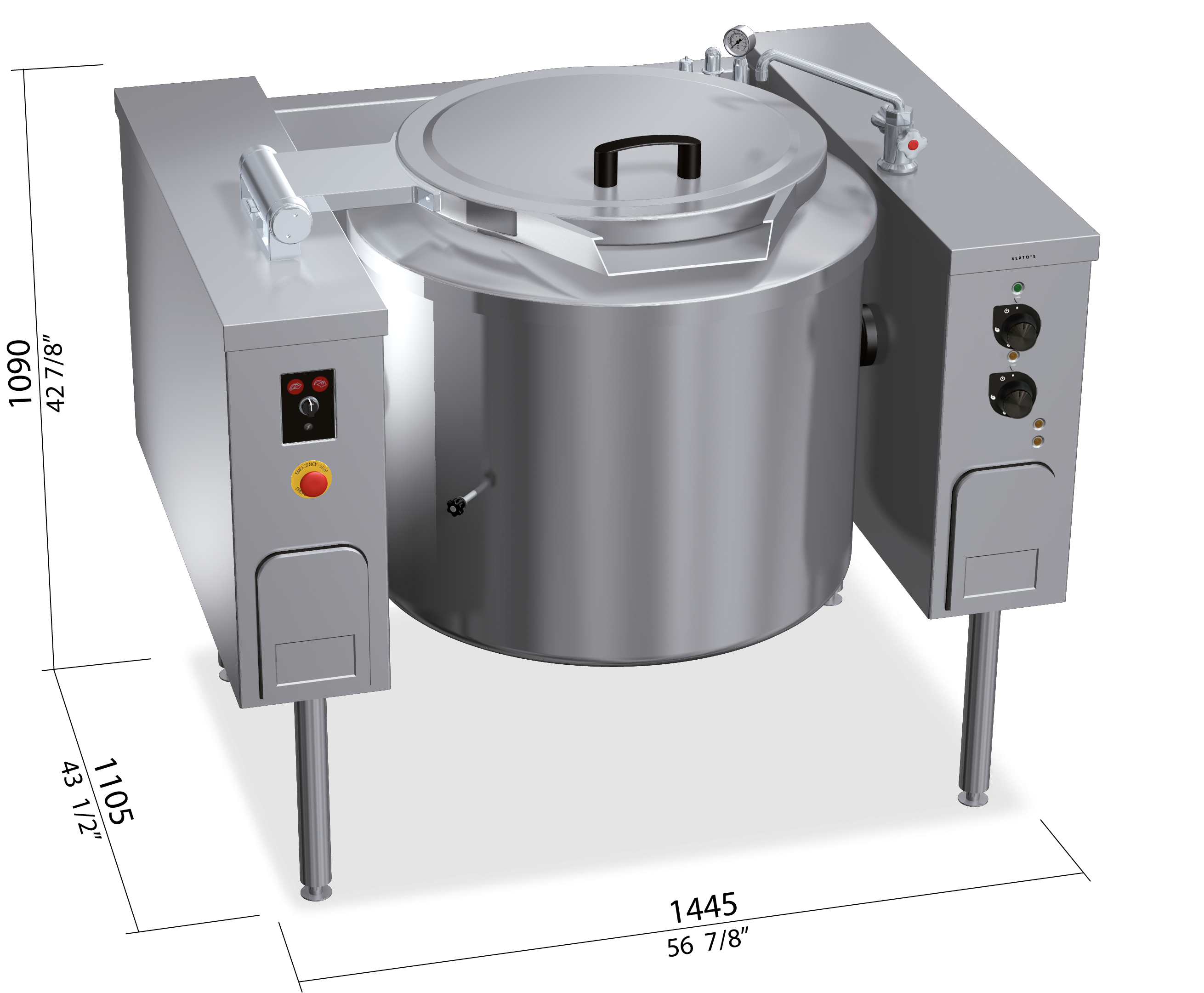

Dimensions

Dimensions
