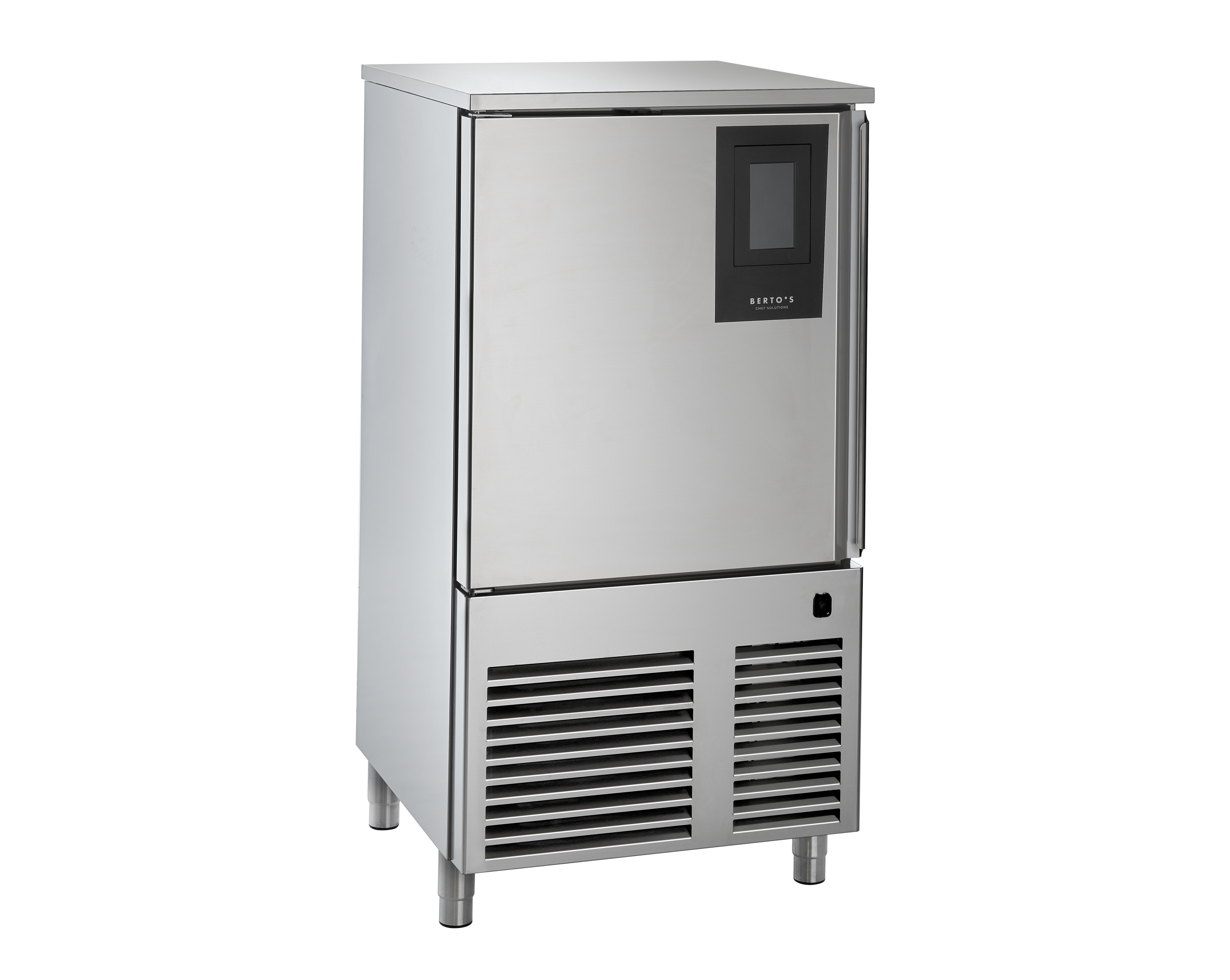

BLAST CHILLER 10 TRAYS -40 +80°C WITH STEAM GENERATOR
Download the image
Blast chillers - Blast Chillers

BLAST CHILLER 10 TRAYS -40 +80°C WITH STEAM GENERATOR

Model BC10T-GV
Code 06815000
  • Blast chiller - 10 1/1 GN 60 x 40 trays, with steam generator. Ventilated refrigeration, motor inside the technical compartment.
  • Interior walls, structure and door made of AISI 304 stainless steel. Rounded internal corners to facilitate cleaning operation. Self-closing door with magnetic seal 60 mm thick insulation made of high pressure injected polyurethane with HFO blowing agent and 42 kg/m³ density.
  • Cataphoresis-treated evaporator for high corrosion resistance.
  • 7” color Touch Display control panel in 5 languages.
  • Blast chiller operating modes: Blast chilling – Freezing – Thawing – Defrosting - Slow cooking at a low temperature – Leaving with steam generator – Ice cream hardening – Drying - Neutralizing bacteria in raw fish. Customizable recipe book with 4 settable consecutive functions. HACCP alarm storage. USB port to upload and download data.
  • Needle probe for providing precise control of temperature.
  • 10 pairs of slideways included.
    • One stainless steel 1/1 GN wire-shelf and one 60x40 wire-shelf included.
  • From -40°C to +80°C operating cycles. Chilling yield: 30 kg + 70°C/ +3°C. Freezing yield: 18 kg +70°C/-18°C.
  • Adjustable stainless-steel legs.
  • Condensate drain pan under the chiller bottom.
  • Maximum room temperature of 30°C with 55% humidity equivalent to climate class 4.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -40/+80 °C
Gas R452A
Climate class 4
Useful net volume 188
Number of shelves 10
Dimensions (mm) 770 x 800 x 1520
Absorbed power (W) 2140
Electrical power (Volt/Ph/Hz) 380-415 V3N / 50 Hz
Package dimensions (mm) 800 x 850 x 2000
Net weight (kg) 154
Gross weight (kg) 191
Measurements
Width 770
Depth 800
Height 1520
Weight 154
Volume 0.93
Package
Package width 800
Package depth 850
Package height 2000
Package weight 191
Package volume 1.36

Dimensions

Dimensions
