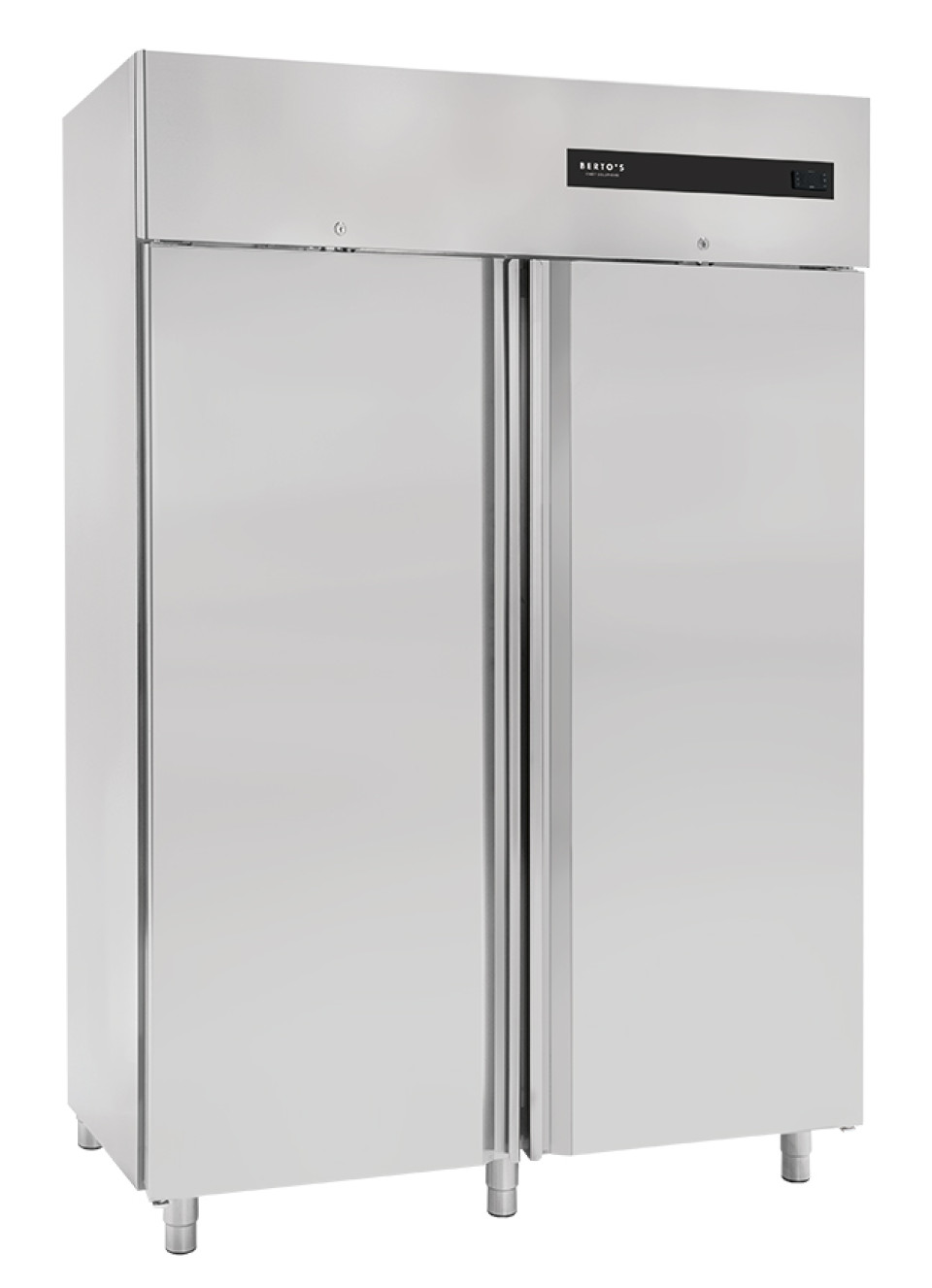

REFRIGERATED CABINET 1200 -18/-22°C

Model CAB1200BT

Code 06300010

Refrigerated cabinet equipped with a monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
Temperature detection by means of a thermistor sensor (NTC probe).
Operation control through a digital “touch” panel.
Automatic defrosting with an electric resistance.
Evaporation of condensation water by means of an anti-corrosion coil in AISI 316 low carbon.
Doors with automatic closing and a fixed opening position of 100°.
Hinges with automatic closing system.
Easily removable triple-chamber magnetic gasket.
U-shaped guides and adjustable and extractable racks for grids.
Rounded internal corners for quick and easy cleaning.
Evaporator painted for cataphoresis with high corrosion resistance.
6 grids 530 x 530 mm as standard.
Height-adjustable stainless steel feet.
Lock with key and light placed under the control panel.

Show more Hide

More information

Technical specifications

Preservation

Range	-18/-22 °C
Gas	R290
Energy class	C
Climate class	5
Electrical consumption (kWh/year)	2372
Useful net volume	798
Absorbed power (W)	700
Electrical power (Volt/Ph/Hz)	220-240 V / 50 Hz
