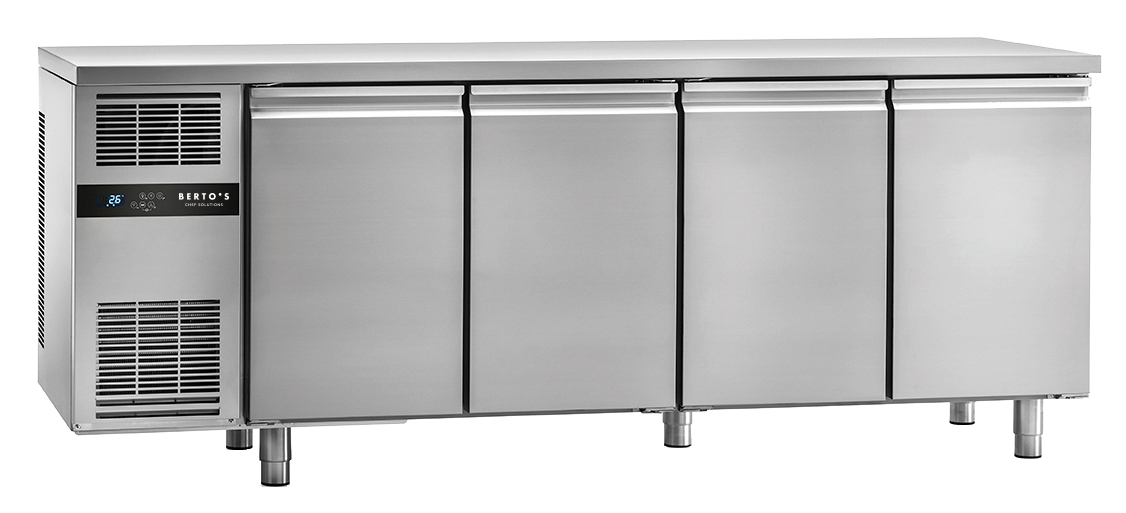

Refrigerated Counters - 4 doors - Counters

REFRIGERATED COUNTER 2200 0+8°C P

Model COU220TNP
Code 06660000
  • Refrigerated counter with AISI 304 stainless steel worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.

Technical specifications

Technical specifications

Details
total electric kW 0.32
Electrical voltage 230 V / 50 Hz
Preservation
Range 0/+8 °C
Gas R290
Energy class B
Climate class 5
Electrical consumption (kWh/year) 694
Useful net volume 384L
Dimensions (mm) 2200x700x900
Absorbed power (W) 328
Absorbed power (A) 1.8
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 2300x750x1100
Net weight (kg) 155
Gross weight (kg) 187
Measurements
Width 2200
Depth 700
Height 900
Weight 155
Volume 1.386
Package
Package width 2300
Package depth 750
Package height 1100
Package weight 187
Package volume 1.9
