REFRIGERATED COUNTER 1280 0+10°C PR
Download the image
Refrigerated Counters 600 - 2 doors - Counters

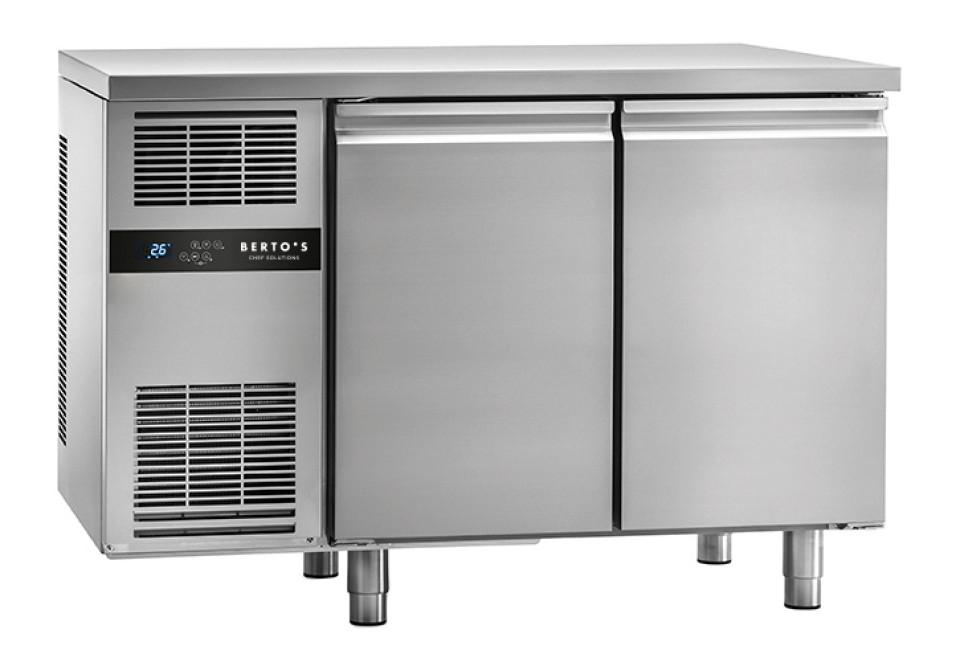

REFRIGERATED COUNTER 1280 0+10°C PR

Model COU1286TNPR
Code 06622010
  • Refrigerated counter with AISI 304 stainless steel round edge worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • Automatic defrosting with compressor cut off in the 0/+10 °C version.
  • Automatic defrosting with electric resistance in the -2/+10 °C version.
  • Evaporation of condensation water by means of an anti-corrosion coil in AISI 316 low carbon.
  • Internal grid dimensions 430 x 325 mm.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range 0/+10 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 328
Useful net volume 151
Absorbed power (W) 350
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 1280
Depth 600
Height 900
Weight 87
Volume 0.7
Package
Package width 1320
Package depth 630
Package height 1100
Package weight 99
Package volume 0.9

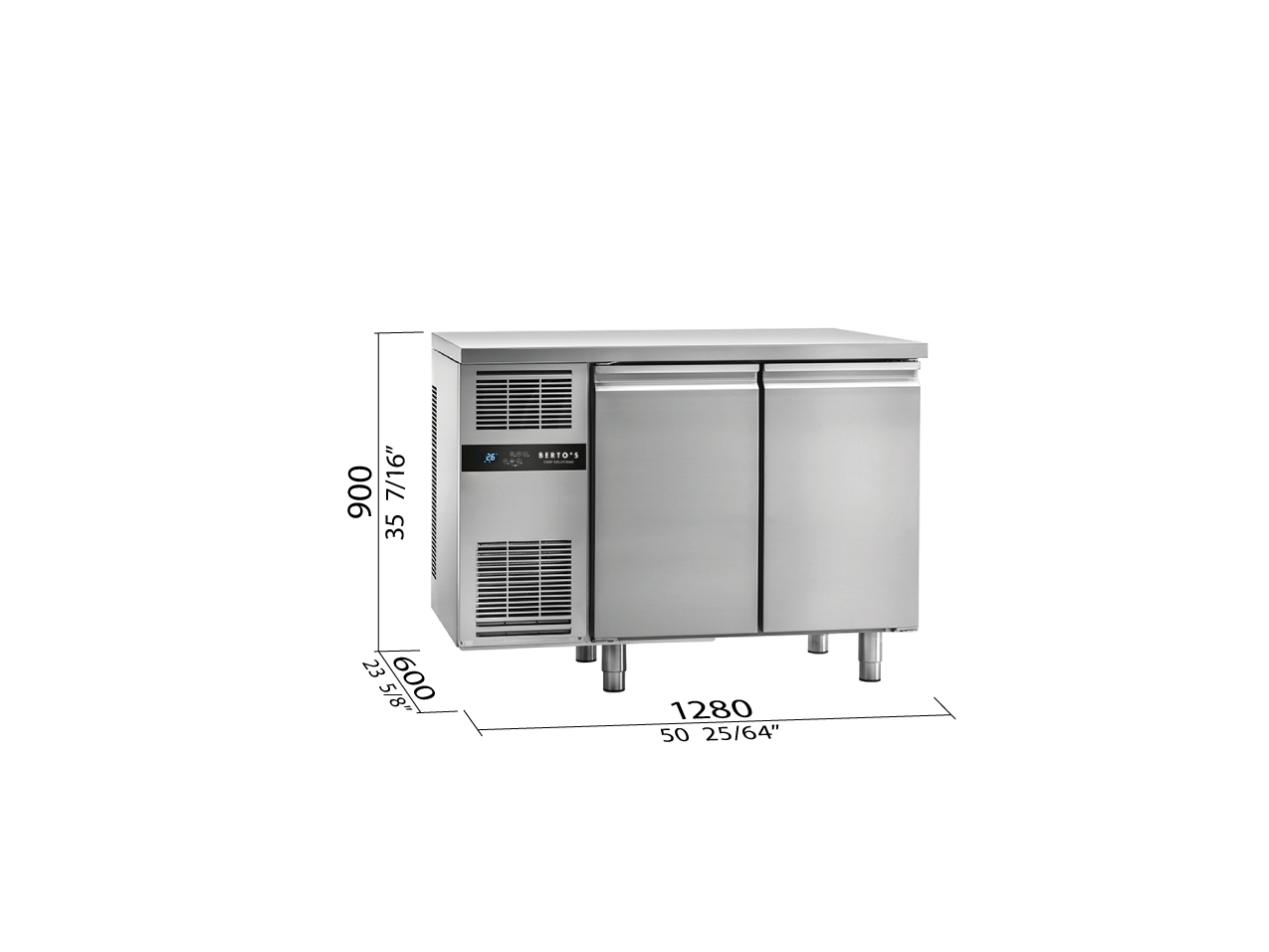

Dimensions

Dimensions
