REFRIGERATED COUNTER 1730 -18-22°C P
Download the image
Refrigerated Counters 600 - 3 doors - Counters

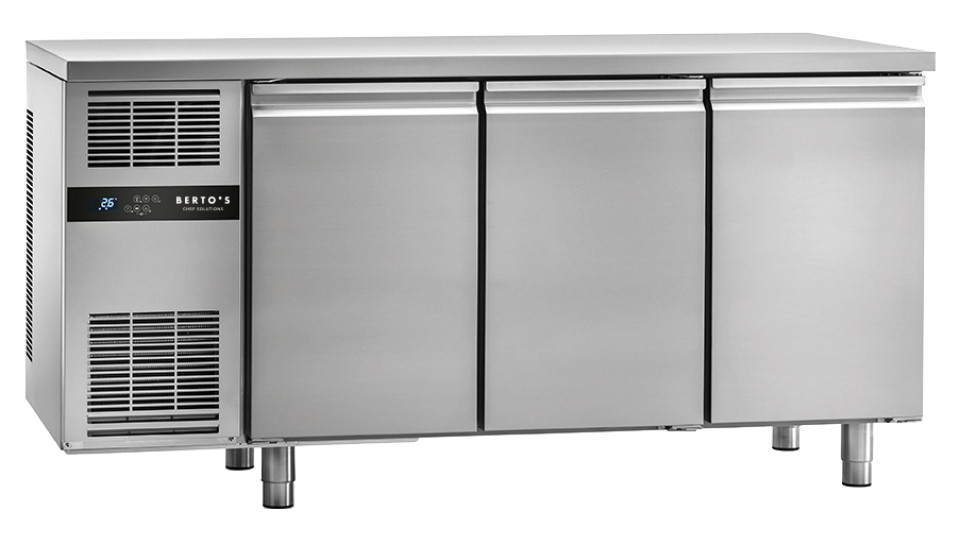

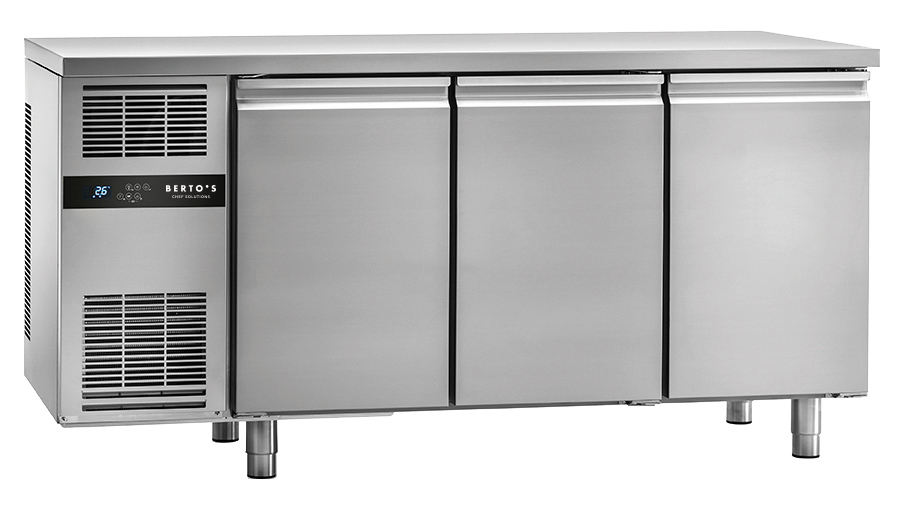

REFRIGERATED COUNTER 1730 -18-22°C P

Model COU1736BTP
Code 06647000
  • Refrigerated counter with AISI 304 stainless steel worktop.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • Automatic defrosting with electric resistance.
  • Evaporation of condensation water by means of an anti-corrosion coil in AISI 316 low carbon.
  • Internal grid dimensions 430 x 325 mm.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -18/-22 °C
Gas R290
Energy class D
Climate class 5
Electrical consumption (kWh/year) 2038
Useful net volume 227
Absorbed power (W) 950
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 1730
Depth 600
Height 900
Weight 109
Volume 0.9
Package
Package width 1770
Package depth 630
Package height 1100
Package weight 124
Package volume 1.22

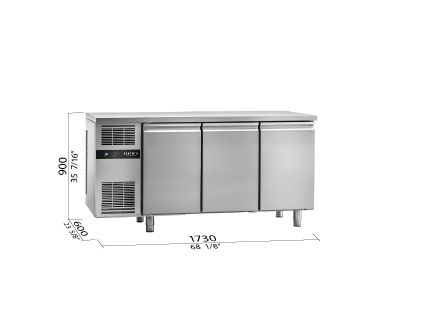

Dimensions

Dimensions
