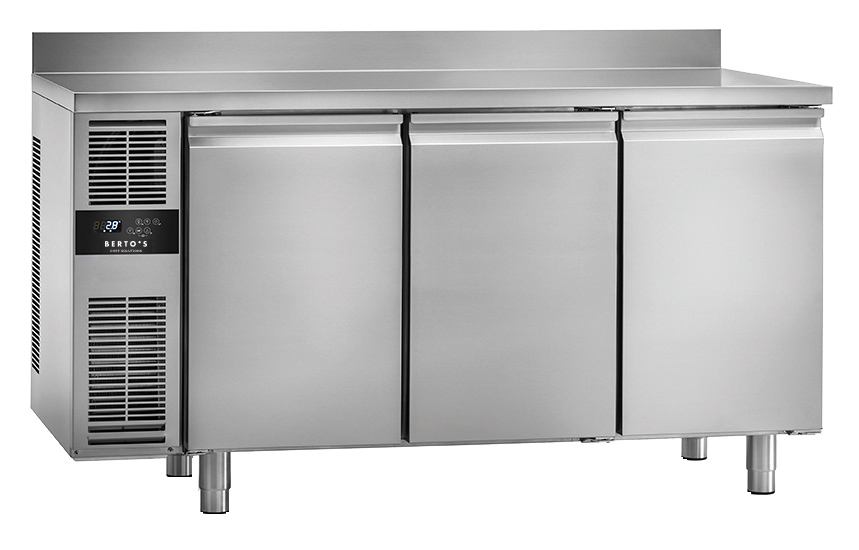

REFRIGERATED COUNTER SMART 1620 0+8°C PA
Download the image
Smart Refrigerated Counters - 3 doors - Counters

REFRIGERATED COUNTER SMART 1620 0+8°C PA

Model COUSM162TNPA
Code 06650020
  • Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range 0/+8 °C
Gas R290
Energy class A
Climate class 5
Electrical consumption (kWh/year) 548
Useful net volume 288
Dimensions (mm) 1620x700x900
Absorbed power (W) 215
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Package dimensions (mm) 1800x750x1100
Net weight (kg) 122
Gross weight (kg) 150
Measurements
Width 1620
Depth 700
Height 900
Weight 122
Volume 1.134
Package
Package width 1800
Package depth 750
Package height 1100
Package weight 150
Package volume 1.48
