REFRIGERATED COUNTER SMART 2080 0+8°C PRA
Download the image
Smart Refrigerated Counters - 4 doors - Counters

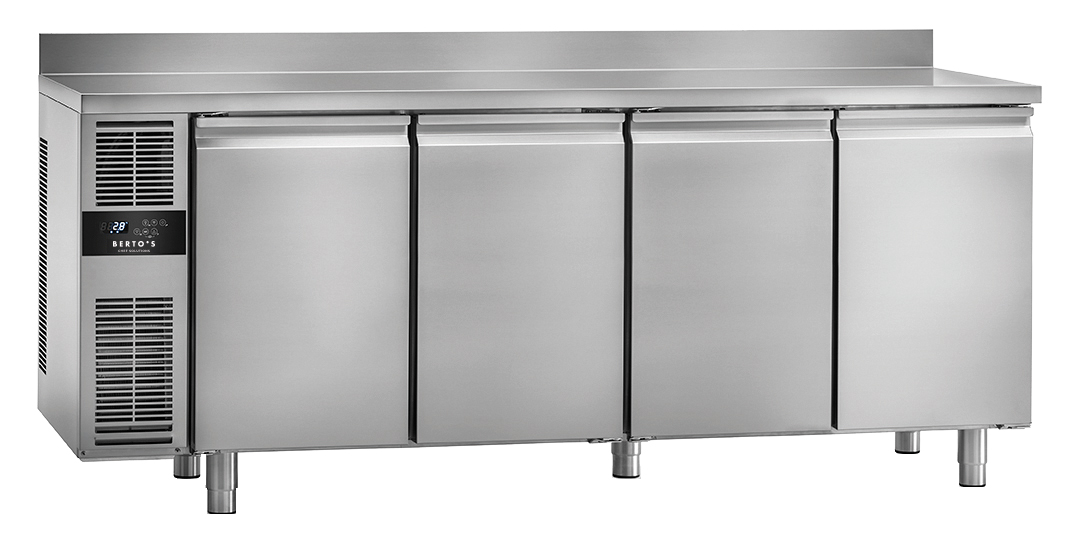

REFRIGERATED COUNTER SMART 2080 0+8°C PRA

Model COUSM208TNPRA
Code 06670030
  • Refrigerated counter with AISI 304 stainless steel worktop with splashback h 100 mm.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Motor inside the technical compartment.
  • Forced ventilated refrigeration with protected evaporators positioned between the compartments.
  • 60 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Tested with external working environment temperatures up to 43°C, efficiency equivalent to energy class 5.
  • Automatic defrosting with compressor cut off in the 0 /+8°C version.
  • Automatic defrosting with electric resistance in the -2 /+8°C version.
  • Automatic evaporation of condensate water by means of a copper heat exchanger.
  • Rounded internal corners and removable parts to facilitate cleaning.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 0.328
Electrical voltage 230 V / 50 Hz
Preservation
Range 0/+8 °C
Gas R290
Energy class B
Climate class 5
Electrical consumption (kWh/year) 694
Useful net volume 384

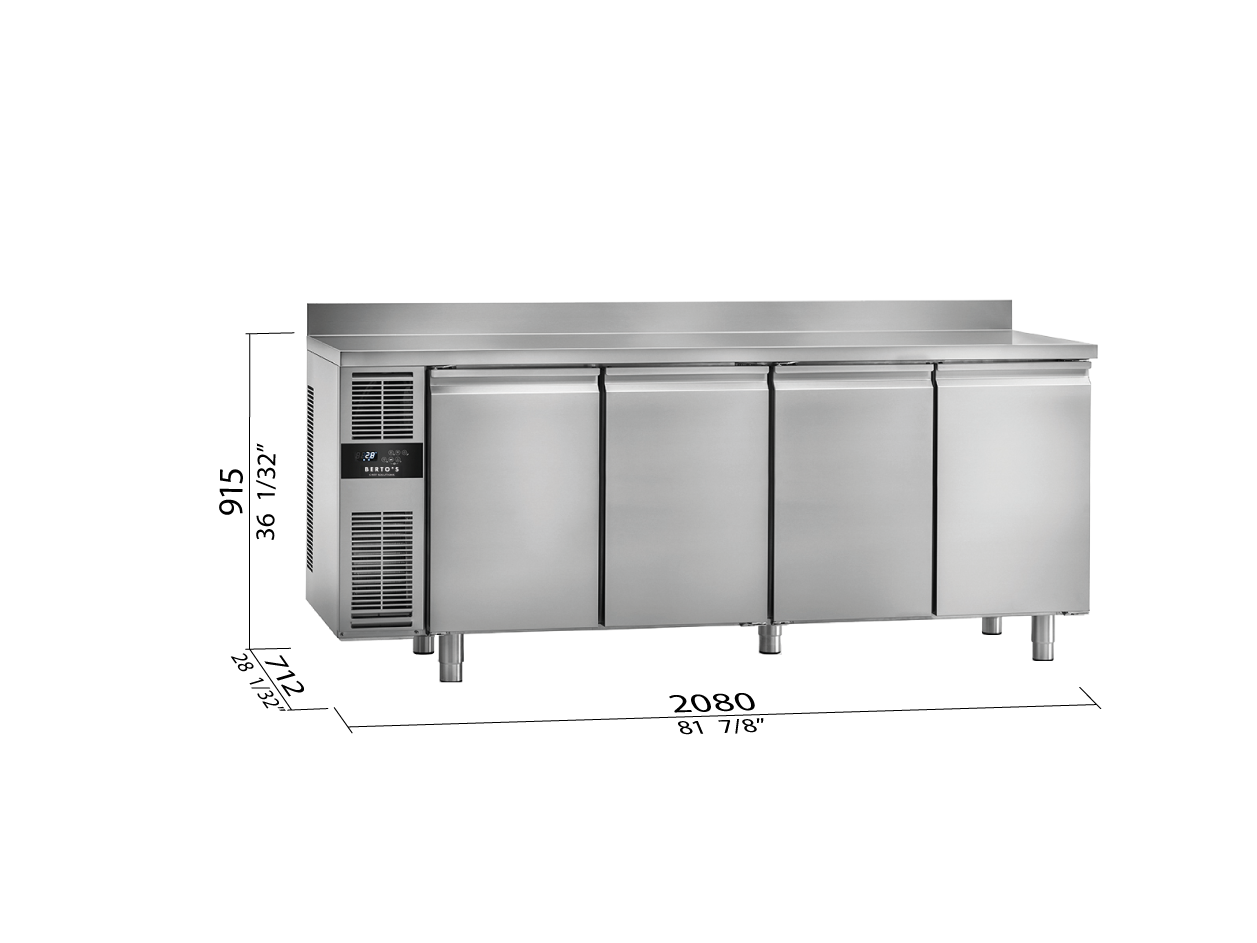

Dimensions (mm) 2080x712x915
Absorbed power (W) 328
Absorbed power (A) 2.38
Electrical power (Volt/Ph/Hz) 230/1/50
Package dimensions (mm) 2300x750x1100
Net weight (kg) 145
Gross weight (kg) 177
Measurements
Width 2080
Depth 712
Height 915
Weight 145
Volume 1.456
Package
Package width 2300
Package depth 750
Package height 1100
Package weight 177
Package volume 1.9

Dimensions

Dimensions
