GAS BOILING PAN - DIRECT HEATING
Download the image
BOILING PANS - MACROS 700

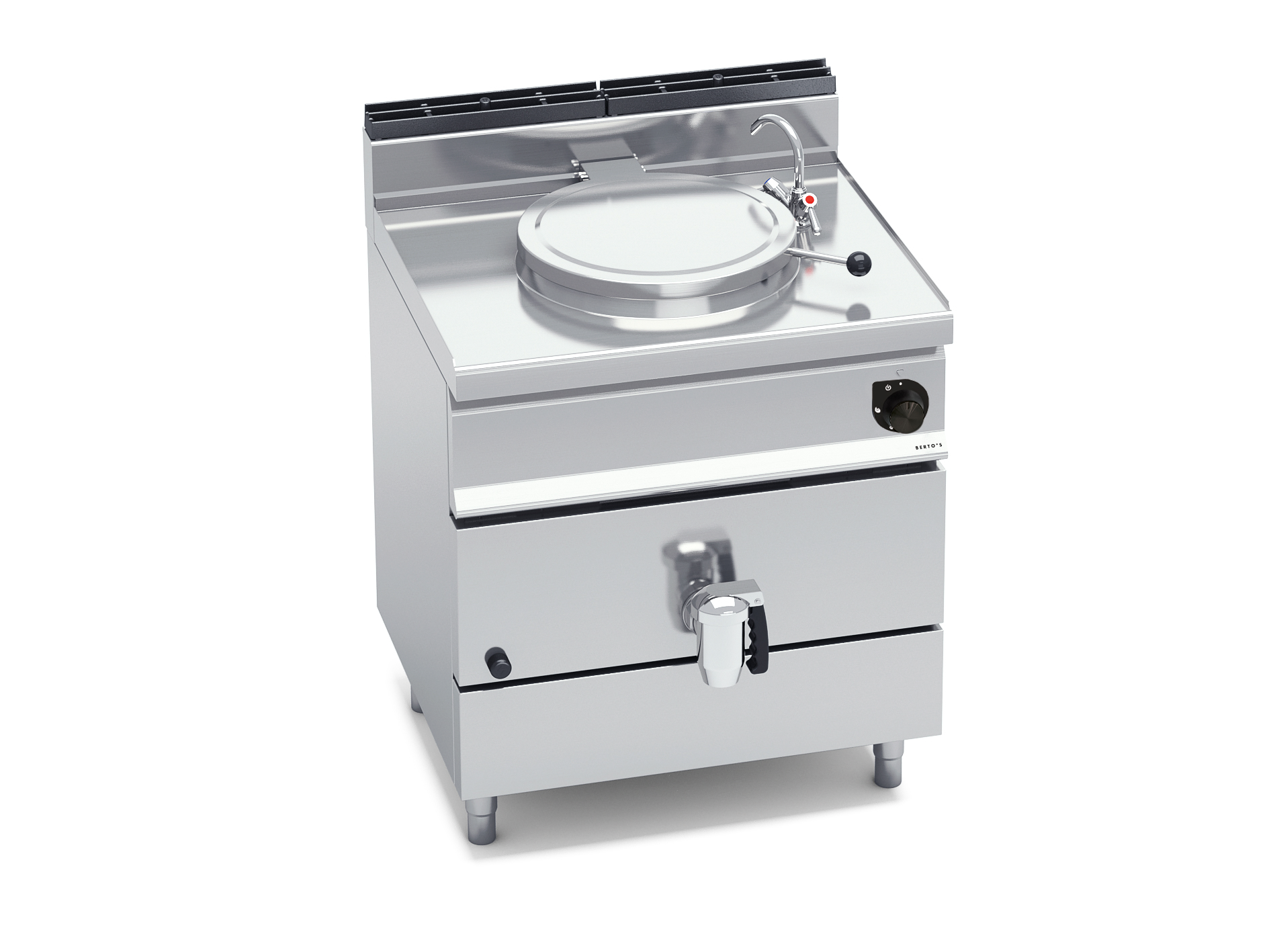

GAS BOILING PAN - DIRECT HEATING

Model G7PD
Code 18842000
Worktop and front panels made of AISI 304 stainless steel. AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Direct type heating generated by tubular burners made of stainless steel with optimized combustion, safety thermocouple valve and protected pilot flame. Piezoelectric ignition with silicone protection. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container. 1 1/2” draining tap of chromed brass with athermic handle. Temperature regulation by means of a maximum and minimum tap. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 50
Details
total gas kW 15.5
Measurements
Width 800
Depth 714
Height 900
Weight 93
Volume 0.51
Package
Package width 970
Package depth 790
Package height 1270
Package weight 113
Package volume 0.97

Dimensions

Dimensions
