100 L ELECTRIC BOILING PAN - INDIRECT HEATING
Download the image
BOILING PANS - S900

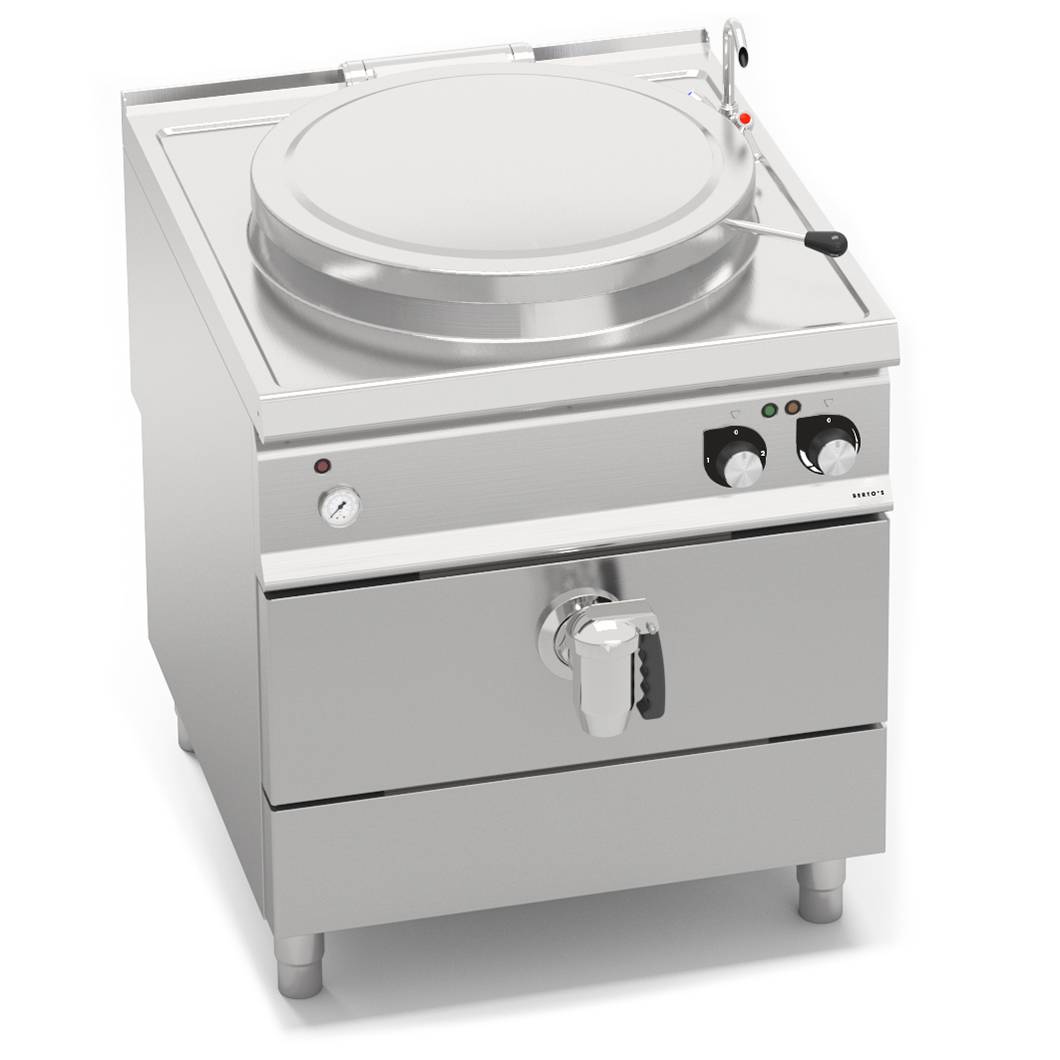

100 L ELECTRIC BOILING PAN - INDIRECT HEATING

Model SE9P10I
Code 13833002
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness.
Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through armored resistance from Incoloy equipped with a safety thermostat. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container. 2” draining tap of chromed brass with athermic handle.
Mechanical gauge with a jacket pressure indicator. Power supply regulated by a 3-position switch. Separate control for temperature regulation. Pilot light and temperature indicator light. Double-walled lid.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 100
Details
total electric kW 16
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 128
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 147
Package volume 1.1

Dimensions

Dimensions
