BOILING PANS - S900

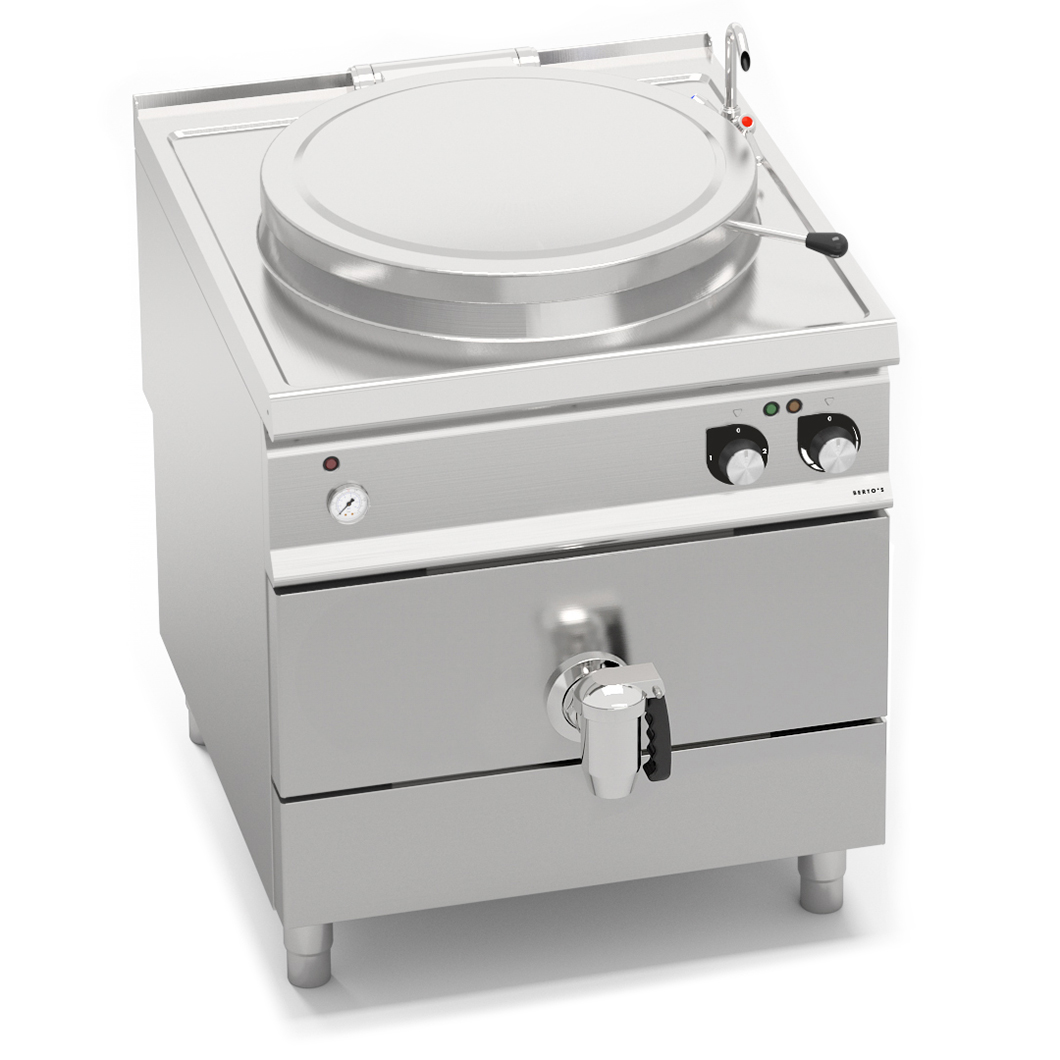

150 L ELECTRIC BOILING PAN - INDIRECT HEATING

Model SE9P15I
Code 13843002
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through armored resistance from Incoloy equipped with a safety thermostat. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and jacket. 2” draining tap of chromed brass with athermic handle. Mechanical gauge with a jacket pressure indicator. Power supply regulated by a 3-position switch. Separate control for temperature regulation. Pilot light and temperature indicator light. Doublewalled lid.

Technical specifications

Technical specifications

Tank
L of capacity 150
Details
total electric kW 18
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 151
Volume 0.65
Package
Package width 865
Package depth 1070
Package height 1270
Package weight 170
Package volume 1.18
