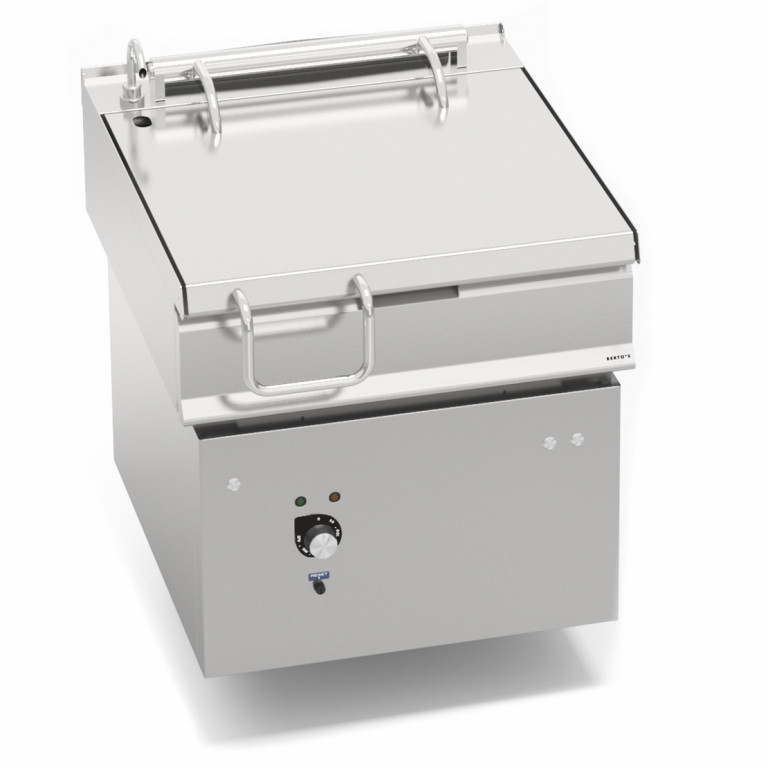

80 L GAS TILTING BRATT PANS MOTORIZED TILTING
Download the image
BRATT PANS - S900

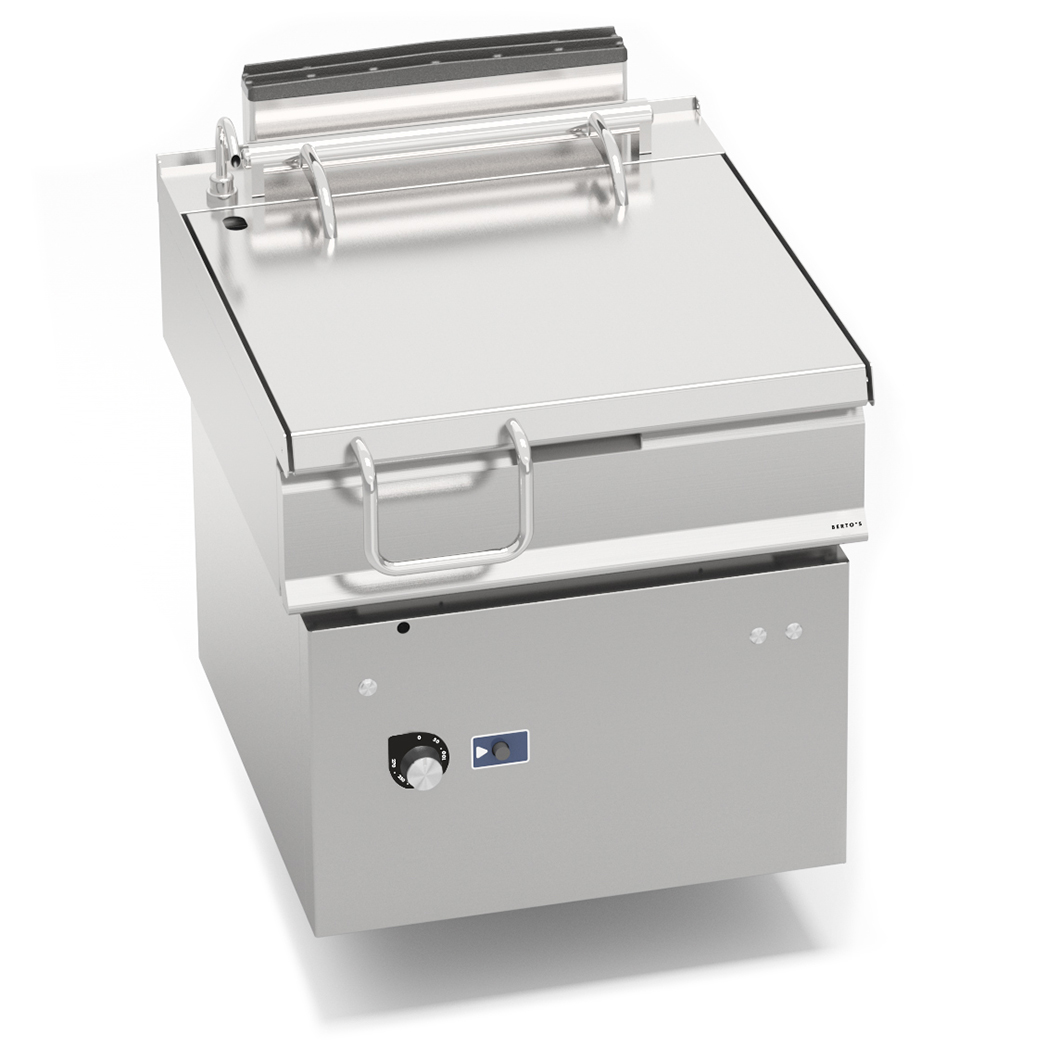

80 L GAS TILTING BRATT PANS MOTORIZED TILTING

Model LXG9BR8/I+RM+CDP
Code 13821804
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stainless steel walls with 20/10 thickness, non-stick ceramic micro-sphere finishing and completely rounded angles. Radiating steel tank bottom with 12 mm thickness; externally welded. Distributing tap with large capacity neck placed on the top. Even heating at the bottom with stainless steel multi-flame burners, with thermocouple safety valve and protected pilot flame. Control with a large precision thermostatic valve with temperature regulation from 100 to 300 °C.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 80
Details
total gas kW 20
total electric kW 0.4
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 760
Weight 171
Volume 0.55
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 190
Package volume 1.1

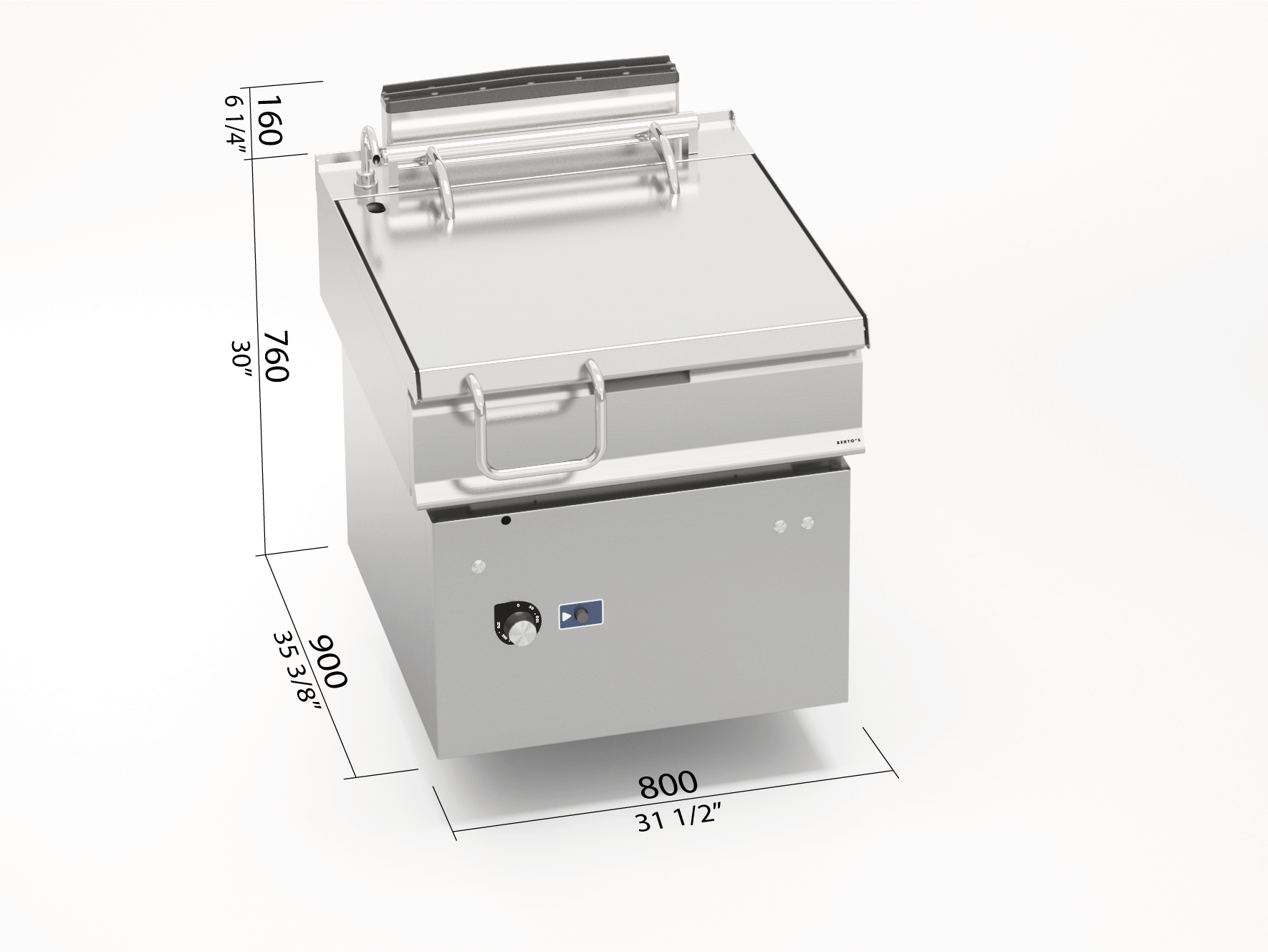

Dimensions

Dimensions

All products of the line S900

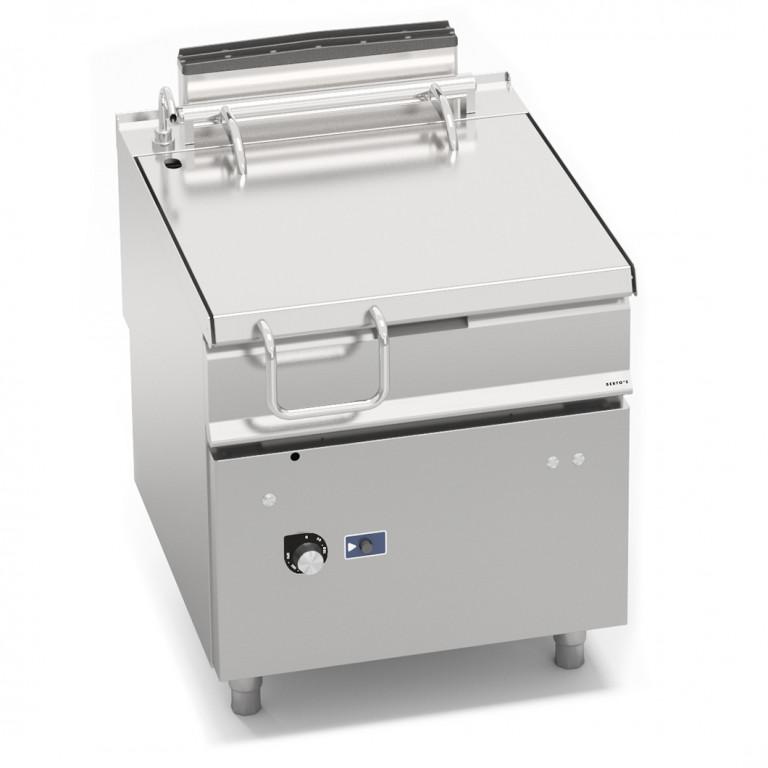

80 L ELECTRIC TILTING BRATT PANS
80 L ELECTRIC TILTING BRATT PANS
S900
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stai...

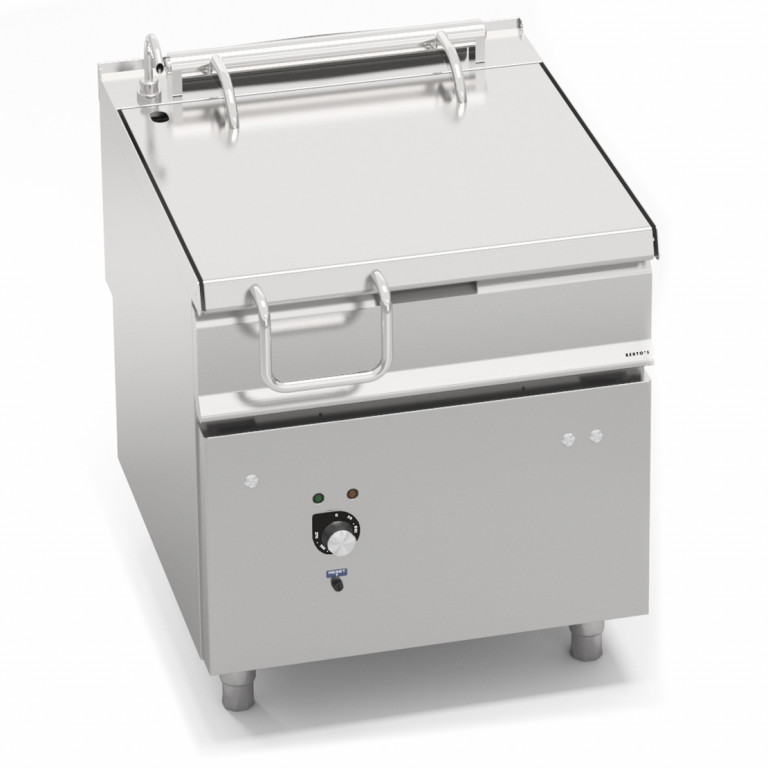

80 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
80 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
S900
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stai...
80 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
80 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
S900
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stai...

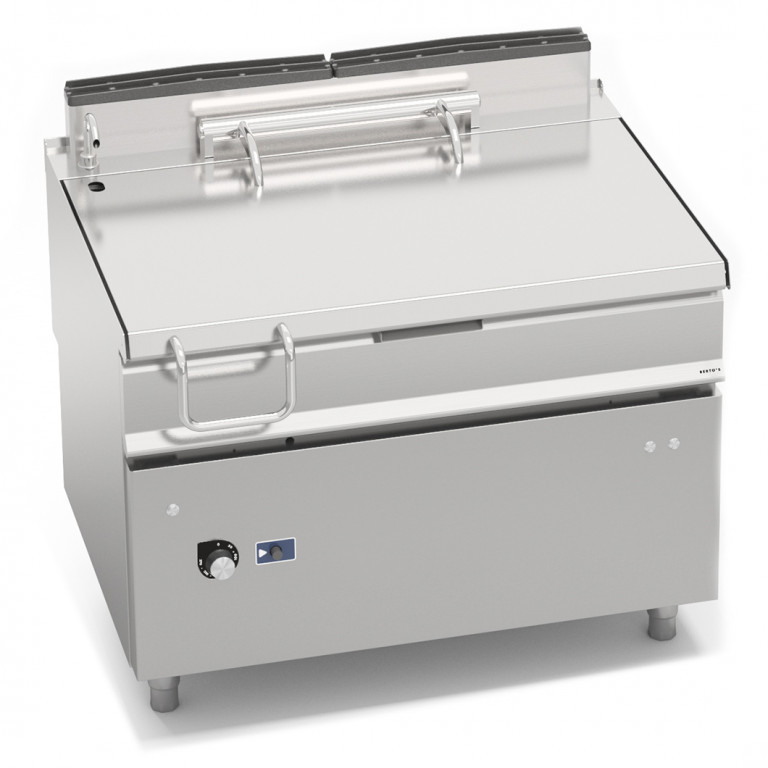

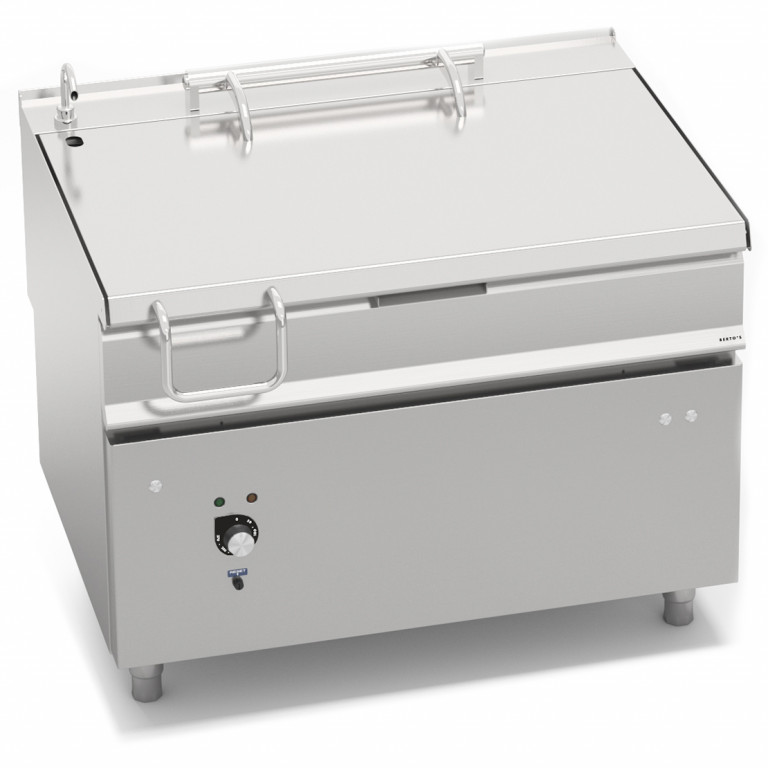

120 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
120 L ELECTRIC TILTING BRATT PANS MOTORIZED TILTING
S900
Internal and external frame completely made of stainless steel, external sides with Scotch Brite finishing. Cover fixed on a self-balanced hinge from AISI 304 stainless steel with a very thick handle from AISI 304 stainless steel. Cooking tank with top and AISI 304 stai...

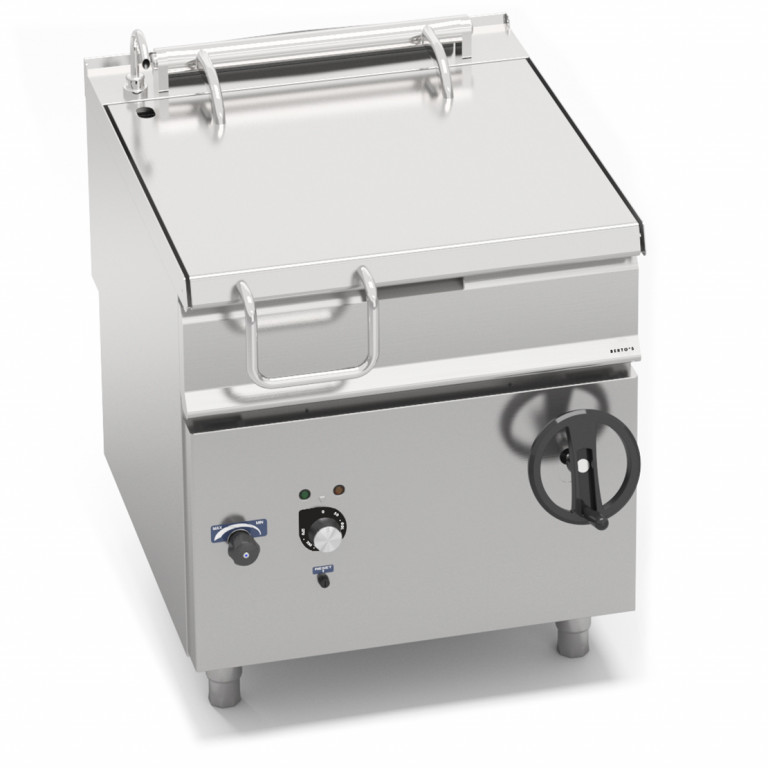

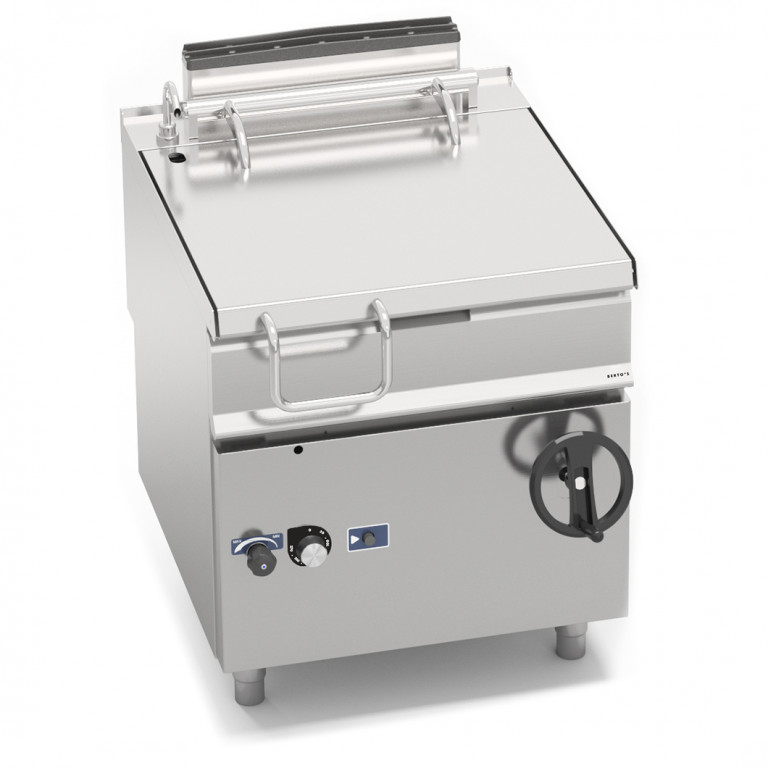

80 L GAS TILTING BRATT PANS
