ELECTRIC FRYERS - MACROS 700

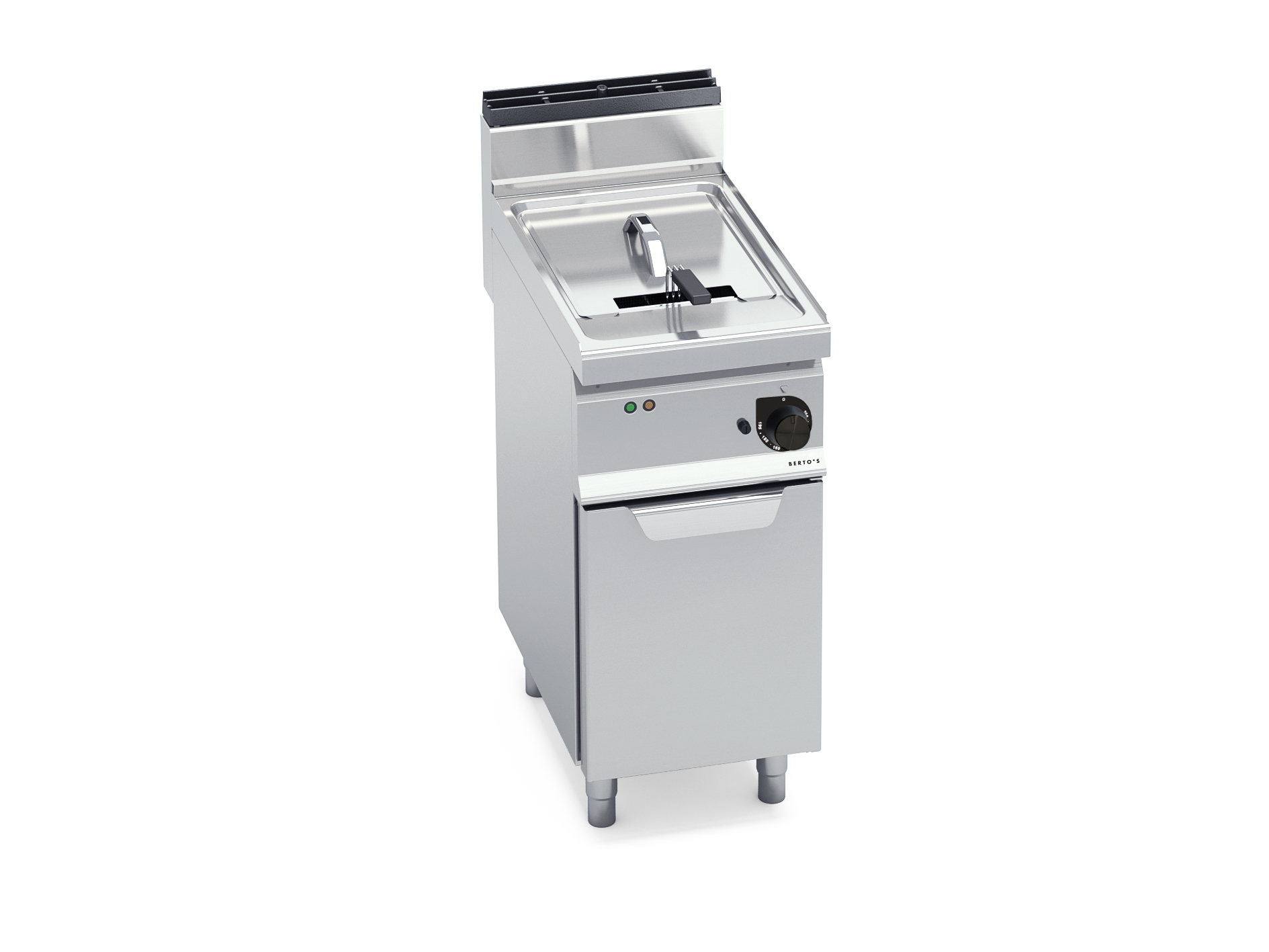

ELECTRIC FRYER WITH CABINET - SINGLE TANK 18 L

Model E7F18-4M / E7F18-4MS
Code 18505500
Front panels made of AISI 304 STAINLESS STEEL. Pressed and rounded tank equipped with long lasting special rotating resistances made of Incoloy stainless steel; they can reach the operational temperature in very short time increasing oil savings to 60%. The frying system maintains the organoleptic characteristics of the oil which allows for a healthier production and furthermore, limits the required oil changes giving further savings. The resistance rotation makes cleaning operations easier.
Adjustable thermostat up to 190° C with control facility, safety thermostat and manual restart. Average frying time of 4 minutes. Pre-heating time of 4-6 minutes (from 20 to 190°C). Maximum output 30 kg/h (E7F18-4M), 35 kg/h (E7F18-4MS). Adjustable feet (cabinet version).

Technical specifications

Technical specifications

Tank
L of capacity 18
Details
total electric kW 13.5
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 714
Height 900
Weight 50
Volume 0.26
Package
Package width 470
Package depth 790
Package height 1210
Package weight 55
Package volume 0.45

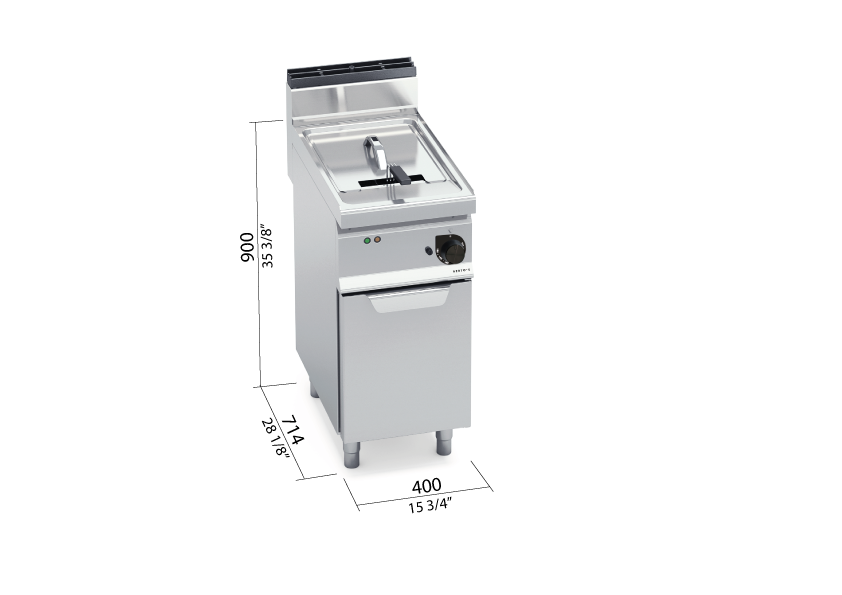

Dimensions

Dimensions
