ELECTRIC FRYERS - MACROS 700

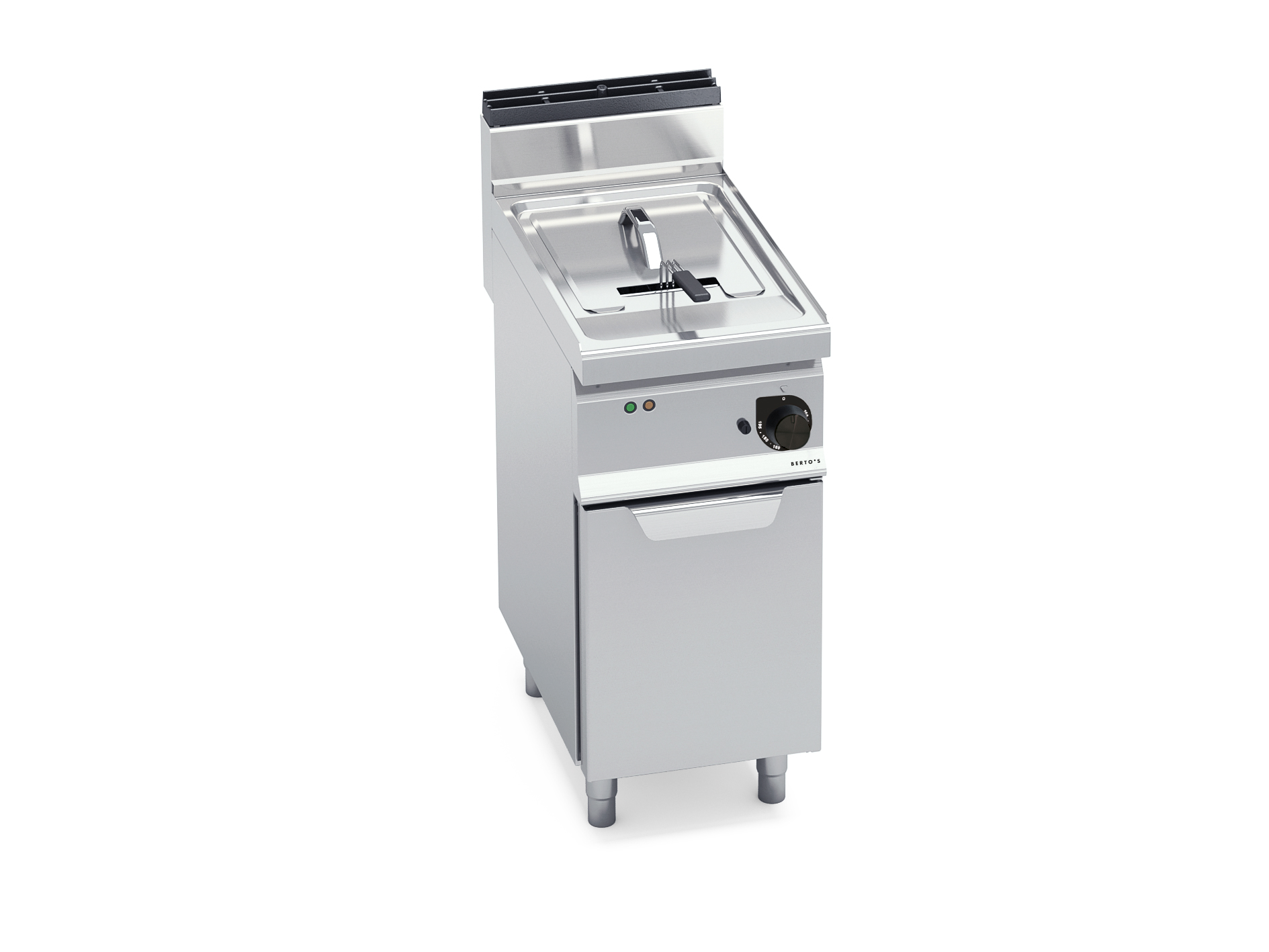

ELECTRIC FRYER WITH CABINET - SINGLE TANK 10 L

Model E7F10-4M / E7F10-4MS
Code 18501500
Front panels made of AISI 304 STAINLESS STEEL. Pressed and rounded tank equipped with long
lasting special rotating resistances made of Incoloy stainless steel; they can reach the operational
temperature in very short time increasing oil savings to 60%. The frying system maintains the
organoleptic characteristics of the oil which allows for a healthier production and furthermore, limits
the required oil changes giving further savings. The resistance rotation makes cleaning operations
easier. Adjustable thermostat up to 190° C with control facility, safety thermostat and manual restart.
Average frying time of 4 minutes. Pre-heating time of 4-5 minutes (from 20 to 190°C).
Maximum output 25 kg/h (E7F10-4B, E7F10-4M), 30 kg/h (E7F10-4BS, E7F10-4MS). Adjustable feet
(cabinet version).

Technical specifications

Technical specifications

Tank
L of capacity 10
Details
total electric kW 6
Electrical voltage 380-415 V3
Measurements
Width 400
Depth 714
Height 900
Weight 39
Volume 0.26
Package
Package width 480
Package depth 800
Package height 1210
Package weight 44
Package volume 0.45

Dimensions

Dimensions
