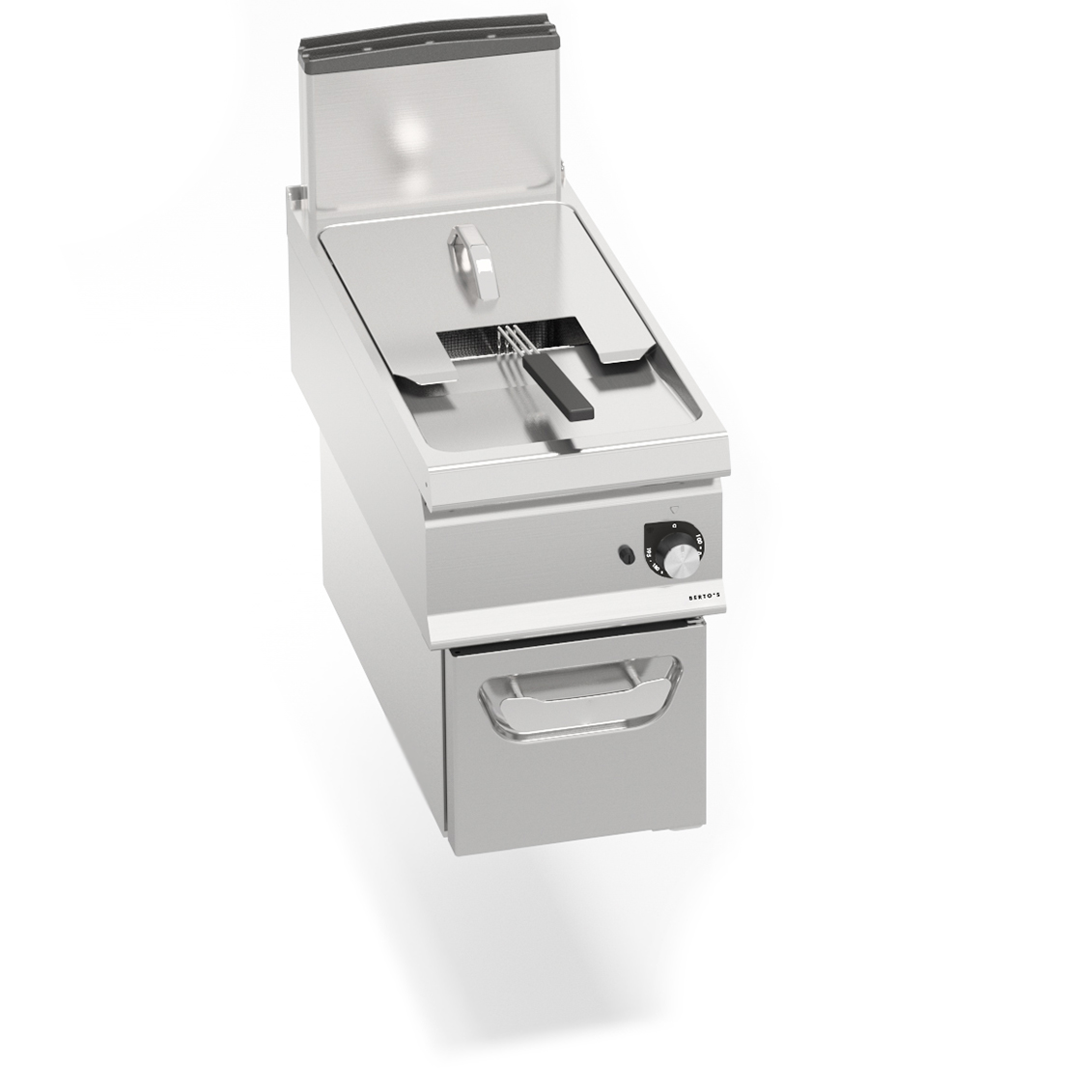

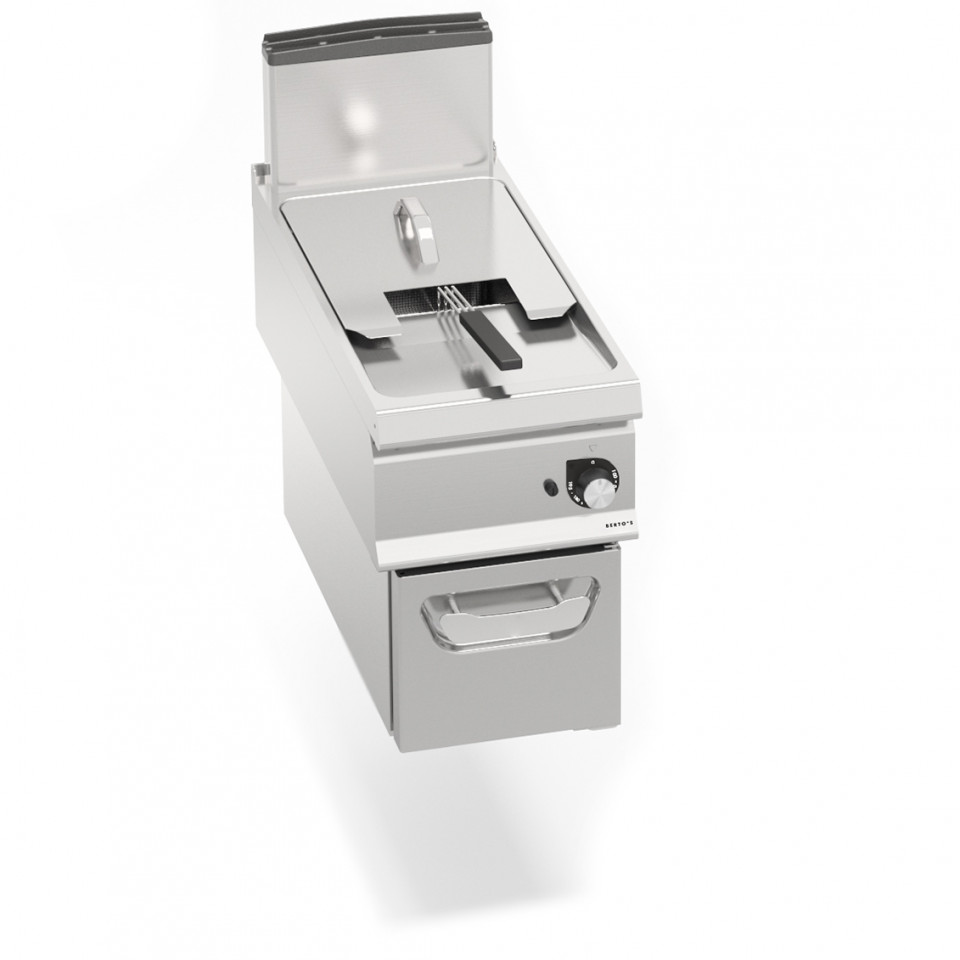

GAS FRYER - SINGLE TANK 18 L
Download the image
GAS FRYERS - S900

GAS FRYER - SINGLE TANK 18 L

Model LX9GL18I
Code 13560700
Worktop in AISI 304 stainless steel with a 20/10 thickness, front and side panels in AISI 304 stainless steel and Scotch Brite finishing.
Pressed tank with a large “cool” zone to collect food residuals. The unit is easy to clean as there are no pipes and the draining hole is a large 1” diameter.
The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining.
Two stainless steel burners installed out of the tank, controlled by a solenoid valve with a
temperature control by means of a high precision electric thermostat. Safety thermostat with manual restart, pilot flame and safety system with thermocouple.
Spherical draining faucet positioned in the compartment controlled by a heat-proof handle and with steel collection tray. Electric ignition. Adjustable feet.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 18
Details
total gas kW 14
total electric kW 0.01
Electrical voltage 220-240 V
Measurements
Width 400
Depth 900
Height 580
Weight 51
Volume 0.21
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 56
Package volume 0.66

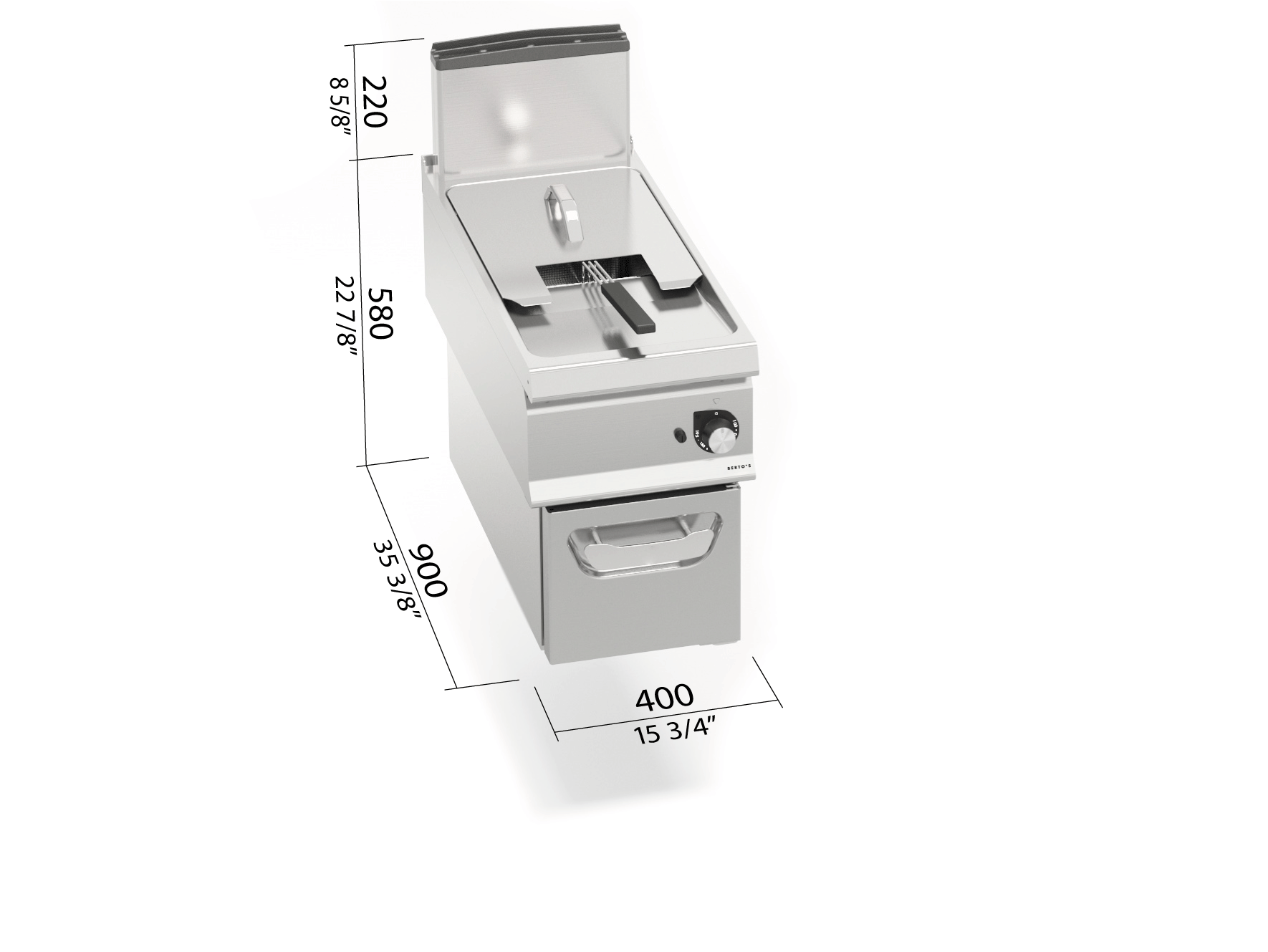

Dimensions

Dimensions
