GAS FRYERS - S900

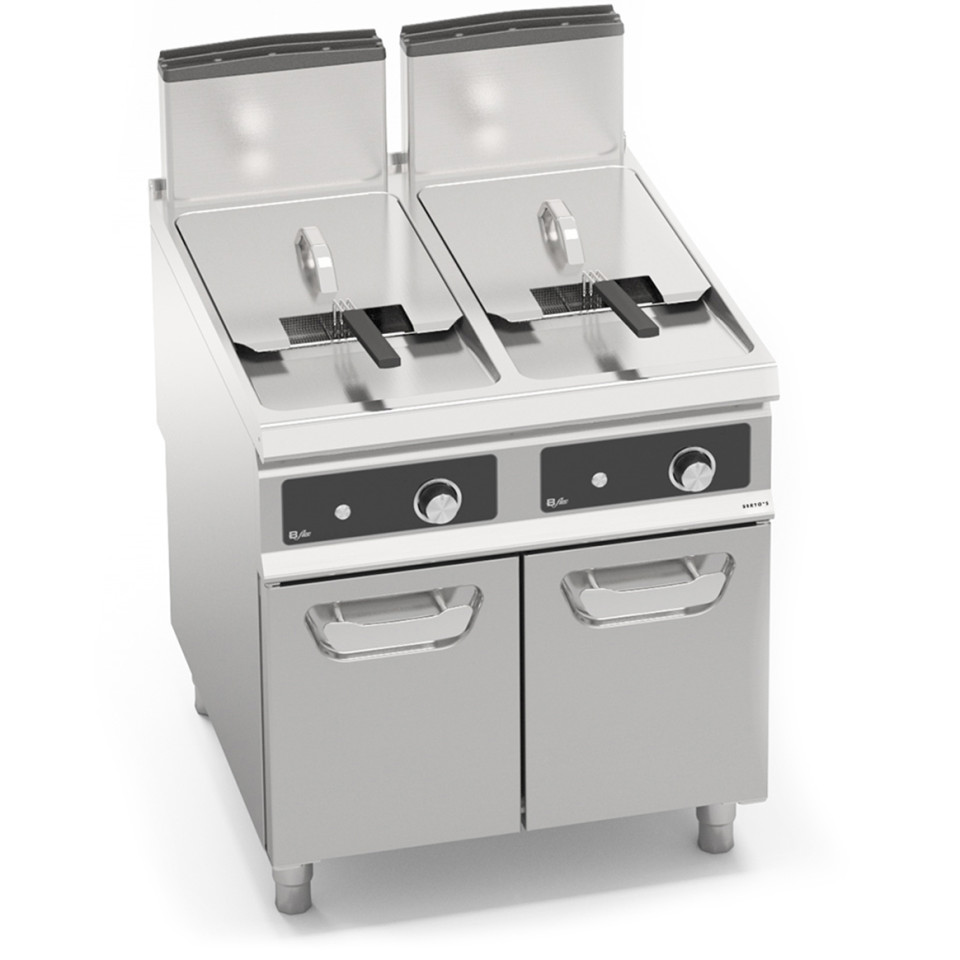

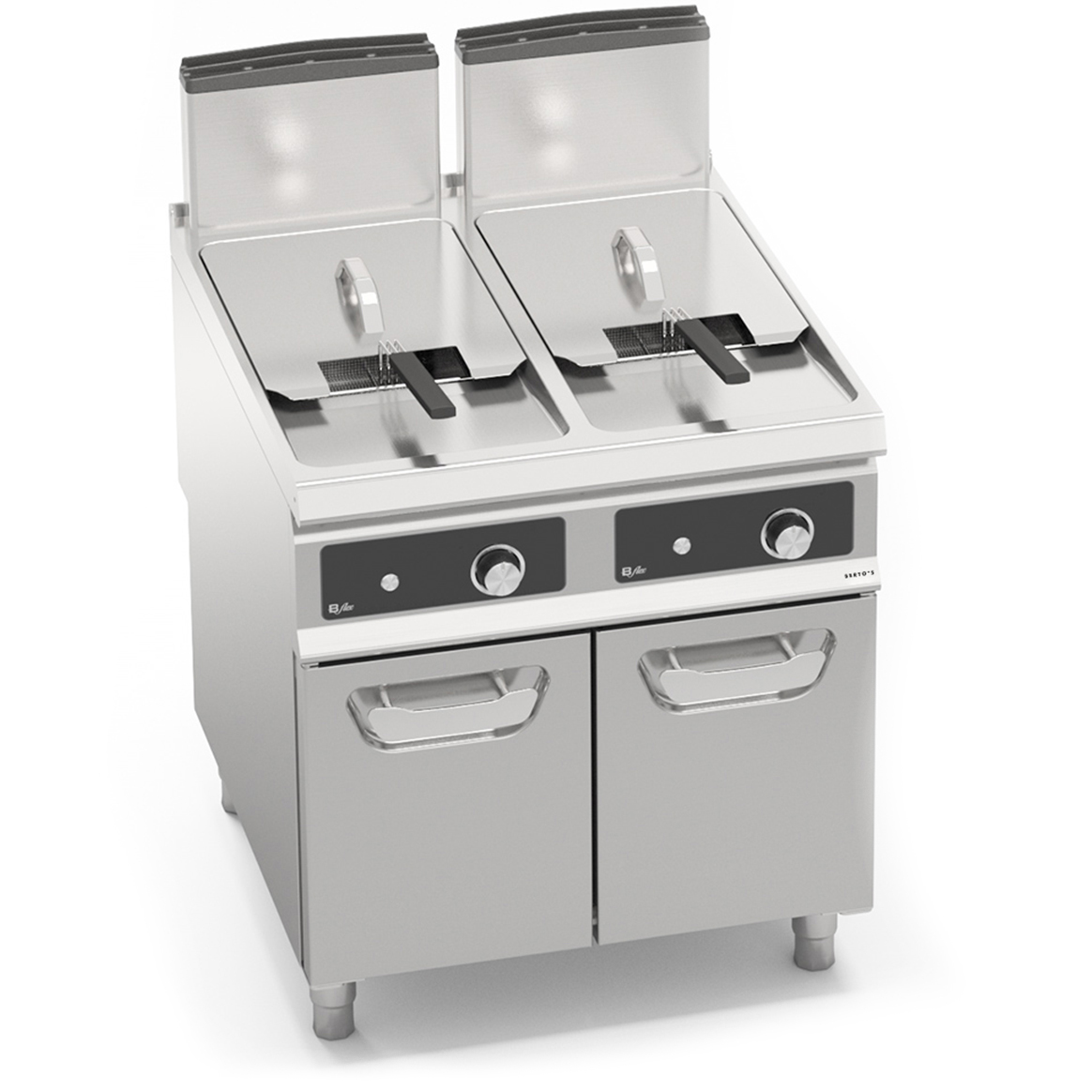

GAS FRYER WITH CABINET 20+20 L - BFLEX CONTROLS

Model S9GL20+20M-BF
Code 13480020
Worktop from AISI 304 stainless steel of 20/10 thickness, front and side panels from AISI 304 stainless steel and Scotch Brite finishing. Stainless steel burners with an oval honey-comb section. Oval section large surface heat exchangers positioned directly in the tank to ensure fast and homogeneous heating. Pilot flame and thermocouple safety valve. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the burners to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Temperature control via Bflex electronic control up to 190 °C with a more precise temperature detection, thanks to the sensors positioned in the tank. Safety thermostat with manual restart.
Spherical draining tap positioned in the compartment controlled by an athermic handle and with steel collection tray.

Technical specifications

Technical specifications

Tank
L of capacity 20+20
Details
total gas kW 35
Measurements
Width 800
Depth 900
Height 1120
Weight 116
Volume 0.81
Package
Package width 860
Package depth 1080
Package height 1250
Package weight 135
Package volume 1.16

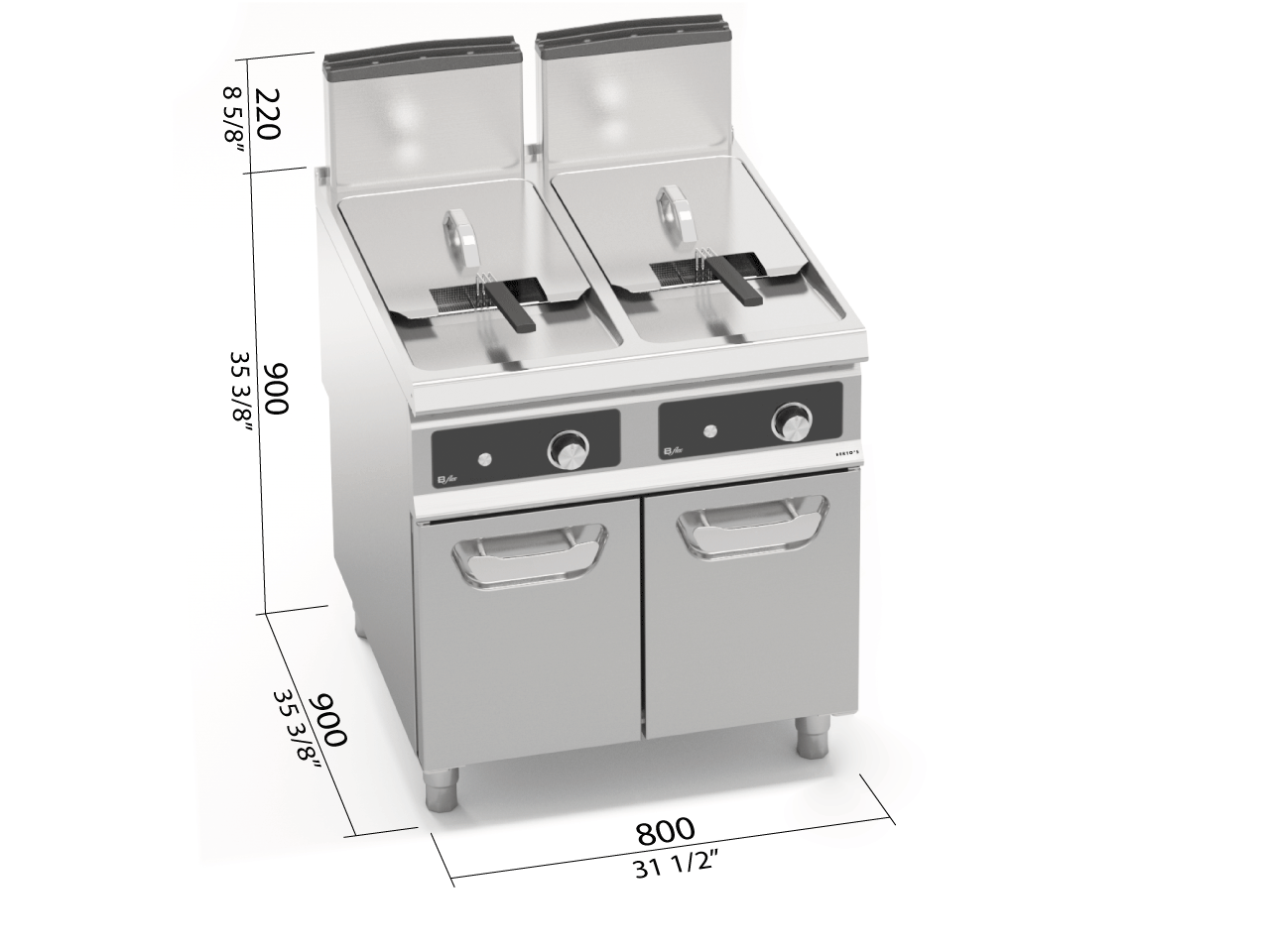

Dimensions

Dimensions
