GRIDDLES - MAXIMA 900

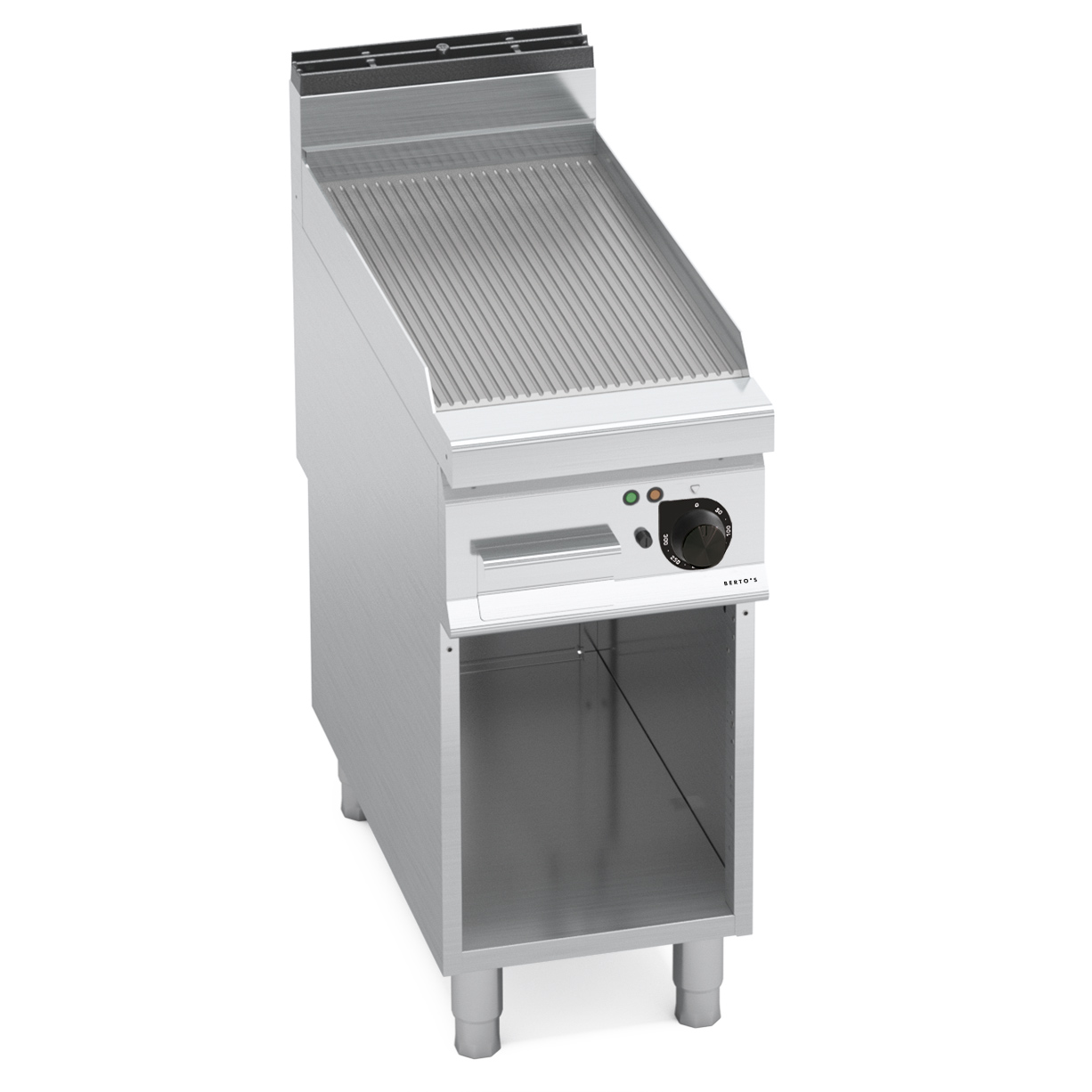

RIBBED ELECTRIC GRIDDLES ON CABINET

Model E9FR4M
Code 20403500
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Incoloy stainless steel resistances positioned below the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50 to 270 °C. Power indicator and temperature light. Ribbed satin finish steel plate of high thickness occupying the entire worktop surface splash guard. Slightly inclined cooking surface with a largely sized drain hole and conveyor to a proper container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 5.7
Electrical voltage 380-415 V3N
Measurements
Width 400
Depth 900
Height 900
Weight 71
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 83
Package volume 0.66

Dimensions

Dimensions
