RIBBED ELECTRIC GRIDDLES ON CABINET
Download the image
GRIDDLES - MAXIMA 900

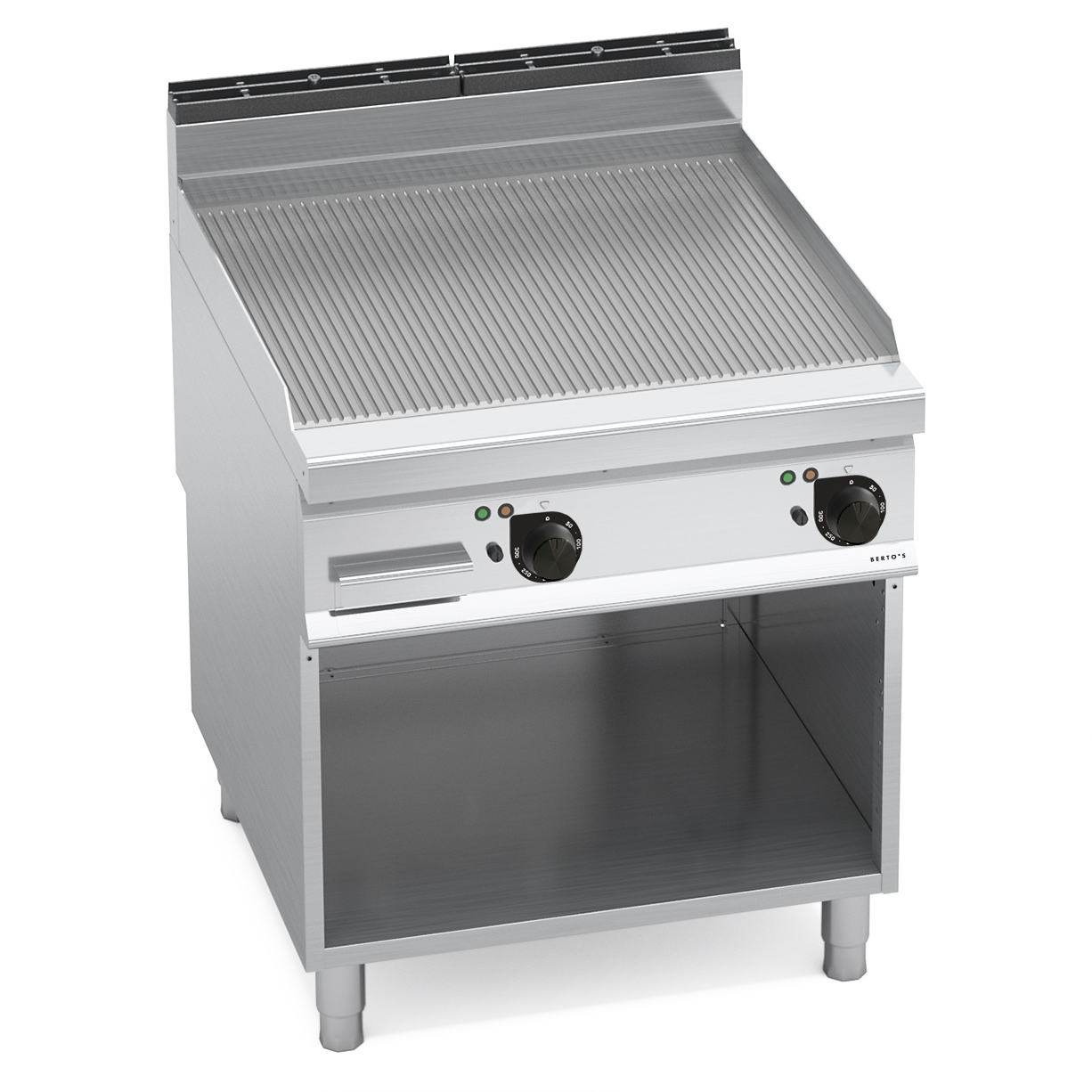

RIBBED ELECTRIC GRIDDLES ON CABINET

Model E9FR8M-2
Code 20404500
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel. Incoloy stainless steel resistances positioned below the cooking plate. Thermostatic control and safety thermostat with manual restart. Temperature regulation from 50 to 270 °C. Power indicator and temperature light. Ribbed plate in thick satin finish steel occupying the entire worktop surface with a flush splashguard. Two zones with separate controls for an independent and perfect regulation of temperature. Slightly inclined cooking surface with a largely sized drain hole and conveyor to a proper container. Large compartment completely in steel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Details
total electric kW 11.4
Electrical voltage 380-415 V3N
Measurements
Width 800
Depth 900
Height 900
Weight 113
Volume 0.65
Package
Package width 865
Package depth 1080
Package height 1180
Package weight 132
Package volume 1.1

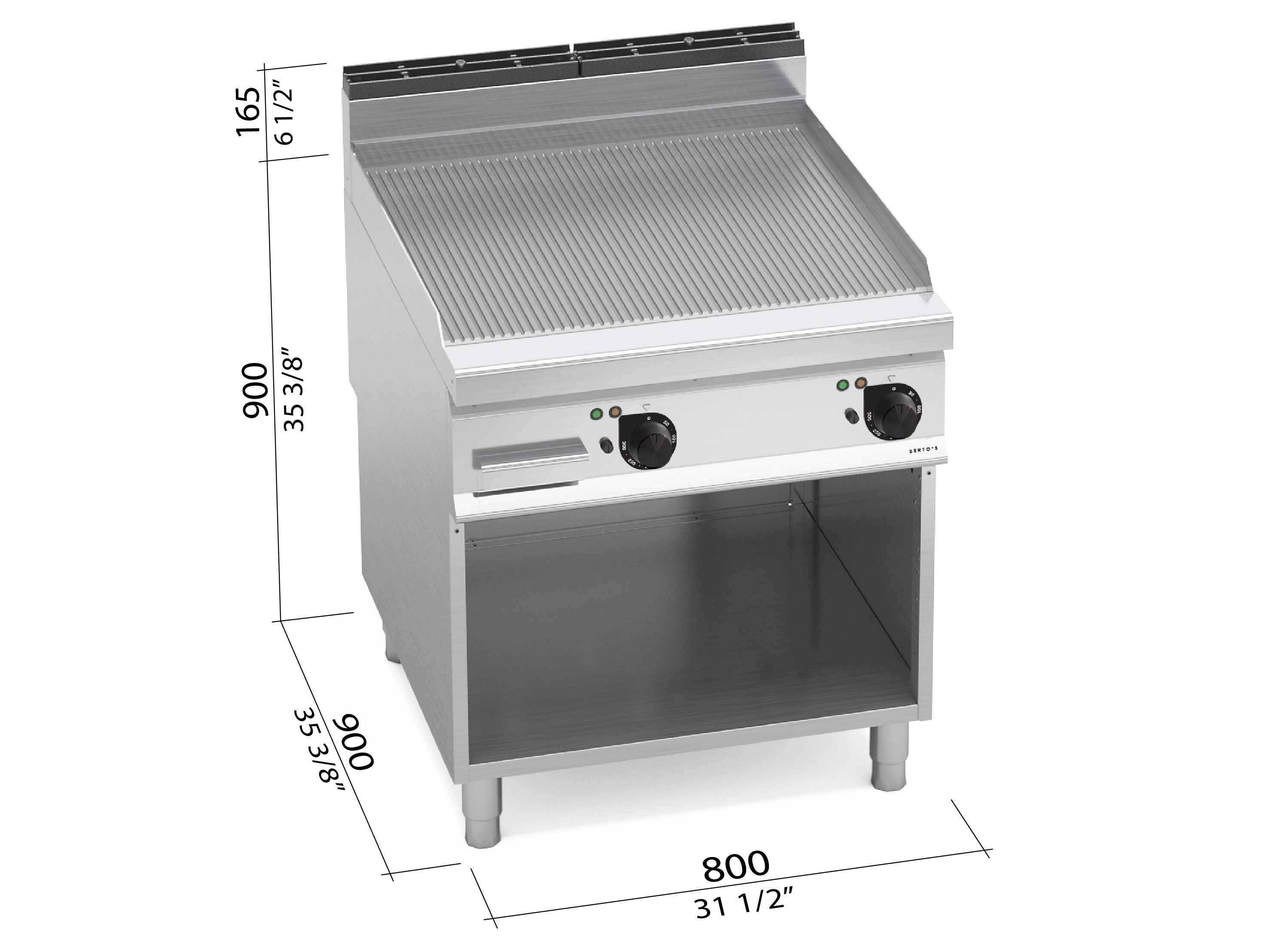

Dimensions

Dimensions
