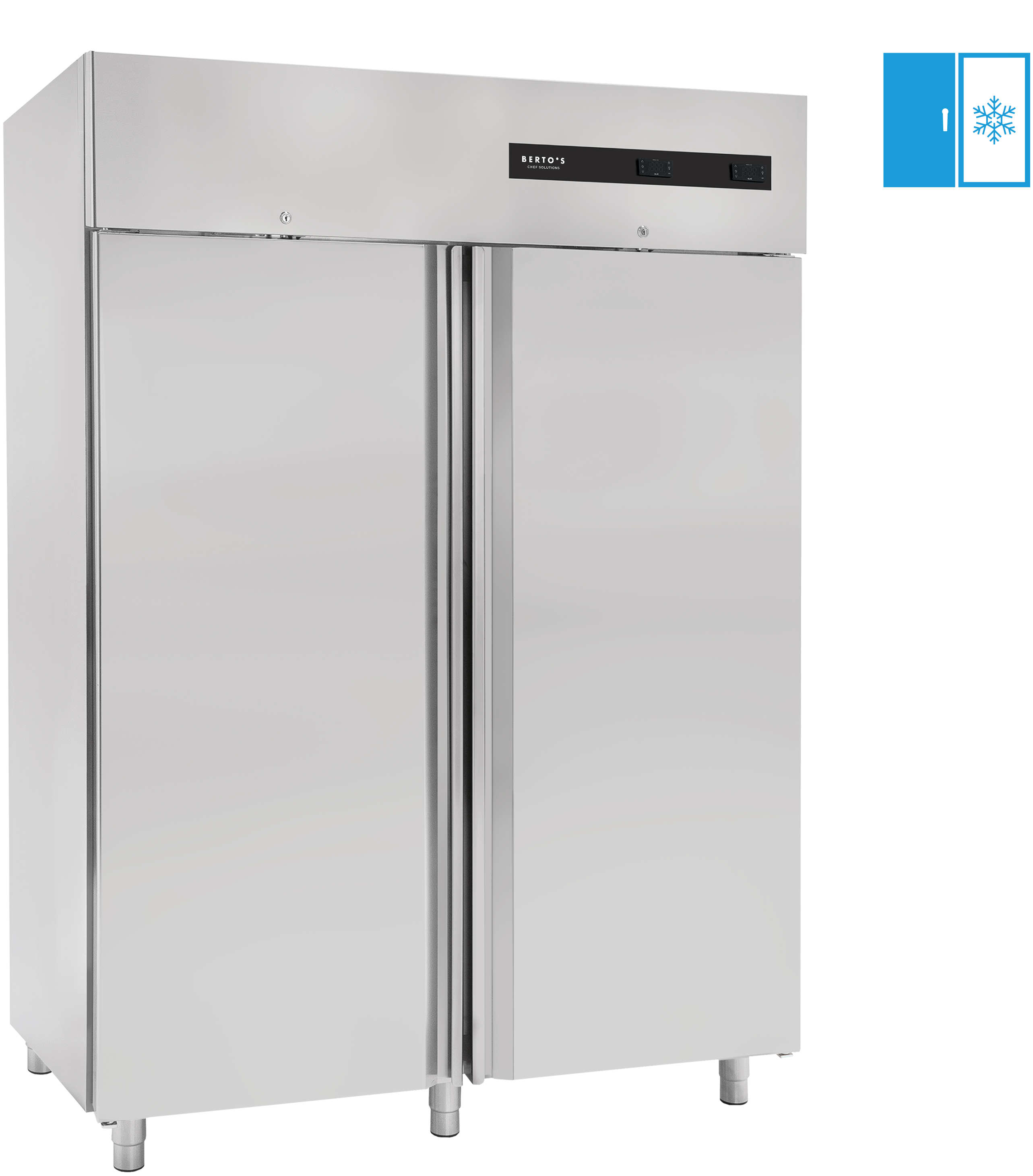

COMBO 1400 REFRIGERATED CABINET -2+8/-18-22°C
Download the image
Refrigerated Cabinets 1400 - Cabinets

COMBO 1400 REFRIGERATED CABINET -2+8/-18-22°C

Model CAB1400TNBT
Code 06220070
  • Combo refrigerated cabinet with two separate compartments.
  • Left compartment -2/+8°C and right compartment -18/-22°C.
  • Two monoblocks units that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting by hot gas.
  • Automatic evaporation of condensate water by means of a heat exchanger in copper.
  • Doors with automatic closing and a fixed opening position of 100°.
  • Hinges with automatic closing system.
  • Easily removable magnetic gaskets.
  • U-shaped guides and adjustable and extractable racks for grids.
  • Rounded internal corners for quick and easy cleaning .
  • Evaporator painted for cataphoresis with high corrosion resistance.
  • 6 GN 2/1 polyethylene grids as standard.
  • Height-adjustable stainless steel feet.
  • Lock with key and light placed under the control panel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -2/+8 • -18-22 °C
Gas R290
Climate class 5
Electrical consumption (kWh/year) 2519
Useful net volume 465+465
Absorbed power (W) 180+365
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 1460
Depth 875
Height 2070
Weight 236
Volume 2.6
Package
Package width 1500
Package depth 900
Package height 2300
Package weight 265
Package volume 3.1

Dimensions

Dimensions
