REFRIGERATED CABINET 1400 FOR MEAT -2/+8°C
Download the image
Refrigerated Cabinets 1400 - Cabinets

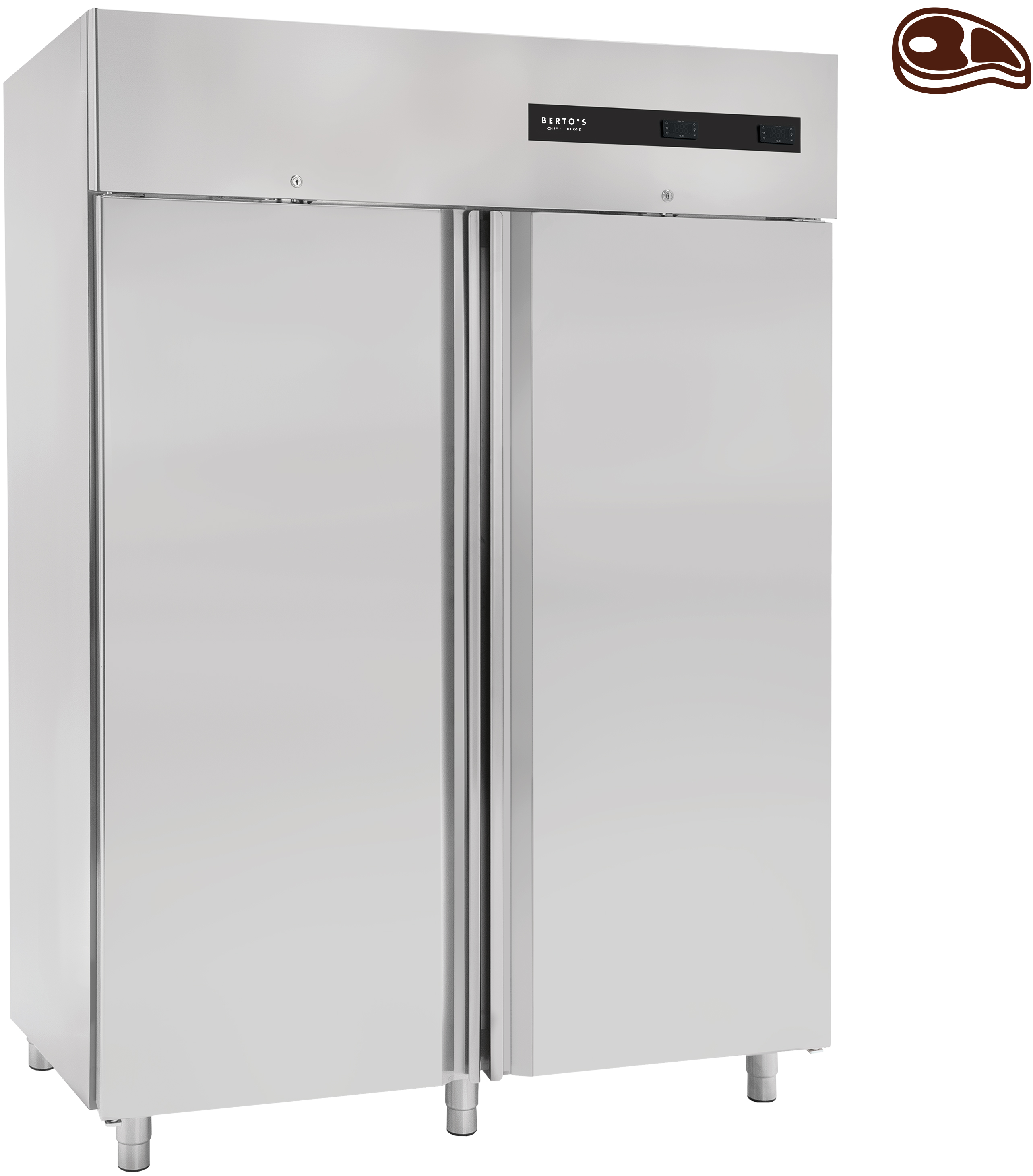

REFRIGERATED CABINET 1400 FOR MEAT -2/+8°C

Model CAB1400-M
Code 06220060
  • Refrigerated cabinet for meat storage.
  • Monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m3.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting by hot gas.
  • Automatic evaporation of condensate water by means of a heat exchanger in copper.
  • Doors with automatic closing and a fixed opening position of 100°.
  • Hinges with automatic closing system.
  • Easily removable magnetic gaskets.
  • U-shaped guides and adjustable and extractable racks for grids.
  • Rounded internal corners for quick and easy cleaning.
  • Evaporator painted for cataphoresis with high corrosion resistance.
  • 6 standard hooks for meat.
  • Height-adjustable stainless steel feet.
  • Lock with key and light placed under the control panel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -2/+8 °C
Gas R290
Energy class C
Climate class 5
Electrical consumption (kWh/year) 949
Useful net volume 930
Absorbed power (W) 272
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 1460
Depth 835
Height 2095
Weight 190
Volume 2.5
Package
Package width 1500
Package depth 900
Package height 2300
Package weight 229
Package volume 3.1

Dimensions

Dimensions
