200 L BOILING PAN WITH INDIRECT STEAM HEATING (PRESSURE TANK)
Download the image
BOILING PANS - MAXIMA 900

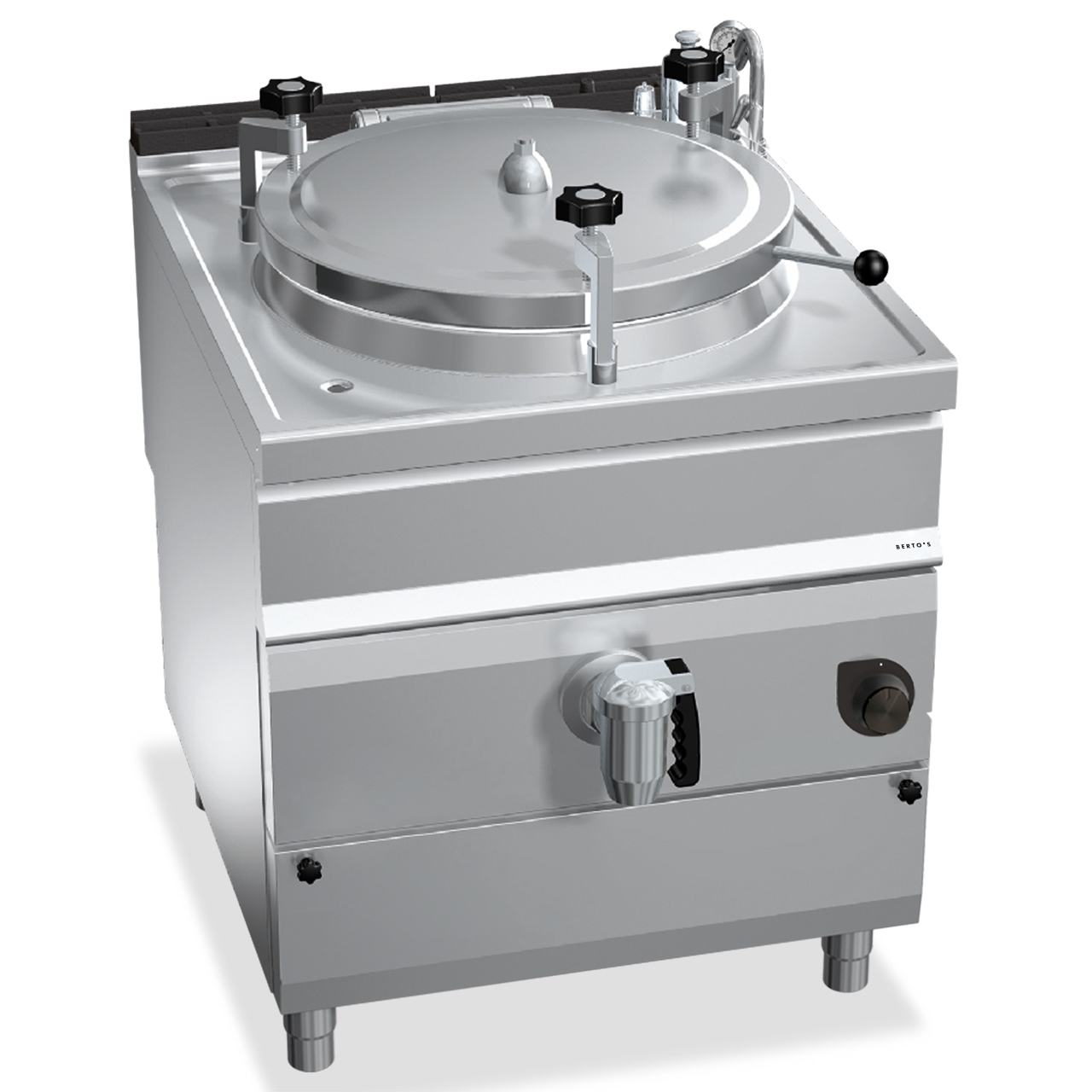

200 L BOILING PAN WITH INDIRECT STEAM HEATING (PRESSURE TANK)

Model 9P20IVA
Code 20848200
Worktop and front panels in AISI 304 stainless steel. AISI 304 stainless steel cooking tank (15/10 thick), AISI 316 stainless steel bottom (20/10 thick). Indirect steam heating. Hot and cold water taps on the worktop with an articulated spout for filling and washing the tank. 2” chromed brass draining tap of with heatless handle. Cooking temperature optimization by means of a valve for the steam flow adjustment. Four screw fixing blocks that can be adjusted manually with a fixed calibration valve of 0,05 bar.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 200
Measurements
Width 1000
Depth 1150
Height 900
Weight 165
Volume 1.03
Package
Package width 1100
Package depth 1360
Package height 1270
Package weight 215
Package volume 1.9

Dimensions

Dimensions
