BOILING PANS - MAXIMA 900

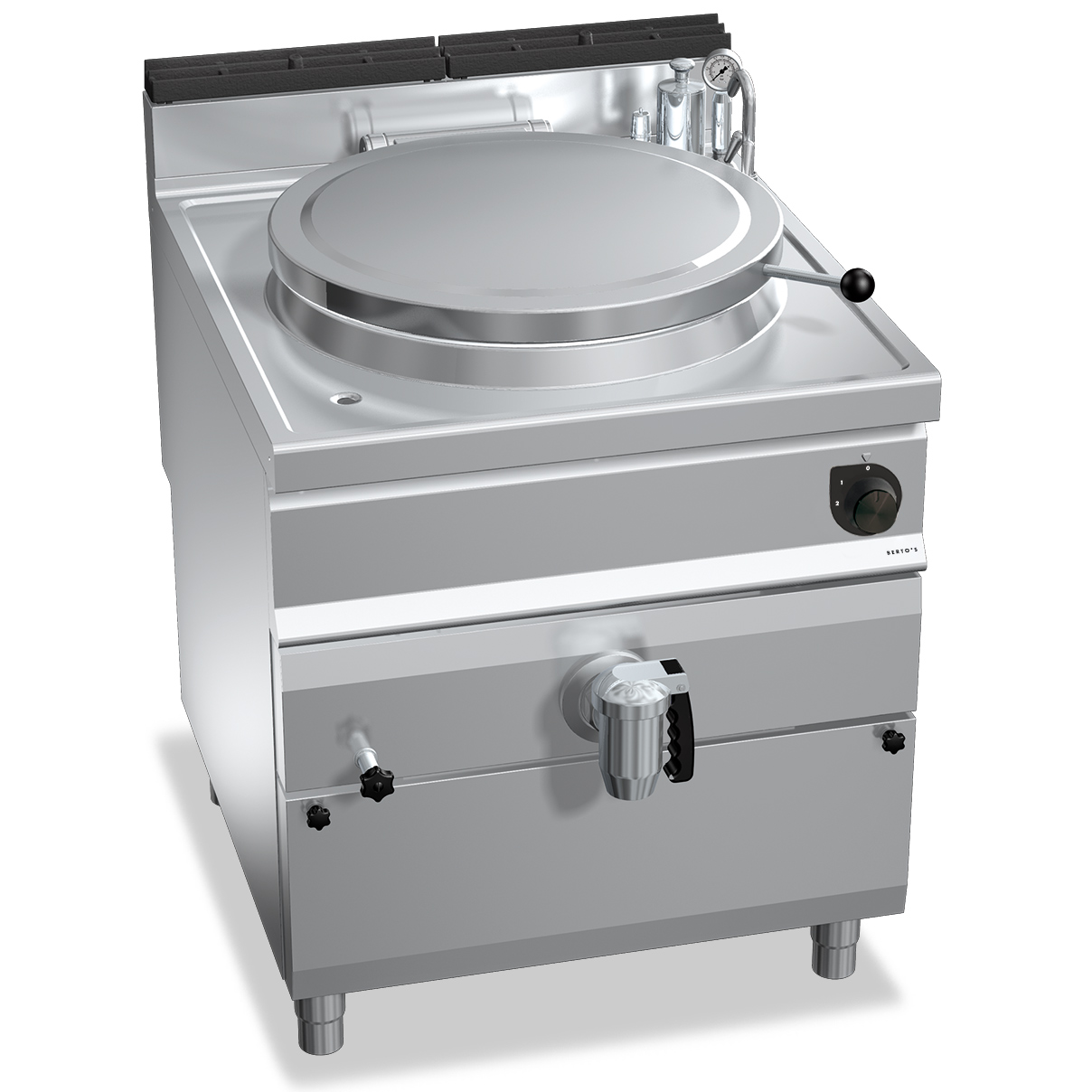

200 L GAS BOILING PAN WITH INDIRECT HEATING

Model G9P20I1
Code 20845001
Worktop and front panels made of AISI 304 stainless steel. Inside made of stainless steel.AISI 304 stainless steel cooking container with 15/10 thickness, AISI 316 stainless steel bottom with 20/10 thickness. Jacket with bottom and walls of AISI 304 stainless steel, bottom with 20/10 thickness, walls with 15/10 thickness. Indirect type heating with low pressure steam (0.5 bar) generated inside the jacket through tubular stainless steel burners with optimized combustion, with thermocouple safety valve and protected pilot flame. Piezoelectric ignition with rubber protection. Hot and cold water taps on the worktop with an articulated spout for filling and washing the container and the jacket. 2” draining tap of chromed brass with athermic handle. Temperature regulation by means of a handle tap to adjust the water level.

Technical specifications

Technical specifications

Tank
L of capacity 200
Details
total gas kW 34.5
total electric kW 0.03
Electrical voltage 220-240 V
Measurements
Width 1000
Depth 1150
Height 900
Weight 223
Volume 1.03
Package
Package width 1100
Package depth 1360
Package height 1270
Package weight 250
Package volume 1.9

Dimensions

Dimensions
