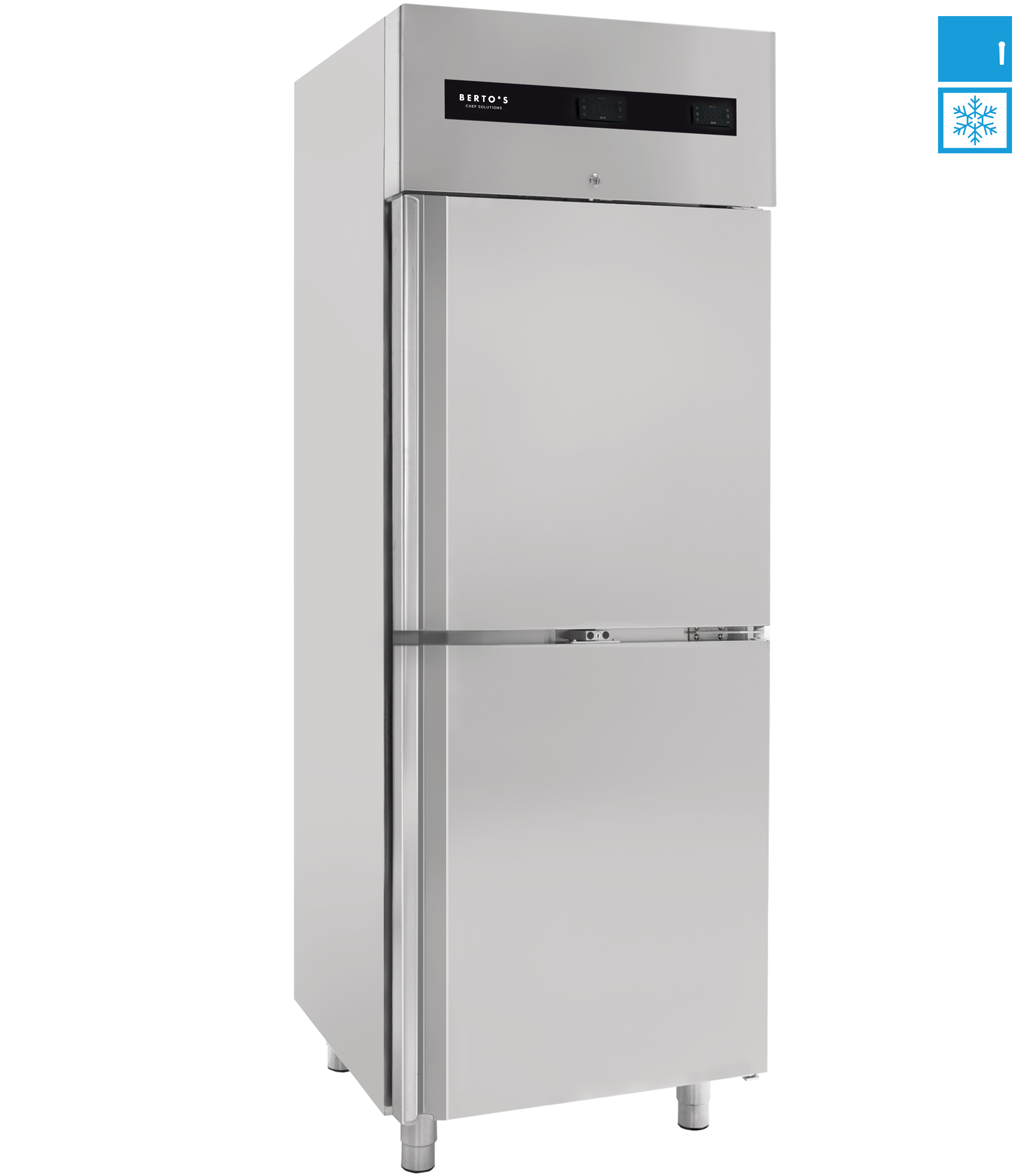

COMBO 700 REFRIGERATED CABINET -2+8/-18-22 °C
Download the image
Refrigerated Cabinets 700 - Cabinets

COMBO 700 REFRIGERATED CABINET -2+8/-18-22 °C

Model CAB700TNBT
Code 06200140
  • Combo refrigerated cabinet with two separate compartments.
  • Compartment -2/+8°C: automatic evaporation of condensate water by means of a heat exchanger in copper.
  • Compartment -18/-22°C: automatic evaporation of condensation water by means of resistance.
  • Forced ventilated refrigeration with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting with a resistance.
  • Doors with automatic closing and a fixed opening position of 100°.
  • Hinges with automatic closing system.
  • Easily removable magnetic gaskets.
  • U-shaped guides and adjustable and extractable racks for grids.
  • Rounded internal corners for quick and easy cleaning .
  • Evaporator painted for cataphoresis with high corrosion resistance.
  • 4 GN 2/1 polyethylene grids as standard.
  • Height-adjustable stainless steel feet.
  • Lock with key and light placed under the control panel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -2/+8 • -18/-22 °C
Gas R290
Climate class 5
Electrical consumption (kWh/year) 2248
Useful net volume 146+148
Absorbed power (W) 200+265
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 730
Depth 875
Height 2070
Weight 154
Volume 1.3
Package
Package width 800
Package depth 900
Package height 2300
Package weight 172
Package volume 1.65

Dimensions

Dimensions
