REFRIGERATED CABINET 700 -18/-22°C
Download the image
Refrigerated Cabinets 700 - Cabinets

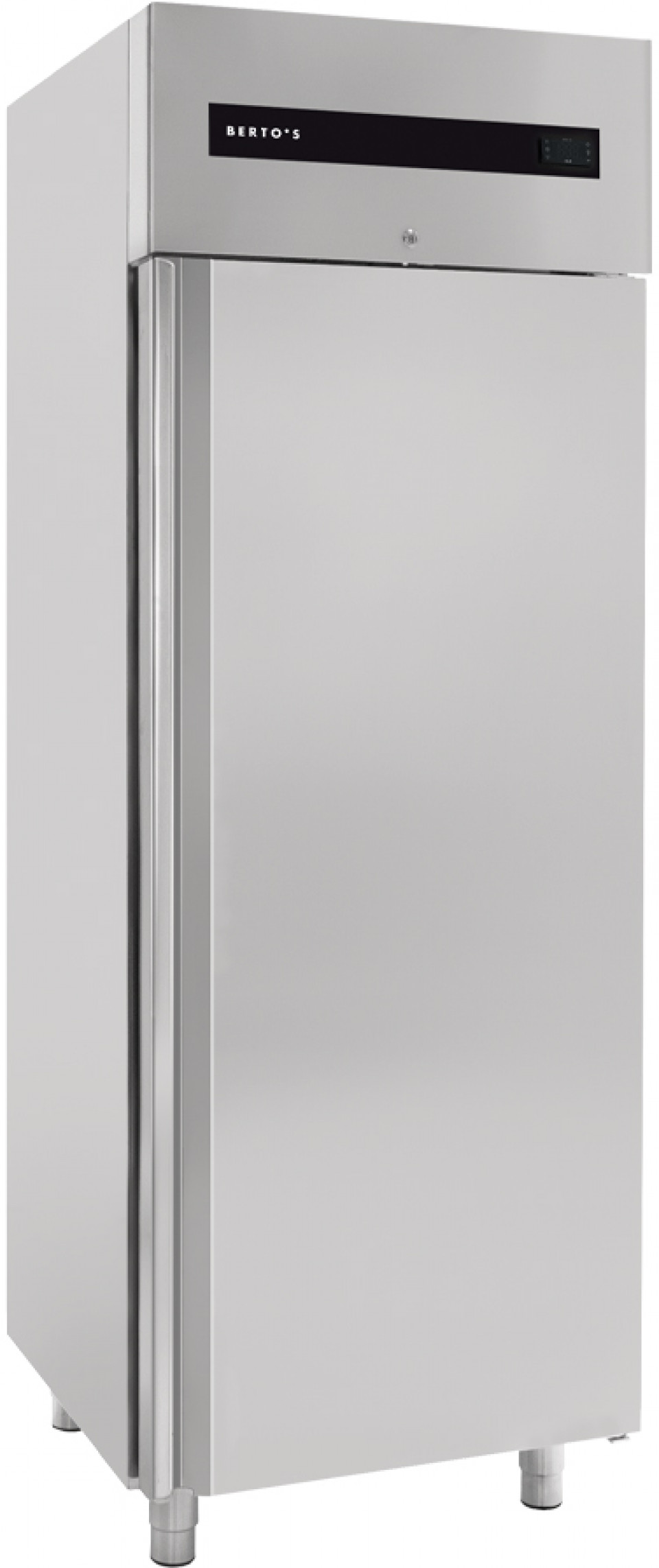

REFRIGERATED CABINET 700 -18/-22°C

Model CAB700BT
Code 06200010
  • Refrigerated cabinet equipped with a monobloc unit that is tropicalized and easily removable from the body, with forced ventilated refrigeration with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m³.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting by hot gas.
  • Automatic evaporation of condensate water by means of a heat exchanger in copper.
  • Rounded internal corners for quick and easy cleaning.
  • 3 GN 2/1 polyethylene grids as standard.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -18/-22 °C
Gas R290
Energy class D
Climate class 5
Electrical consumption (kWh/year) 2117
Useful net volume 465
Dimensions (mm) 730x835x2095
Absorbed power (W) 530
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Package dimensions (mm) 800x900x2300
Net weight (kg) 130
Gross weight (kg) 145
Measurements
Width 730
Depth 835
Height 2095
Weight 130
Volume 1.27
Package
Package width 800
Package depth 900
Package height 2300
Package weight 145
Package volume 1.65

Dimensions

Dimensions
