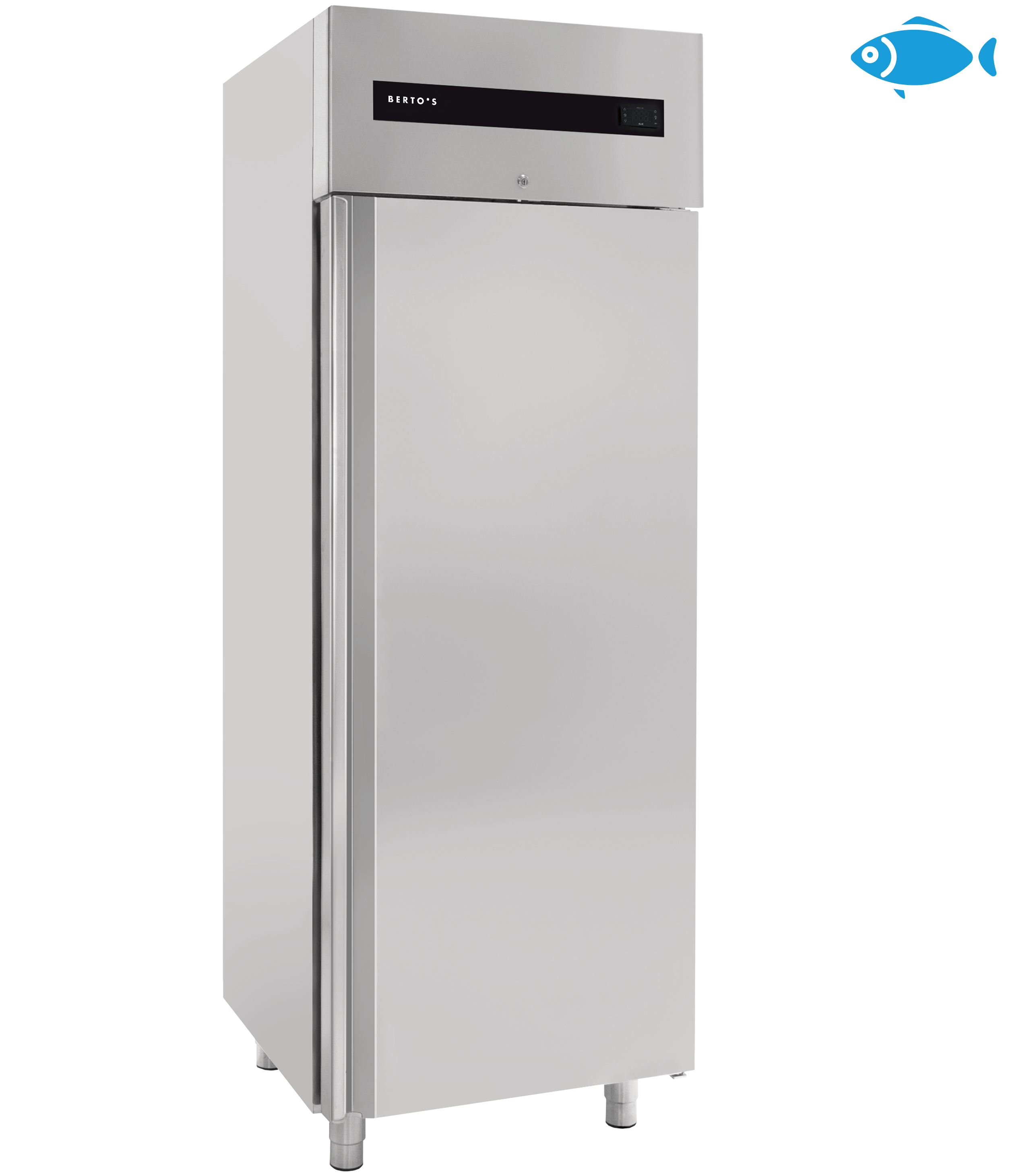

REFRIGERATED CABINET 700 FOR FISH -5/+8°C
Download the image
Refrigerated Cabinets 700 - Cabinets

REFRIGERATED CABINET 700 FOR FISH -5/+8°C

Model CAB700-F
Code 06200130
  • Refrigerated cabinet for fish storage.
  • Static refrigeration by means of a coil integrated in the rear and lateral insulation, operating with R290 gas.
  • Structure entirely in steel. Interior, walls and door in AISI 304 stainless steel.
  • Tested with external working environment temperatures up to 43 °C, efficiency equivalent to climate class 5.
  • 75 mm insulation of high pressure injected HFO polyurethane with a density of 42 kg/m3.
  • Temperature detection by means of a thermistor sensor (NTC probe).
  • Operation control through a digital “touch” panel.
  • Automatic defrosting when the compressor stops.
  • Tray to collect condensation water drained via a central hole with external siphon.
  • Reversible opening doors with automatic closing and a fixed opening position of 100°.
  • Hinges with automatic closing system.
  • Easily removable magnetic gaskets.
  • Rounded internal corners for quick and easy cleaning.
  • Evaporator painted for cataphoresis with high corrosion resistance.
  • 6 pairs of L-shaped stainless steel guides for 600 x 400 mm shelves as standard.
  • Height-adjustable stainless steel feet.
  • Lock with key and light placed under the control panel.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Preservation
Range -5/+8 °C
Gas R290
Climate class 5
Useful net volume 297
Absorbed power (W) 180
Electrical power (Volt/Ph/Hz) 220-240 V / 50 Hz
Measurements
Width 730
Depth 835
Height 2070
Weight 100
Volume 1.26
Package
Package width 800
Package depth 900
Package height 2300
Package weight 122
Package volume 1.65

Dimensions

Dimensions
