GAS FRYER 20+20 LITERS
Download the image
GAS FRYERS - MAXIMA 900

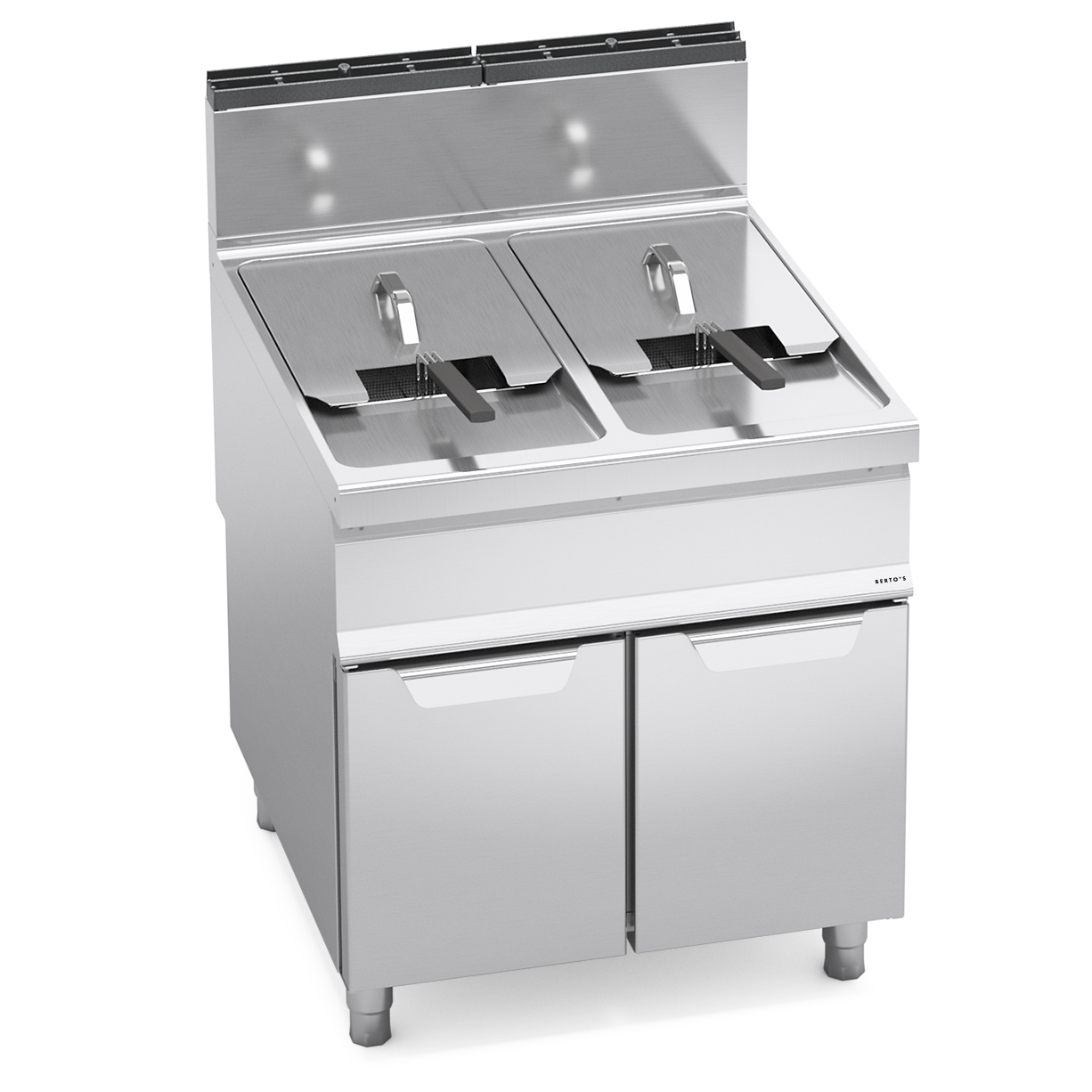

GAS FRYER 20+20 LITERS

Model 9GL20+20M
Code 20480000
Worktop and front panels made of AISI 304 stainless steel. Stainless steel burners with an oval honeycomb section. Oval section large surface heat exchangers positioned directly in the tank to ensure fast and homogeneous heating. Pilot flame and thermocouple safety valve. Piezoelectric ignition button with rubber protection. AISI 304 stainless steel tank with large rounded edges and wide cold zone below the burners to decant the residual. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining. Temperature control through a thermostatic valve from 110 to 190 °C with a more precise temperature detection, thanks to the sensors positioned in the tank. Safety thermostat with manual restart. Spherical draining tap positioned in the compartment controlled by an athermic handle.
More information
Request information
Download technical datasheet
General datasheet

Technical specifications

Technical specifications

Tank
L of capacity 20+20
Details
total gas kW 35

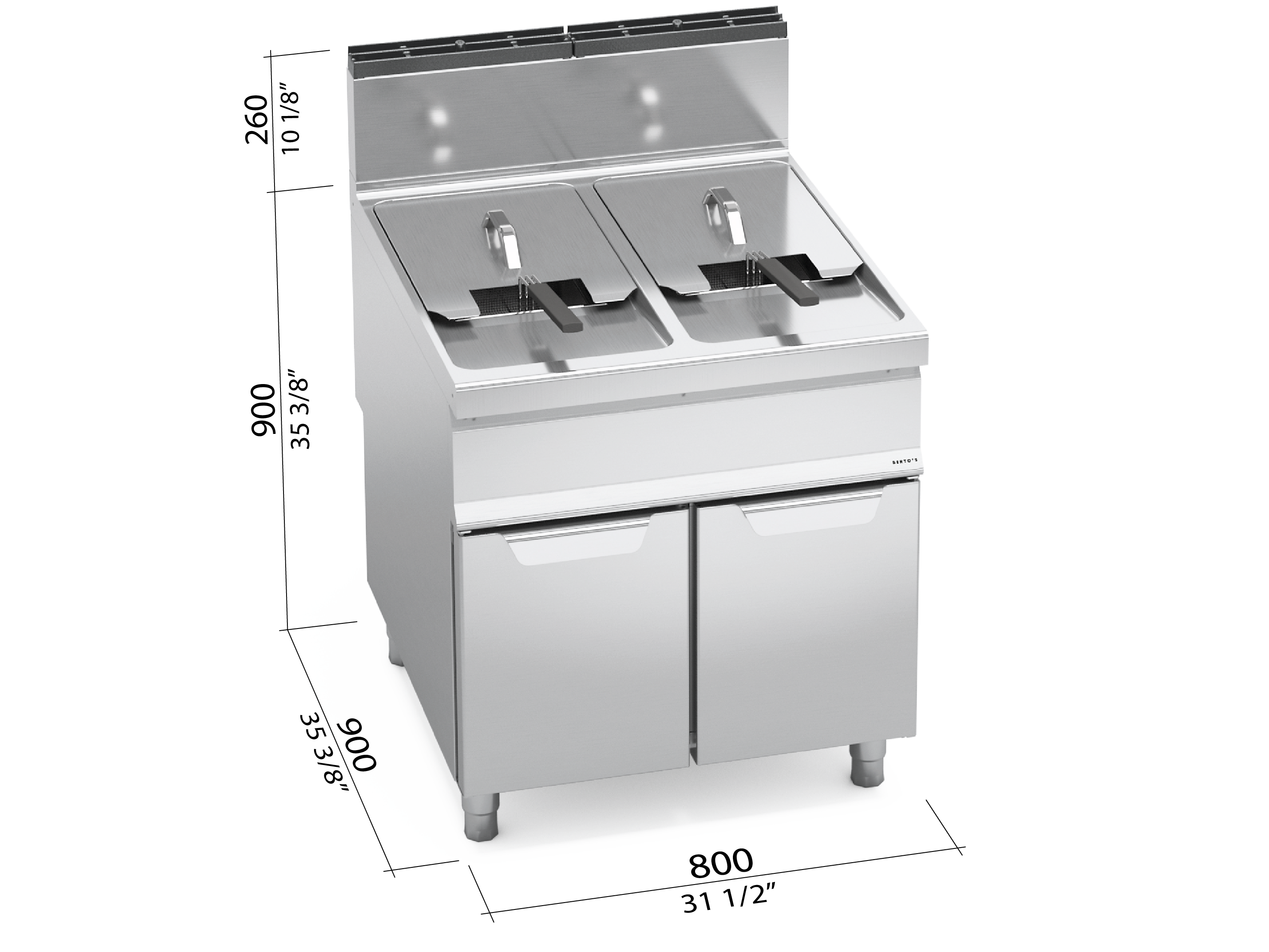

Measurements
Width 800
Depth 900
Height 900
Weight 112
Volume 0.65
Package
Package width 865
Package depth 1070
Package height 1270
Package weight 130
Package volume 1.18

Dimensions

Dimensions
