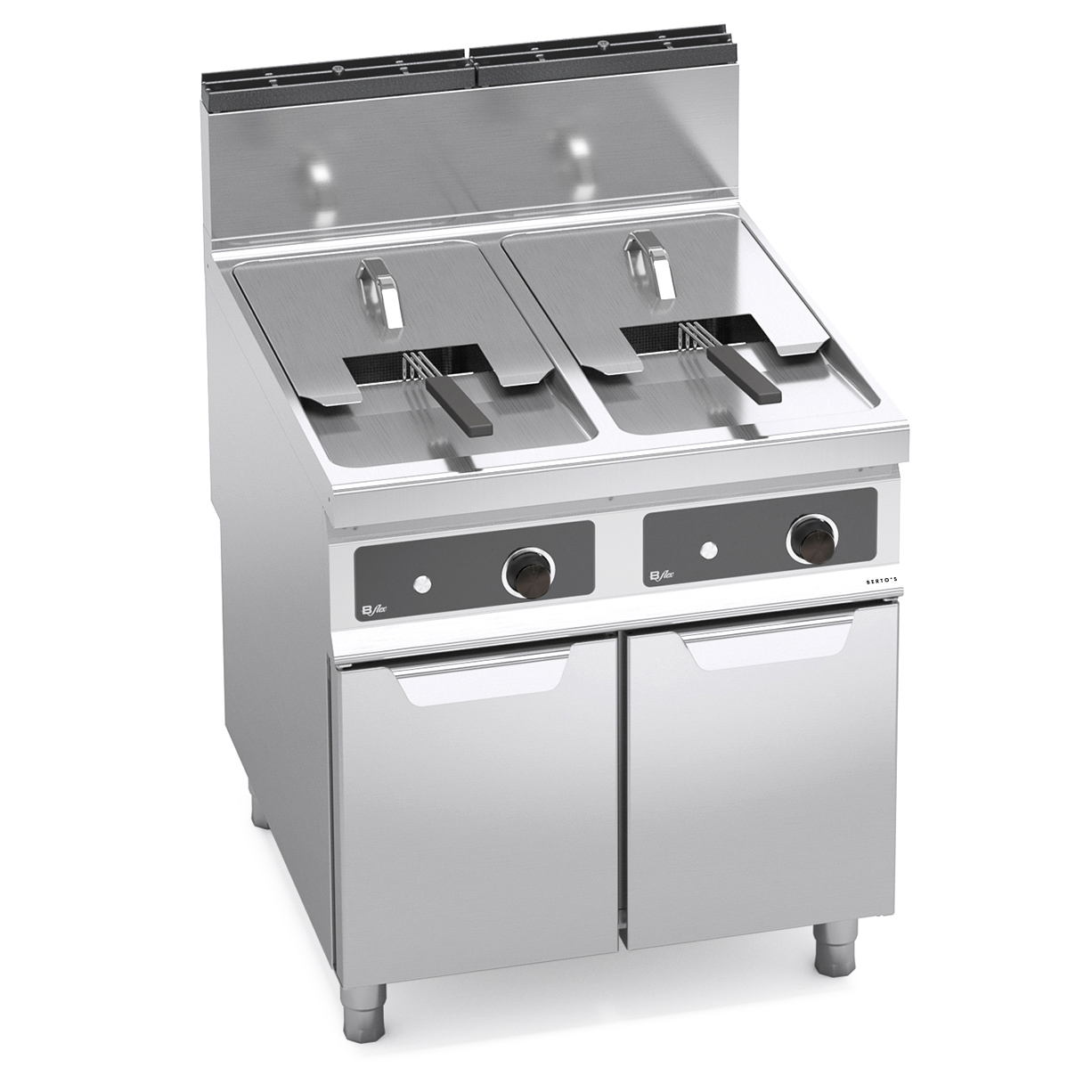

GAS FRYERS - MAXIMA 900

INDIRECT GAS FRYER - SINGLE TANK 18+18 LITERS (BFLEX CONTROLS)

Model 9GL18+18MI-BF
Code 20560220
Work top and front panels of AISI 304 stainless steel.
Pressed tank with a large “cool” zone to collect food residuals. The unit is easy to clean as there are no pipes and the draining hole is a large 1” diameter. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining.
Two stainless steel burners installed out of the tank, controlled by a solenoid valve with a temperature control through an electronic gearcase with the following functions: temperature control from 100 °C to 190 °C, display of the set temperature, program of “melting” and maintaining the temperature at 100 °C for the use of solid fat for frying, self-diagnostic for possible failures.
Safety thermostat with manual restart, pilot flame and safety system with thermocouple.
Spherical draining faucet positioned in the compartment controlled by a heat-proof handle and with steel collection tray. Electric ignition. Adjustable feet.

Technical specifications

Technical specifications

Tank
L of capacity 18+18
Details
total gas kW 28
total electric kW 0.01
Electrical voltage 220-240 V
Measurements
Width 800
Depth 900
Height 900
Weight 114
Volume 0.65
Package
Package width 865
Package depth 1070
Package height 1270
Package weight 132
Package volume 1.18

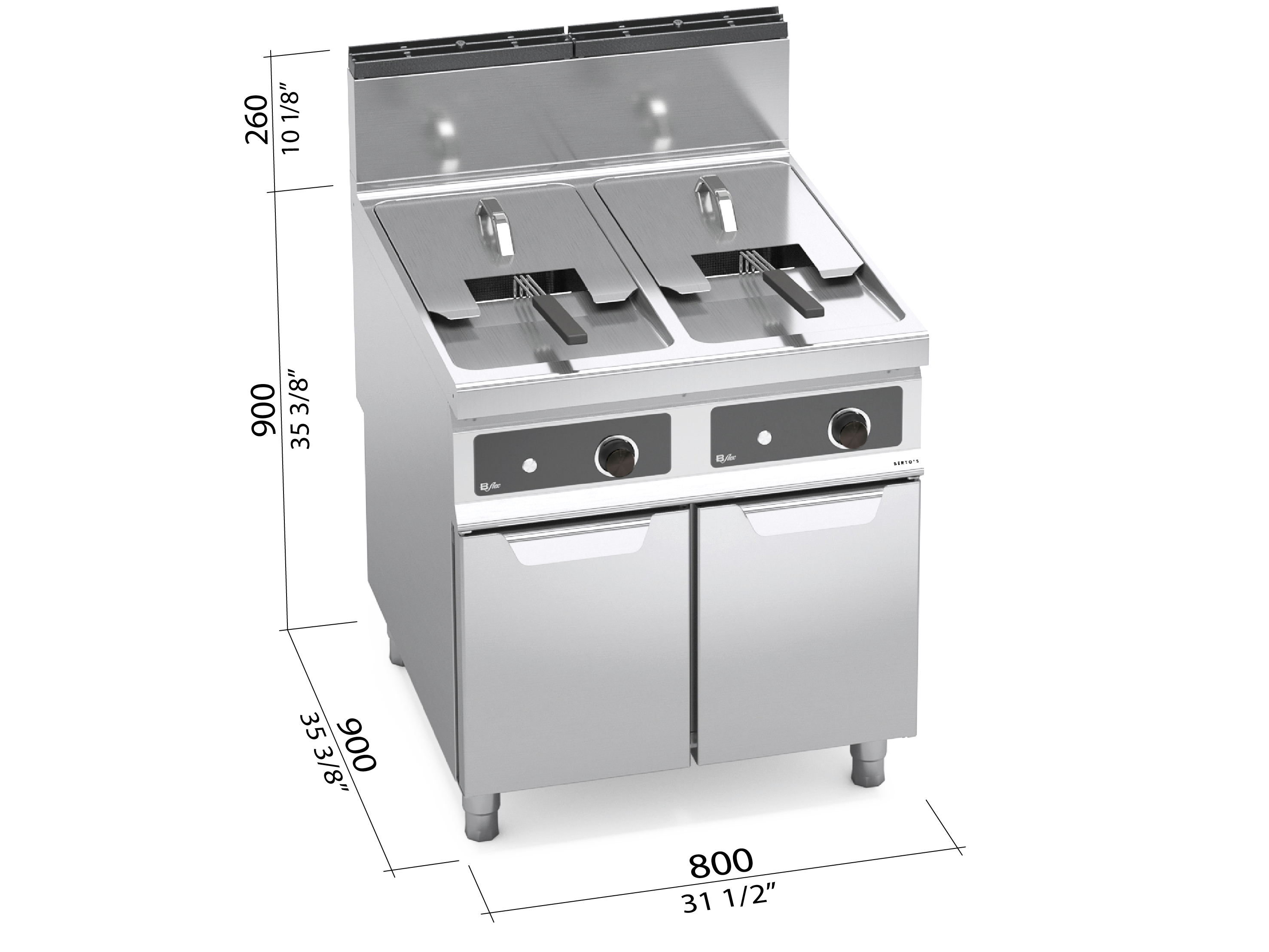

Dimensions

Dimensions
