GAS FRYERS - MAXIMA 900

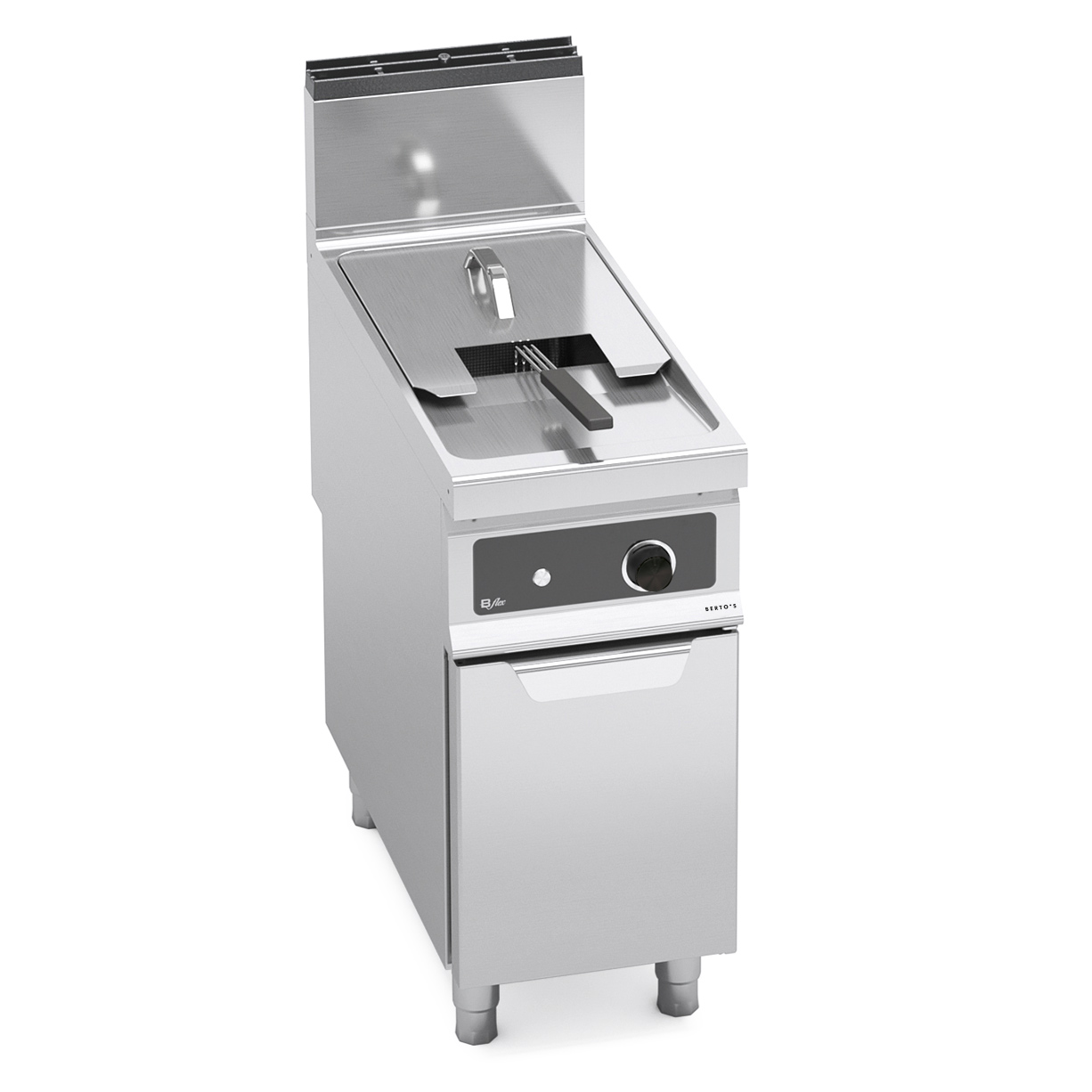

INDIRECT GAS FRYER - SINGLE TANK 18 LITERS (BFLEX CONTROLS)

Model 9GL18MI-BF
Code 20560020
Work top and front panels of AISI 304 stainless steel.
Pressed tank with a large “cool” zone to collect food residuals. The unit is easy to clean as there are no pipes and the draining hole is a large 1” diameter. The top with rounded edges integrates a board to rest baskets; it is slightly inclined to favor oil draining.
Two stainless steel burners installed out of the tank, controlled by a solenoid valve with a temperature control through an electronic gearcase with the following functions: temperature control from 100 °C to 190 °C, display of the set temperature, program of “melting” and maintaining the temperature at 100 °C for the use of solid fat for frying, self-diagnostic for possible failures.
Safety thermostat with manual restart, pilot flame and safety system with thermocouple.
Spherical draining faucet positioned in the compartment controlled by a heat-proof handle and with steel collection tray. Electric ignition. Adjustable feet.

Technical specifications

Technical specifications

Tank
L of capacity 18
Details
total gas kW 14
total electric kW 0.01
Electrical voltage 220-240 V
Measurements
Width 400
Depth 900
Height 900
Weight 61
Volume 0.32
Package
Package width 480
Package depth 1090
Package height 1270
Package weight 74
Package volume 0.66

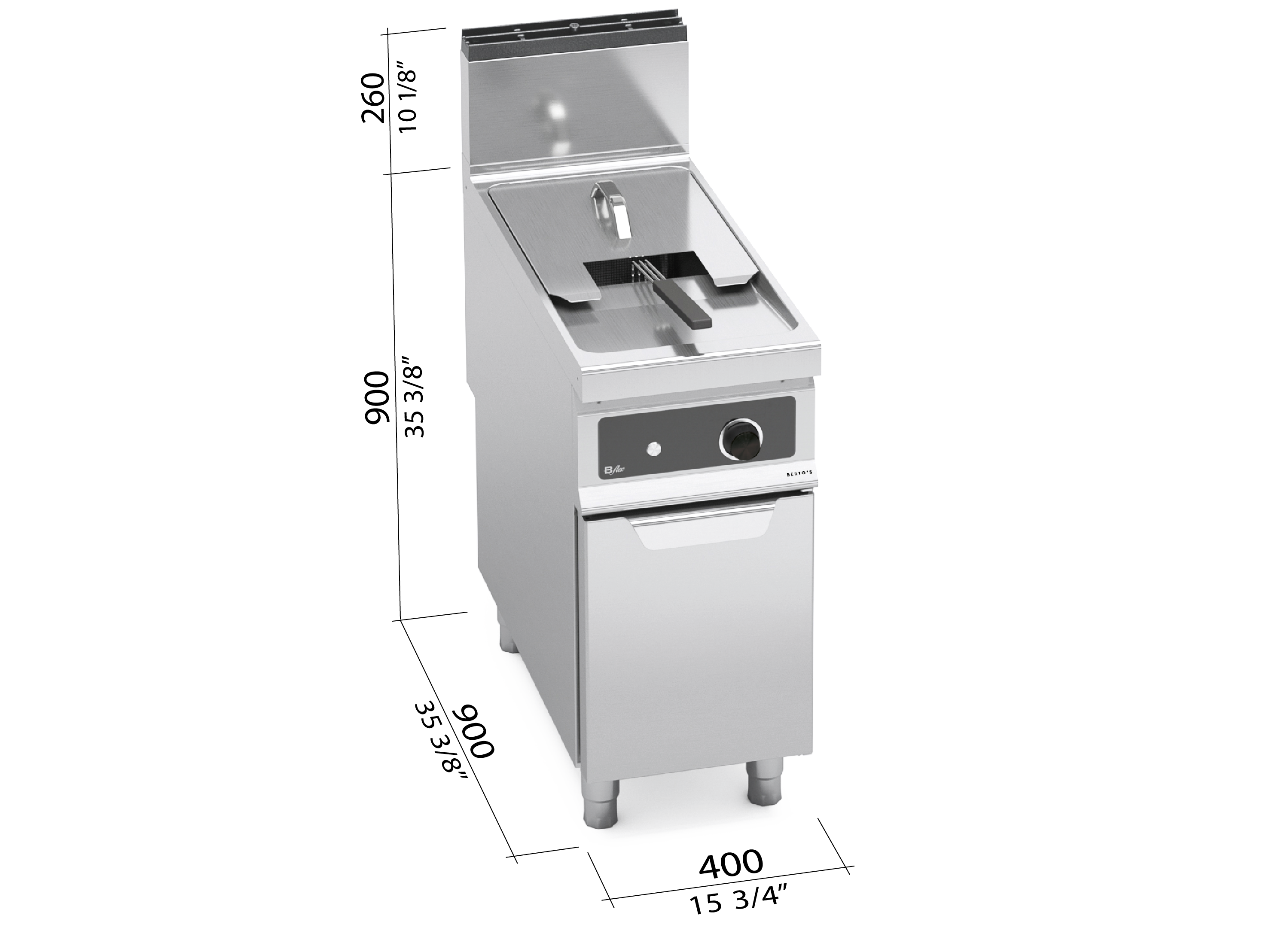

Dimensions

Dimensions
